Black Painted Common Link Stud Link Mooring Chain 38mm-200mm Size

Brand Name:	ASAC
Model Number:	TO BE MENTIONED
MOQ:	10T
Price:	US$2000-3700/T
Payment Terms:	T/T
Supply Ability:	30000T/YEAR

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ABS,BV,CCS,DNV,LR,NK,RINA,RMRS

Products Name:

Mooring Chain

Standard:

ISO9001,API-Q1/ISO14001,OHSAS18001andHSE/ISO50001

Usage:

Mooring Positioning, Withstanding Dynamic Tension

Surface Treatment:

Black Painted

Application:

Marine Engineering And Ships

Color:

Black Painted

Packaging Details:

Plywood pallets/Wooden Box/PP ton bag

Highlight:

Black Painted Common Link

Stud Link Mooring Chain 38mm

Stud Link Mooring Chain 200mm

Product Description

38-200mm Common-Link Mooring Chain with LR, NK, RINA, RMRS Certificates and Black Painted Surface

1.Production Capacity

(1) We have independently designed and manufactured an automatic production line for 26 large and medium-sized anchor chains, with 6 fully automatic continuous heat treatment lines and 4000T anchor chain tensile equipment for testing. These are used for the production of AM2 and AM3 marine anchor chains with diameters ranging from 12.5mm to 240mm, as well as R3, R3S, R4, R4S, R5 and R6 marine mooring chains. We have 7 automated forging production lines that can produce various shapes and specifications of accessories, with an annual output of nearly 30,000 tons. Among them, the 2500T hydraulic machine can produce accessories weighing up to 16T. The 8T die forging production line can produce marine engineering accessories weighing over 6T and with specifications over 240mm, which is at the world's leading level. We can also accept various non-standard product customization to meet the needs of different customers.

(2) Equipment List

Various sizes of chain units:3, 5,6,7,8,9,11, 16total 39 sets

Automatic chain heat treatment furnace: I5 sets

Automatic chain proof test machine:

2000/5000/12000/24000/40000kN total10 sets

Chain shot blasting machine: 8 sets

Bending/shaping machine: 6 sets

Heating furnace: 10 sets

Batch furnace(gas) and electric furnace: I5 sets

Machining equipment: 29 sets

Various types of cranes, big truck crane etc. 30t I5 sets

150 meters deep-water pier: I

Other equipments: over 300 sets

Black Painted Common Link Stud Link Mooring Chain 38mm-200mm Size 0

Black Painted Common Link Stud Link Mooring Chain 38mm-200mm Size 4

Black Painted Common Link Stud Link Mooring Chain 38mm-200mm Size 6

Black Painted Common Link Stud Link Mooring Chain 38mm-200mm Size 8

Black Painted Common Link Stud Link Mooring Chain 38mm-200mm Size 12

2. Manufacturing Progress of Mooring Chain

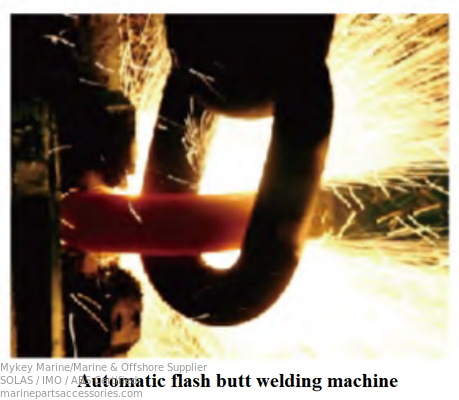

(1) Manufacturing Progress of Stud-Link Mooring Chain

Black Painted Common Link Stud Link Mooring Chain 38mm-200mm Size 13

(2) Manufacturing Progress of Studless-Link Mooring Chain

Black Painted Common Link Stud Link Mooring Chain 38mm-200mm Size 14

3. Quality Inspection Black Painted Common Link Stud Link Mooring Chain 38mm-200mm Size 15

Black Painted Common Link Stud Link Mooring Chain 38mm-200mm Size 16

Black Painted Common Link Stud Link Mooring Chain 38mm-200mm Size 18

4. Product Grade and Mechanical Properties

Grade/Size/Certificate of mooring chain & Accessories
Product	Stud mooring chain	Studless mooring chain	Mooring Chain Accessories
Grade	R3,R3S,R4,R4S,R5,R6	R3,R3S,R4,R4S,R5,R6	R3,R3S,R4,R4S,R5,R6
Size	38-200mm	38-200mm	187mm
Certificate	ABS,BV,CCS,DNV,LR,NK,RINA,RMRS		ABS,BV,CCS,DNV,LR,NK,RMRS

Mechanical Properties of Mooring Chain
Grade	Yield Point (N/mm²,min)	Tensile Strength (N/mm²,min)	Elongation (%,min)	Reduction Of Area (%,min)	Charpy V-notch
					Test Temperature (℃)	Impact(J,min)
						Base Part	Weld Part
API Spec. 2F(ORQ)	---	641	17	40	0	58	49
					-15	40	36
ABS/RQ3 DNV/NVR3	410	690	17	50	0	60	50
					-20	40	30
ABS/RQ3S DNV/NVR3S	490	770	15	50	0	65	53
					-20	45	33
ABS/RQ4 DNV/NVR4	580	860	12	50	-20	50	36
ABS/R4S DNV/NVR4S	700	960	12	50	-20	56	40
ABS/R5 DNV/NVR5	760	1000	12	50	-20	58	42
R6	900	1100	12	50	-20	60	44

5.Weight

Weight(KG)
Chain Diameter (mm)	Stud Link Chain kg/27.5m	Common Link	Enlarged Link	End Link	Kenter Shackle	Joining Shackle	End Shackle	Swivel	Anchor Swivel Shackle A.SW.S(a)	Anchor Swivel Shackle A.SW.S(b)
12.5	105	0.19	0.26	0.26	0.45	0.48	1.1	0.8	6.4	1.8
14	142	0.26	0.39	0.32	0.6	0.67	1.5	1.05	9	2.5
16	175	0.35	0.49	0.57	0.65	0.95	1.52	1.34	14	3.2
17.5	197	0.50	0.66	0.67	0.88	1.34	2.05	1.73	14	4.9
19	245	0.66	0.85	1.06	1.13	1.84	2.41	2.17	17	6.3
20.5	268	0.80	1.02	1.06	1.36	2.2	3.25	2.2	17	7.9
22	324	1.04	1.30	1.58	1.64	2.66	3.95	3.5	22	9.8
24	370	1.30	1.65	1.84	2.13	3.4	5.12	4.53	22	12.8
26	431	1.64	2.03	2.74	2.58	4.5	6.7	5.79	43	16.2
28	496	2.04	2.48	3.23	3.3	5.19	8.1	7.25	43	20.3
30	563	2.48	3.58	3.74	4.15	6.32	10	9	98	24.9
32	635	2.98	4.45	4.74	5.06	8.24	11.77	10.03	98	30.2
34	712	3.54	5.21	5.54	6.01	9.56	14.2	12.75	118	36.3
36	800	4.23	5.99	6.95	6.89	11.31	16.55	14.96		43.1
38	888	4.96	6.15	7.66	8.4	13.45	19.55	17.44		51
40	1033	6.04	8.01	8.2	9.63	15.5	22.8	20.25	128	59
42	1084	6.65	9.04	9.92	\| Ⅱ	18.1	26	25.4	128	68
44	1197	7.73	10.25	11.42	12.45	20.25	29.71	26.6	160	79
46	1310	8.80	11.54	13.92	14.1	23.33	34.3	30.67		90
48	1438	10.06	14.44	15.67	16.7	27.5	38.0	35.0		102
50	1546	11.28	16.06	17.7	19.0	31.6	45.2	40.5	289	115
52	1661	12.68	17.85	18.97	20.3	34.0	50.9	49.5	289	130
54	1791	14.10	19.60	20.84	23.7	38.5	53.8	50.5	300	145
56	1926	15.66	21.69	23.55	26.7	46.0	63.0	55.0	300	162
58	2086	17.83	24.0	25.95	27.2	46.8	70.0	64.6	330	180
60	2249	19.90	26.0	28.48	27.7	51.0	77.5	71.3		199
62	2361	21.66	28.63	30.81	35	59.2	86.3	77.7		220
64	2516	23.51	31.13	32.7	38.4	62.7	96.3	83.3	458	242
66	2676	25.98	35.0	38.4	42.3	75	99.6	88.7		265
68	2885	28.60	39.72	39.5	46.0	76.7	102.6	100.0		290
70	3010	31.00	43.33	43.8	48.7	90	126.2	107.8	522	317
73	3274	35.20	48.30	49	53.0	95	138.2	125.6	522	359
76	3548	39.90	53.6	57.1	60.7	107	146	143.8	522	405
78	3737	43.00	59.6	62.3	65.5	116	164	154	815	438
81	4030	48.60	66.0	67.4	75	130	190	188	815	491
84	4334	53.50	69.0	74.4	90	136	212	198	1007	547
87	4650	58.90	81.1	84.6	96	160	237	215	1007	608
90	4976	66.35	88.0	91	108	176	245	238	1300	673
92	5199	71.22	97.5	100	114	196	257	252		781
95	5544	78.08	101	109	128	215	300	269		833
97	5780	83.77	107	117	133	222	335	301	1610	842
100	6143	89.03	120	127	146	252	353	330		923
102	6398	95.50	130	134	158	267	378	344		980
105	6773	104.20	139	150	160	294	385	387	1827	1069
107	7033	I11.63	148	160	180	305	420	428	1827	1131
I11	7569	124.08	161	171	198	325	463	448	2022	1262
114	7983	135.31	168	190	204	345	485	460		1368
117	8409	147.53	177	209	225	365	528	475		1478
120	8863	155.49	204	229	250	400	570	547	2336	1595
122	9143	166.24	218	234	263	425	602	649	2336	1676
124	9399	170.90	228	246	290	465	632	680	2636	1760
127	9830	185.47	244	269	312	499	679	729	2636	1891
130	10300	194.34	264	293	333	536	729	784	2960	2028
132	10620	208.24	270	298	350	561	762	820		2123
137	11439	233.45	298	329	392	627	852	912	3309	2374
142	12289	261.47	333	383	436	698	949	1012	3685	2643
147	13170	297.67	377	419	485	774	1053	1124	4088	2932
152	14081	312.91	416	458	537	856	1164	1238	4520	3242
157	15023	349.37	450	499	591	943	1283	1360	4980	3572
162	15995	390.12	496	542	651	1036	1410	1490	5470	3925

6. Testing Load Of Mooring Chain And Accessories

Testing Load Of Mooring Chain And Accessories (MS Units)
Diameter Of Chain	C/EVE/S		C/ELE	S	C/EL/E/S	C/EL/E	S	C/ELE/S	C/EL/E	S	C/ELE/S	C/ELE	S	C/ELE/S
	RQ3		R3S			R4			R4S			R5
	Tensile load PL	Breaking load BL	Tensile load PL	Tensile load PL	Breaking load BL	Tensile load PL	Tensile load PL	Breaking load BL	Tensile load PL	Tensile load PL	Breaking load BL	Tensile load PL	Tensile load PL	Breaking load BL
mm	KN	KN	KN	KN	KN	KN	KN	KN	KN	KN	KN	KN	KN	KN
50	1560	2230	1800	1740	2490	2160	1920	2740	2400	2130	3040	2510	2230	3200
52	1681	2403	1940	1875	2683	2327	2069	2952	2586	2295	3275	2704	2403	3448
54	1806	2581	2083	2014	2882	2500	2222	3171	2777	2465	3518	2905	2581	3703
56	1934	2764	2231	2157	3086	2677	2380	3396	2975	2640	3768	3111	2764	3966
58	2066	2953	2384	2304	3297	2860	2543	3628	3178	2821	4026	3324	2953	4238
60	2202	3147	2541	2456	3514	3049	2710	3867	3387	3006	4291	3543	3147	4516
62	2342	3347	2702	2612	3737	3242	2882	4112	3602	3197	4563	3767	3347	4803
64	2485	3552	2867	2771	3966	3440	3058	4364	3823	3393	4842	3998	3552	5097
66	2632	3762	3036	2935	4200	3644	3239	4622	4048	3593	5128	4234	3762	5398
68	2782	3977	3210	3103	4440	3852	3424	4886	4280	3798	5421	4476	3977	5706
70	2936	4196	3387	3274	4686	4065	3613	5156	4516	4008	5721	4723	4196	6022
73	3173	4535	3661	3539	5064	4393	3905	5572	4881	4332	6182	5105	4535	6508
76	3417	4885	3943	3812	5454	4731	4206	6002	5257	4666	6659	5498	4885	7009
78	3584	5123	4136	3998	5721	4963	4411	6295	5514	4894	6984	5767	5124	7352
8l	3841	5490	4432	4284	6130	5318	4727	6746	5909	5244	7484	6179	5490	7878
84	4104	5866	4735	4578	6550	5682	5051	7208	6314	5603	7997	6603	5866	8418
87	4374	6252	5047	4879	6981	6056	5383	7682	6729	5972	8523	7037	6252	8972
90	4651	6648	5366	5187	7423	6439	5724	8168	7154	6350	9062	7482	6648	9539
92	4838	6916	5583	5397	7723	6699	d	8498	7443	6606	9428	7785	6916	9924
95	5125	7326	5914	5717	8180	7096	6308	9002	7885	6998	9987	8246	7326	10513
97	5320	7604	6138	5934	8491	7366	6547	9343	8184	7263	10366	8559	7604	10912
100	5616	8028	6480	6264	8964	7776	6912	9864	8640	7668	10944	9036	8028	11520
102	5817	8316	6712	6489	9285	8055	7160	10217	8950	7943	11336	9360	8316	11933
105	6123	8753	7065	6830	9774	8478	7536	10755	9420	8361	11932	9852	8753	12560
107	6330	9049	7304	7061	10104	8765	7791	11118	9739	8643	12335	10185	9049	12985
II1	6751	9650	7789	7530	10775	9347	8309	11857	10386	9217	13155	10862	9650	13847
114	7072	10109	8160	7888	11288	9792	8704	12421	10880	9656	13781	11378	10109	14506
117	7398	10575	8536	8251	11808	10243	9105	12993	11381	10101	14416	11903	10575	15174
120	7728	11047	8917	8620	12335	10700	9511	13573	11889	10552	15059	12434	11047	15852
122	7951	11365	9174	8868	12690	11008	9785	13964	12232	10856	15493	12792	11365	16309
124	8175	11686	9433	9118	13048	11319	10062	14358	12577	11162	15931	13153	11686	16769
127	8515	12172	9825	9498	13591	I1790	10480	14956	13100	11626	16593	13700	12172	17466
130	8859	12663	10222	9881	14140	12266	10903	15559	13629	12095	17263	14253	12663	18171
132	9090	12994	10488	10139	14509	12586	11188	15965	13984	12411	17713	14625	12994	18646
137	9674	13829	I1163	10791	15442	13395	11907	16992	14884	13209	18852	15566	13829	19845
142	10268	14677	11847	11452	16388	14217	12637	18034	15796	14019	20008	16520	14677	21061
147	10869	15536	12541	12123	17348	15049	13377	19089	16721	14840	21179	17487	15536	22294
152	11476	16405	13242	12800	18318	15890	14125	20157	17656	15669	22364	18465	16405	23541
157	12090	17282	13950	13485	19297	16740	14880	21234	18600	16507	23559	19452	17282	24799
162	12708	18166	14664	14175	20284	17596	15641	22321	19551	17352	24765	20447	18166	26068
165	13082	18700	15094	14591	20880	18113	16100	22976	20125	17861	25492	21048	18700	26833
168	13456	19235	15526	15008	21477	18631	16561	23634	20701	18372	26221	21650	19235	27601
171	13831	19771	15959	15427	22076	19151	17023	24293	21279	18885	26953	22254	19771	28371
175	14333	20489	16538	15987	22877	19845	17640	25174	22050	19570	27930	23061	20489	29400
178	14710	21027	16973	16407	23479	20367	18104	25836	22630	20085	28665	23668	21027	30174
180	14961	21387	17263	16688	23881	20716	18414	26278	23017	20428	29155	24072	21387	30690
182	LOAD(kN)			R3 STUDCHAIN		R3S STUDCHAIN			R4 STUDCHAIN		R45 STUDCHAIN		R5 STUDCHAIN
185	Tensile loadPL			0.0156d²(44-0.08d)		0.0180d²(44-0.08d)			0.0216d²(44-0.08d)		0.0240d²(44-0.08d)		0.0251 d(44-0.08d)
188	Breaking loadBL			0.0223d²(44-0.08d)		0.0249d(44-0.08d)			0.0274d²(44-0.08d)		0.0304d²(44-0.08d)		0.0320d(44-0.08d)
191	LOAD(kN)			R3 STUDLESSCHAIN		R3S STUDLESS CHAIN			R4 STUDLESS CHAIN		R4S STUDLESS CHAIN		R5 STUDLESSCHAIN
194	Tensile loadPL			0.0156d²(44-0.08d)		0.0174d²(44-0.08d)			0.0192d²(44-0.08d)		0.0213d²(44-0.08d)		0.0223d²(44-0.08d)
197	Breaking loadBL			0.0223d²(44-0.08d)		0.0249d²(44-0.08d)			0.0274d²(44-0.08d)		0.0304d²(44-0.08d)		0.0320d²(44-0.08d)
200	Breaking loadBL			0.0223d²(44-0.08d)		0.0249d²(44-0.08d)			0.0274d²(44-0.08d)		0.0304d²(44-0.08d)		0.0320d²(44-0.08d)
The data sheet refer to the DNV specification version, and the real loading data shall subject to the formulation.

7. Joining Forms(K.S) to Anchor and Locker Ends

8. ANCHOR CHAIN ANDACCESSORIES APPROVAL CERTIFICATES

Tags:

Marine Ventilator

Marine Ventilation Fan

Marine Anodes

Marine Cable

Marine Power Cable

Marine Control Cable

Marine Communication Cable

Marine Paint

Marine Propellers

Marine Chains

Anchor Chain

Mooring Chain

Chafe Chain

Marine Outfitting

Marine Doors

Marine Windows

Marine Ladder

Marine Bollard

Steel Manhole Cover

Hatch Cover

Fairlead Roller

Boat Chain Stopper

Marine Pressure Washer

Pneumatic Rubber Fender

Marine Safety

Marine Ventilator

Marine Ventilation Fan

Marine Anodes

Marine Cable

Marine Power Cable

Marine Control Cable

Marine Communication Cable

Marine Paint

Marine Propellers

Marine Chains

Anchor Chain

Mooring Chain

Chafe Chain

Marine Outfitting

Marine Doors

Marine Windows

Marine Ladder

Marine Bollard

Steel Manhole Cover

Hatch Cover

Fairlead Roller

Boat Chain Stopper

Marine Pressure Washer

Pneumatic Rubber Fender

Marine Safety

Black Painted Common Link Stud Link Mooring Chain 38mm-200mm Size

Black Painted Common Link Stud Link Mooring Chain 38mm-200mm Size

Black Painted Common Link

Stud Link Mooring Chain 38mm

Stud Link Mooring Chain 200mm
