C Type Detachable Connecting Link Mooring Connecting Chain Link

Brand Name:	ASAC
Model Number:	TO BE MENTIONED
MOQ:	10 PCS
Price:	US$50-80/PCS
Payment Terms:	T/T
Supply Ability:	10000PCS/YEAR

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ABS,BV,CCS,DNV,LR,NK,RMRS

Products Name:

C TYPE SHAPED DETACHABLE CONNECTING LINK

Standard:

ISO9001,API-Q1/ISO14001,OHSAS18001andHSE/ISO50001

Usage:

For Mooring Chain

Surface Treatment:

Black Painted

Model:

MC01

Size L:

300-972mm

Packaging Details:

Plywood pallets/Wooden Box/PP ton bag

Highlight:

C Type Detachable Connecting Link

Mooring Connecting Chain Link

C Type Connecting Chain Link

Product Description

C Type Shaped Detachable Connecting Link for Mooring Chain with ABS, BV, CCS Certificates

1.Production Capacity

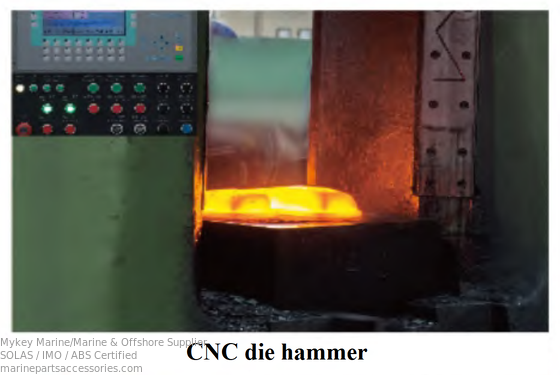

(1) We have independently designed and manufactured an automatic production line for 26 large and medium-sized anchor chains, with 6 fully automatic continuous heat treatment lines and 4000T anchor chain tensile equipment for testing. These are used for the production of AM2 and AM3 marine anchor chains with diameters ranging from 12.5mm to 240mm, as well as R3, R3S, R4, R4S, R5 and R6 marine mooring chains. We have 7 automated forging production lines that can produce various shapes and specifications of accessories, with an annual output of nearly 30,000 tons. Among them, the 2500T hydraulic machine can produce accessories weighing up to 16T. The 8T die forging production line can produce marine engineering accessories weighing over 6T and with specifications over 240mm, which is at the world's leading level. We can also accept various non-standard product customization to meet the needs of different customers.

(2) Equipment List

Various sizes of chain units:3, 5,6,7,8,9,11, 16total 39 sets

Automatic chain heat treatment furnace: I5 sets

Automatic chain proof test machine:

2000/5000/12000/24000/40000kN total10 sets

Chain shot blasting machine: 8 sets

Bending/shaping machine: 6 sets

Heating furnace: 10 sets

Batch furnace(gas) and electric furnace: I5 sets

Machining equipment: 29 sets

Various types of cranes, big truck crane etc. 30t I5 sets

150 meters deep-water pier: I

Other equipments: over 300 sets

C Type Detachable Connecting Link Mooring Connecting Chain Link 0

C Type Detachable Connecting Link Mooring Connecting Chain Link 4

C Type Detachable Connecting Link Mooring Connecting Chain Link 6

C Type Detachable Connecting Link Mooring Connecting Chain Link 8

C Type Detachable Connecting Link Mooring Connecting Chain Link 12

2. SPECIFICATIONS

Specification Of C TYPE SHAPED DETACHABLE CONNECTING LINK for Offshore Mooring Chain
D	d	B	K	L	M	R	W
50	50	205	65	300	65	33	59
52	52	213	68	312	68	34	61
54	54	221	70	324	70	35	64
56	56	230	73	336	73	36	66
58	58	238	75	348	75	38	68
60	60	246	78	360	78	39	71
62	62	254	81	372	81	40	73
64	64	262	83	384	83	42	76
66	66	271	86	396	86	43	78
68	68	279	88	408	88	44	80
70	70	287	91	420	91	46	83
73	73	299	95	438	95	47	86
76	76	312	99	456	99	49	90
78	78	320	101	468	101	51	92
81	81	332	105	486	105	53	96
84	84	344	109	504	109	55	99
87	87	357	113	522	113	57	103
90	90	369	117	540	117	59	106
92	92	377	120	552	120	60	109
95	95	390	124	570	124	62	112
97	97	398	126	582	126	63	114
100	100	410	130	600	130	65	118
102	102	418	133	612	133	66	120
105	105	431	137	630	137	68	124
107	107	439	139	642	139	70	126
11	111	455	144	666	144	72	131
114	114	467	148	684	148	74	135
117	117	480	152	702	152	76	138
120	120	492	156	720	156	78	142
122	122	500	159	732	159	79	144
124	124	508	161	744	161	81	146
127	127	521	165	762	165	83	150
130	130	533	169	780	169	85	153
132	132	541	172	792	172	86	156
137	137	562	178	822	178	89	162
142	142	582	185	852	185	92	168
147	147	603	191	882	191	96	173
152	152	623	198	912	198	99	179
157	157	644	204	942	204	102	185
162	162	664	211	972	211	105	191

d =nominal diameter of common link (mm)

3. Quality Inspection C Type Detachable Connecting Link Mooring Connecting Chain Link 13

C Type Detachable Connecting Link Mooring Connecting Chain Link 14

C Type Detachable Connecting Link Mooring Connecting Chain Link 16

4. Grade of Accessories

Grade/Size/Certificate of mooring chain & Accessories
Product	Stud mooring chain	Studless mooring chain	Mooring Chain Accessories
Grade	R3,R3S,R4,R4S,R5,R6	R3,R3S,R4,R4S,R5,R6	R3,R3S,R4,R4S,R5,R6
Size	38-200mm	38-200mm	187mm
Certificate	ABS,BV,CCS,DNV,LR,NK,RINA,RMRS		ABS,BV,CCS,DNV,LR,NK,RMRS

GRADE OF C TYPE SHAPED DETACHABLE CONNECTING LINK
Grade	M3	R3	R3S	R4
Material	R4	R4	R5	R5

5. Testing Load Of Mooring Chain And Accessories

Testing Load Of Mooring Chain And Accessories (MS Units)
Diameter Of Chain	C/EVE/S		C/ELE	S	C/EL/E/S	C/EL/E	S	C/ELE/S	C/EL/E	S	C/ELE/S	C/ELE	S	C/ELE/S
	RQ3		R3S			R4			R4S			R5
	Tensile load PL	Breaking load BL	Tensile load PL	Tensile load PL	Breaking load BL	Tensile load PL	Tensile load PL	Breaking load BL	Tensile load PL	Tensile load PL	Breaking load BL	Tensile load PL	Tensile load PL	Breaking load BL
mm	KN	KN	KN	KN	KN	KN	KN	KN	KN	KN	KN	KN	KN	KN
50	1560	2230	1800	1740	2490	2160	1920	2740	2400	2130	3040	2510	2230	3200
52	1681	2403	1940	1875	2683	2327	2069	2952	2586	2295	3275	2704	2403	3448
54	1806	2581	2083	2014	2882	2500	2222	3171	2777	2465	3518	2905	2581	3703
56	1934	2764	2231	2157	3086	2677	2380	3396	2975	2640	3768	3111	2764	3966
58	2066	2953	2384	2304	3297	2860	2543	3628	3178	2821	4026	3324	2953	4238
60	2202	3147	2541	2456	3514	3049	2710	3867	3387	3006	4291	3543	3147	4516
62	2342	3347	2702	2612	3737	3242	2882	4112	3602	3197	4563	3767	3347	4803
64	2485	3552	2867	2771	3966	3440	3058	4364	3823	3393	4842	3998	3552	5097
66	2632	3762	3036	2935	4200	3644	3239	4622	4048	3593	5128	4234	3762	5398
68	2782	3977	3210	3103	4440	3852	3424	4886	4280	3798	5421	4476	3977	5706
70	2936	4196	3387	3274	4686	4065	3613	5156	4516	4008	5721	4723	4196	6022
73	3173	4535	3661	3539	5064	4393	3905	5572	4881	4332	6182	5105	4535	6508
76	3417	4885	3943	3812	5454	4731	4206	6002	5257	4666	6659	5498	4885	7009
78	3584	5123	4136	3998	5721	4963	4411	6295	5514	4894	6984	5767	5124	7352
8l	3841	5490	4432	4284	6130	5318	4727	6746	5909	5244	7484	6179	5490	7878
84	4104	5866	4735	4578	6550	5682	5051	7208	6314	5603	7997	6603	5866	8418
87	4374	6252	5047	4879	6981	6056	5383	7682	6729	5972	8523	7037	6252	8972
90	4651	6648	5366	5187	7423	6439	5724	8168	7154	6350	9062	7482	6648	9539
92	4838	6916	5583	5397	7723	6699	d	8498	7443	6606	9428	7785	6916	9924
95	5125	7326	5914	5717	8180	7096	6308	9002	7885	6998	9987	8246	7326	10513
97	5320	7604	6138	5934	8491	7366	6547	9343	8184	7263	10366	8559	7604	10912
100	5616	8028	6480	6264	8964	7776	6912	9864	8640	7668	10944	9036	8028	11520
102	5817	8316	6712	6489	9285	8055	7160	10217	8950	7943	11336	9360	8316	11933
105	6123	8753	7065	6830	9774	8478	7536	10755	9420	8361	11932	9852	8753	12560
107	6330	9049	7304	7061	10104	8765	7791	11118	9739	8643	12335	10185	9049	12985
II1	6751	9650	7789	7530	10775	9347	8309	11857	10386	9217	13155	10862	9650	13847
114	7072	10109	8160	7888	11288	9792	8704	12421	10880	9656	13781	11378	10109	14506
117	7398	10575	8536	8251	11808	10243	9105	12993	11381	10101	14416	11903	10575	15174
120	7728	11047	8917	8620	12335	10700	9511	13573	11889	10552	15059	12434	11047	15852
122	7951	11365	9174	8868	12690	11008	9785	13964	12232	10856	15493	12792	11365	16309
124	8175	11686	9433	9118	13048	11319	10062	14358	12577	11162	15931	13153	11686	16769
127	8515	12172	9825	9498	13591	I1790	10480	14956	13100	11626	16593	13700	12172	17466
130	8859	12663	10222	9881	14140	12266	10903	15559	13629	12095	17263	14253	12663	18171
132	9090	12994	10488	10139	14509	12586	11188	15965	13984	12411	17713	14625	12994	18646
137	9674	13829	I1163	10791	15442	13395	11907	16992	14884	13209	18852	15566	13829	19845
142	10268	14677	11847	11452	16388	14217	12637	18034	15796	14019	20008	16520	14677	21061
147	10869	15536	12541	12123	17348	15049	13377	19089	16721	14840	21179	17487	15536	22294
152	11476	16405	13242	12800	18318	15890	14125	20157	17656	15669	22364	18465	16405	23541
157	12090	17282	13950	13485	19297	16740	14880	21234	18600	16507	23559	19452	17282	24799
162	12708	18166	14664	14175	20284	17596	15641	22321	19551	17352	24765	20447	18166	26068
165	13082	18700	15094	14591	20880	18113	16100	22976	20125	17861	25492	21048	18700	26833
168	13456	19235	15526	15008	21477	18631	16561	23634	20701	18372	26221	21650	19235	27601
171	13831	19771	15959	15427	22076	19151	17023	24293	21279	18885	26953	22254	19771	28371
175	14333	20489	16538	15987	22877	19845	17640	25174	22050	19570	27930	23061	20489	29400
178	14710	21027	16973	16407	23479	20367	18104	25836	22630	20085	28665	23668	21027	30174
180	14961	21387	17263	16688	23881	20716	18414	26278	23017	20428	29155	24072	21387	30690
182	LOAD(kN)			R3 STUDCHAIN		R3S STUDCHAIN			R4 STUDCHAIN		R45 STUDCHAIN		R5 STUDCHAIN
185	Tensile loadPL			0.0156d²(44-0.08d)		0.0180d²(44-0.08d)			0.0216d²(44-0.08d)		0.0240d²(44-0.08d)		0.0251 d(44-0.08d)
188	Breaking loadBL			0.0223d²(44-0.08d)		0.0249d(44-0.08d)			0.0274d²(44-0.08d)		0.0304d²(44-0.08d)		0.0320d(44-0.08d)
191	LOAD(kN)			R3 STUDLESSCHAIN		R3S STUDLESS CHAIN			R4 STUDLESS CHAIN		R4S STUDLESS CHAIN		R5 STUDLESSCHAIN
194	Tensile loadPL			0.0156d²(44-0.08d)		0.0174d²(44-0.08d)			0.0192d²(44-0.08d)		0.0213d²(44-0.08d)		0.0223d²(44-0.08d)
197	Breaking loadBL			0.0223d²(44-0.08d)		0.0249d²(44-0.08d)			0.0274d²(44-0.08d)		0.0304d²(44-0.08d)		0.0320d²(44-0.08d)
200	Breaking loadBL			0.0223d²(44-0.08d)		0.0249d²(44-0.08d)			0.0274d²(44-0.08d)		0.0304d²(44-0.08d)		0.0320d²(44-0.08d)
The data sheet refer to the DNV specification version, and the real loading data shall subject to the formulation.
