Explosion Proof Marine Fan CSZ Series Marine Ventilation Fan With Water Driven

CSZ Series Marine Explosion-proof Fan With Water Driven for High Anti-hazard Classification in Marine Ventilation

1.Fan general

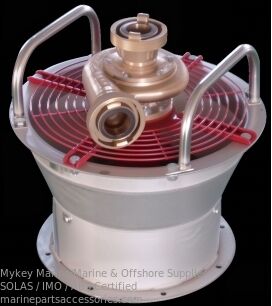

CSZ/CSL series explosion-proof axial fan with water driven have high anti-hazard classification, sound anti-wobble, anti-vibration and anti-impact performance. The fan of simple structure, low weight, simplicity of operation as well as its port-ability (normally only one operator of required)Driven directly by fire protection water, this ventilator depends on no other power with sealed bearings. It largely reduced the maintenance job. With a wide applicability, this type of ventilator can work at -35℃～250℃, ideal for ducting flammable and explosive gases or steam as well as poisonous or other harmful gases.

2.Fan structure

CSZ/CSL Series ventilator fan 15 composed of water turbine, frame ,casing, rotor and impeller The waterturbine15precisely Cast of anti-corrosion copper alloy and the casing 15 welding of austenitic stainless steel The impeller 15 cast of high strength sealing aluminum alloy. The water turbine and the rotor adopt two degrees of sealing, contact sealing and padding A safety brass ring 15 fitted between the casing and impeller, with the structure of no-spark design CSZ ventilator fan serve either supply or exhaust fan, but they can't displace use. CSL ventilator fan is composed of water turbine, frame, casing, rotor, impeller, etc. The water turbine is precisely cast o f anticorrosion copper alloy, the casing is soldered of austenitic stainless steel and the impeller is cast of high strength aluminum alloy, with the whole structure of no-spark design. The angles for air-outlet are R90° for air supply and R225° for air exhaust As a result, this type of ventilator can't change the model.

3.Fan applicable conditions

For places where there are explosive grade IIB and IC and group fromT4 to T6.

ambient temperatures:-35℃~250℃

relative humidity of the air:≤95%

cyclical vacillation:22.5°-45°(vacillation cycle5-10S)

Sustained horizontaltilting:15°

sustained verticaltilting:10°

vibration:existence

shock: existence

4. Model explanation

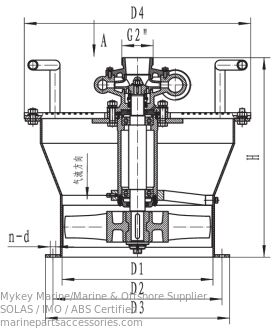

5. Specifications of CSZ Series Marine Explosion-proof Fan With Water Driven
