Marine Grade Aluminum Axial Flow Ventilator 150mm-1600mm Diameter

Brand Name:	OUSENDA
Model Number:	Type C
MOQ:	1
Price:	US$450
Payment Terms:	T/T,L/C
Supply Ability:	100 SETS/MONTH

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CCS MANUFACTURE TEST CERTIFICATE

Item Name:

Fungus-shaped Ventilated Canister

Diameter:

150-1600 Mm

Weight:

45-890 Kg

Material:

Q235B/SUS304/SUS316

Standard:

GB/T295-200

Application:

Fixed On The Natural And Mechanical Ventilate Devices On The Hypaethral Decks Of All Sorts Of Ships For Ventilation

Connection Method With The Fan:

Flange

Packaging Details:

WOODEN CASE

Highlight:

Aluminum Axial Flow Ventilator

Marine Grade Axial Flow Ventilator

Aluminum Axial Flow Ventilator 150mm

Product Description

Marine Grade Aluminum Axial Flow Ventilator with 150-1600 mm Diameter and GB/T295-200 Standard for Ships

1.Using range & purpose

It can be fixed on the natural and mechanical ventilate devices on the hypaethral decks of all sorts of ships for ventilation.

2.Operation Standards

Technical conditions of ventilators' manufacture, experiment and check-accept accord with GB/T295-200(Fungus-shaped ventilated canister For Marine Use).

3.Part Annotation

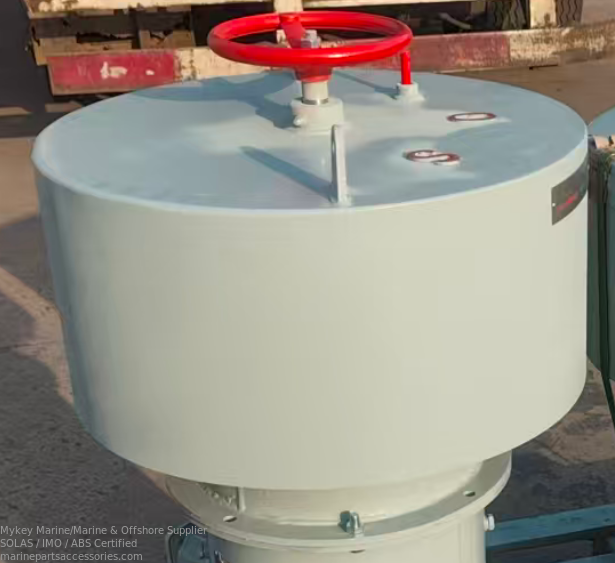

Marine Grade Aluminum Axial Flow Ventilator 150mm-1600mm Diameter 0

1). Ventilator

2). Hood

3). Screw

4). Obturation

5). airproof filling

6). instruction stick

7). sleeve

8). handwheel

9). Oiling glass

10). The net for mice-proofing, worm-proofing or fireproofing

4.Features

Au types of ventilated canisters above have the following features reasonable structure convenient on -off, beautiful shapes, all ready types, good aeration, reliable obturation They can satisfy the wide needs of the shipping industry.

5.Marks

The mark of the ventilated canister choose DN=500 ventilated canister C500CB/T295-2000.

6.Specifications

Nominal dia DN	D1	D4	H	H1	H2	d	t	Flange dimensions(mm)			Weight ≈kg
Nominal dia DN	D1	D4	H	H1	H2	d	t	D2	D3	n-Φ	Weight ≈kg
150	260	150	190	315	395	Tr24×5-LH	6	214	190	8-Φ10	45
200	370	150	210	335	415	Tr24×5-LH	6	264	240	8-Φ10	50
250	440	200	245	365	447	Tr24×5-LH	6	314	290	8-Φ10	62
260	460	200	245	365	447	Tr24×5-LH	6	330	305	8-Φ12	68
280	480	200	250	370	452	Tr24×5-LH	6	344	324	8-Φ12	72
300	530	200	265	385	467	Tr24×5-LH	6	375	345	8-Φ12	77
320	570	200	290	410	490	Tr30×6-LH	6	390	360	8-Φ12	89
350	620	200	310	430	512	Tr30×6-LH	6	425	395	8-Φ12	96
400	710	280	345	470	566	Tr30×6-LH	6	475	445	12-Φ12	118
420	710	280	345	505	580	Tr30×6-LH	8	490	460	12-Φ9	150
440	780	280	345	515	580	Tr30×6-LH	8	510	480	12-Φ9	165
450	800	280	375	520	596	Tr30×6-LH	8	525	495	12-Φ12	147
500	890	320	405	530	639	Tr40×7-LH	8	595	560	12-Φ15	179
550	980	320	435	560	669	Tr40×7-LH	8	645	610	12-Φ15	207
600	1050	320	470	620	729	Tr40×7-LH	8	695	660	12-Φ15	223
640	1140	320	495	675	750	Tr40×7-LH	8	732	700	12-Φ11	280
650	1160	320	500	680	759	Tr40×7-LH	8	745	710	12-Φ15	249
700	1240	320	520	750	779	Tr40×7-LH	8	795	760	16-Φ15	274
750	1320	320	540	750	799	Tr40×7-LH	8	860	820	16-Φ19	309
780	1370	320	540	760	820	Tr40×7-LH	8	870	836	12-Φ11	380
800	1410	320	560	770	849	Tr40×7-LH	8	910	870	16-Φ19	359
850	1500	320	580	770	869	Tr40×7-LH	8	960	920	16-Φ19	408
900	1580	360	600	780	900	Tr46×8-LH	8	1010	970	16-Φ19	434
950	1670	360	620	800	920	Tr46×8-LH	8	1060	1020	12-Φ19	453
1000	1760	360	640	820	940	Tr46×8-LH	8	1110	1070	20-Φ19	530
1100	1930	360	680	860	980	Tr46×8-LH	8	1210	1170	20-Φ19	601
1200	2100	360	720	900	1020	Tr46×8-LH	8	1330	1280	20-Φ24	689
1400	2350	360	760	940	1160	Tr46×8-LH	8	1530	1480	24-Φ24	780
1600	2450	360	800	1100	1220	Tr46×8-LH	8	1730	1680	24-Φ24	890
