CBL series marine explosion-proof centrifugal fan with 500-21000 m³/h airflow capacity, low noise and explosion-proof design

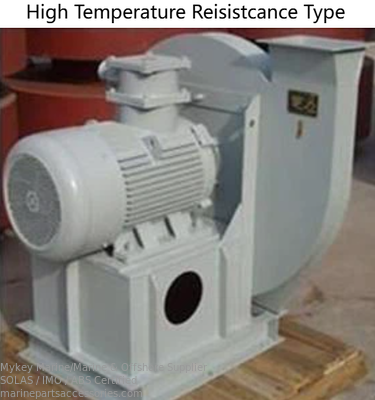

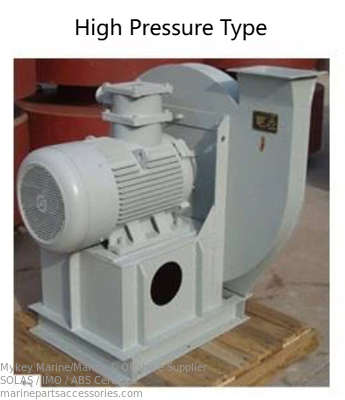

CBL series marine explosion-proof centrifugal fan
1.General
CBL series marine explosion-proof centrifugal fans (the explosion-proof fan) are designed and manufactured according to GB11799-2008 Marine Explosion-Proof Centrifugal Fans,GB38361-2000<Electrical Apparatus For Explosive Atmosphere>,GB3836.2-2000<Electrical Apparatus For Explosive Atmospheres ,and Explosion-Proof Explosion-Proof Electrical Equipment "d">,<Steel Sea Ship in Class and Building Rules>.
This series fans have been examined and proved up to standard by the Quality Supervision Center of Explosion-Proof Electric Apparatus of the PRC and have got the certificate of inspection. They have also been examined by the Register of Shipping of PRC and have got the certificate.
2. Features
Explosion-proof, safe and reliable operation, small size, light weight, and low noise, well anticorrosive, strongly capable of resigning swing, vibration and shocking.
3.Structure
There are two structural types :type I(direct-coupling type)and type II(separate cabins type).The construction is non-sparking.
Type I is a motor direct coupling one ,the impeller is mounted directly on the motor shaft and the housing is fixed on the flange of the explosion-proof motor.
The type II is a separated structure ;the fan and the motor are separated. It consists of fan, driving device, flexible couplings and motor. The driving device consists of bearing body, bearing, shaft, brass rings and lands ,I can be oiled and measured the temperature . One side is fixed on the fan, and the other side will be mounted on the bulkhead.
4. Model explanation
CBL-25-I(II)
I(II)—direct coupling(separate cabins type)
25—25cm impeller diameter is 25cm
L—centrifugal fan
B—explosion-proof
C—marine or navy
5. Main Parameters
| General Type CBL series marine explosion-proof centrifugal fan | |||||||||
| Model | Flow rate | Total Pressure | Static pressure | Speed | Motor | ||||
| m3/h | Pa | Pa | r/min | Freq Hz | power (Kw) | Model | |||
| Type I | Type II | Type I | Type II | ||||||
| CBL-15 | 500 | 549(60) | 490(50) | 2920 | 50 | 0.75 | 1.5 | YB801-2-H | |
| 800 | 539(55) | 392(40) | YB90S-2-H | ||||||
| 600 | 784(80) | 588(60) | 3500 | 60 | Y90S-2-H | ||||
| 960 | 647(66) | 470(48) | |||||||
| CBL-16 | 800 | 598(61) | 490(50) | 2920 | 50 | 0.75 | 1.5 | YB801-2-H | |
| 1200 | 588(60) | 343(35) | YB90S-2-H | ||||||
| 960 | 862(88) | 706(72) | 3500 | 60 | Y90S-2-H | ||||
| 1400 | 843(86) | 490(50) | |||||||
| CBL-17 | 800 | 697(71) | 588(60) | 2920 | 50 | 0.75 | 1.5 | YB801-2-H | |
| 1200 | 686(70) | 441(45) | YB90S-2-H | ||||||
| 960 | 1000(102) | 843(85) | 3500 | 60 | Y90S-2-H | ||||
| 1400 | 980(100) | 637(65) | |||||||
| CBL-18 | 1200 | 813(83) | 637(65) | 2920 | 50 | 1.1 | 1.5 | YB802-2-H | |
| 1500 | 813(83) | 539(55) | YB90S-2-H | ||||||
| 1400 | 1166(119) | 912(93) | 3500 | 60 | Y90S-2-H | ||||
| 1800 | 1166(119) | 774(79) | |||||||
| CBL-19 | 1500 | 902(92) | 735(75) | 2920 | 50 | 1.5 | 2.2 | YB90S-2-H | |
| 2000 | 882(90) | 588(60) | YB90L-2-H | ||||||
| 1800 | 1294(132) | 1059(108) | 3500 | 60 | Y90L-2-H | ||||
| 2400 | 1265(129) | 843(86) | |||||||
| CBL-20 | 800 | 245(25) | 196(20) | 1460 | 50 | 0.75 | 1.1 | YB802-4-H | YB90S-4-H |
| 960 | 353(36) | 284(29) | 1750 | 60 | Y90S-4-H | ||||
| CBL-20 | 1500 | 1049(107) | 882(90) | 2920 | 50 | 2.2 | 3 | YB90L-2-H | |
| 2000 | 1029(105) | 735(108) | YB100L-2-H | ||||||
| 1800 | 1510(154) | 1265(129) | 3500 | 60 | Y100L-2-H | ||||
| 2400 | 1480(151) | 1059(108) | |||||||
| CBL-21 | 2000 | 1176(120) | 931(95) | 2920 | 50 | 2.2 | 3 | YB90L-2-H | |
| 2500 | 1166(119) | 784(80) | YB100L-2-H | ||||||
| 2400 | 1686(172) | 1333(136) | 3500 | 60 | Y100L-2-H | ||||
| 3000 | 1676(171) | 1127(115) | |||||||
| CBL-22 | 2500 | 1274(130) | 980(136) | 2920 | 50 | 2.2 | 3 | YB90L-2-H | |
| 3000 | 1255(128) | 833(85) | YB112M-2-H | ||||||
| 3000 | 1833(187) | 1412(144) | 3500 | 60 | 3 | YB100L-2-H | Y112M-2-H | ||
| 3600 | 1804(184) | 1196(122) | |||||||
| CBL-23 | 2500 | 1402(143) | 1176(120) | 2920 | 50 | 2.2 | 4 | YB90L-2-H | |
| 3000 | 1412(144) | 1078(110) | YB112M-2-H | ||||||
| 3000 | 2010(205) | 1686(172) | 3500 | 60 | 4 | YB112M-2-H | Y112M-2-H | ||
| 3600 | 2029(207) | 1549(158) | |||||||
| CBL-24 | 1500 | 411(42) | 343(35) | 1460 | 50 | 0.75 | 1.1 | Y802-4-H | |
| 2000 | 362(37) | 245(25) | YB90S-4-H | ||||||
| 1800 | 588(60) | 490(50) | 1750 | 60 | Y90S-4-H | ||||
| 2400 | 519(53) | 353(36) | |||||||
| CBL-24 | 3000 | 1637(167) | 1372(139) | 2920 | 50 | 3 | 4 | YB100L-2-H | YB112M-2-H |
| 4000 | 1559(159) | 1078(110) | Y112M-2-H | ||||||
| 3600 | 2352(240) | 1972(201) | 3500 | 60 | 5.5 | 5.5 | YB132S1-2-H | YB132S1-2-H | |
| 4800 | 2235(228) | 1549(158) | Y132S1-2-H | ||||||
| CBL-25 | 2000 | 431(44) | 343(35) | 1460 | 50 | 1.1 | 1.1 | YB90S-4-H | |
| 2500 | 431(44) | 294(30) | YB90S-4-H | ||||||
| 2400 | 617(63) | 490(50) | 1750 | 60 | Y90S-4-H | ||||
| 3000 | 617(63) | 421(43) | |||||||
| CBL-25 | 4000 | 1912(195) | 1569(160) | 2900 | 50 | 4 | 4 | YB112M-2-H | YB112M-2-H |
| Y112M-2-H | |||||||||
| 4800 | 2745(280) | 2255(230) | 3500 | 60 | 7.5 | 7.5 | YB132S2-2-H | YB132S2-2-H | |
| Y132S2-2-H | |||||||||
| CBL-27 | 2500 | 509(52) | 392(40) | 1460 | 50 | 1.5 | 1.5 | YB90L-4-H | |
| 3000 | 509(52) | 343(35) | YB90L-4-H | ||||||
| 3000 | 735(75) | 558(57) | 1750 | 60 | YB90L-4-H | ||||
| 3600 | 735(75) | 490(50) | |||||||
| CBL-29 | 2500 | 627(64) | 539(55) | 1460 | 50 | 1.5 | 2.2 | YB90L-4-H | |
| 3000 | 568(58) | 441(45) | YB100L1-4-H | ||||||
| 3000 | 902(92) | 774(79) | 1750 | 60 | 2.2 | YB100L3-4-H | Y100L1-4-H | ||
| 3600 | 813(83) | 637(65) | |||||||
| CBL-30 | 3000 | 647(66) | 539(55) | 1460 | 50 | 1.5 | 2.2 | YB90L-4-H | |
| 4000 | 637(65) | 441(45) | YB100L1-4-H | ||||||
| 3600 | 931(95) | 774(79) | 1750 | 60 | 2.2 | YB100L1-4-H | Y100L1-4-H | ||
| 4800 | 912(93) | 637(65) | |||||||
| CBL-32 | 4000 | 745(76) | 588(60) | 1460 | 50 | 2.2 | 4 | YB100L1-4-H | |
| 5000 | 735(75) | 490(50) | YB112M-4-H | ||||||
| 4800 | 1068(109) | 843(86) | 1750 | 60 | 4 | YB112M-4-H | Y112M-4-H | ||
| 6000 | 1059(108) | 706(75) | |||||||
| CBL-33 | 4000 | 823(84) | 686(70) | 1460 | 50 | 2.2 | 4 | YB100L1-4-H | |
| 5000 | 794(81) | 588(60) | YB112M-4-H | ||||||
| 4800 | 1186(121) | 990(101) | 1750 | 60 | 4 | YB112M-4-H | Y112M-4-H | ||
| 6000 | 1137(116) | 843(86) | |||||||
| CBL-34 | 5000 | 862(88) | 686(70) | 1460 | 50 | 3 | 4 | YB100L2-4-H | |
| 6000 | 843(86) | 588(60) | YB112M-4-H | ||||||
| 6000 | 1235(126) | 990(101) | 1750 | 60 | 4 | YB112M-4-H | Y112M-4-H | ||
| 7200 | 1216(124) | 843(86) | |||||||
| CBL-36 | 5000 | 970 (99) | 833(85) | 1460 | 50 | 4 | 4 | YB112M-4-H | YB112M-4-H |
| 6000 | 931(95) | 735(75) | Y112M-4-H | ||||||
| 7200 | 872(89) | 588(60) | |||||||
| 6000 | 1392(142) | 1196(122) | 1750 | 60 | 5.5 | 5.5 | YB132S-4-H | YB132S-4-H | |
| 7200 | 1333(136) | 1059(108) | Y132S-4-H | ||||||
| 8600 | 1255(128) | 843(86) | |||||||
| CBL-37 | 6000 | 1010(103) | 833(85) | 1460 | 50 | 4 | 4 | YB112M-4-H | YB112M-4-H |
| 7200 | 990(101) | 735(75) | Y112M-4-H | ||||||
| 7200 | 1451(148) | 1196(122) | 1750 | 60 | 5.5 | 5.5 | YB132S-4-H | YB132S-4-H | |
| 8600 | 1421(145) | 1059(108) | Y132S-4-H | ||||||
| CBL-39 | 6000 | 490(50) | 343(35) | 970 | 50 | 2.2 | 2.2 | YB112M-6-H | YB112M-6-H |
| 7200 | 706(72) | 490(50) | 1160 | 60 | Y112M-6-H | ||||
| CBL-39 | 7200 | 1186(121) | 980(144) | 1460 | 50 | 5.5 | 7.5 | YB132S-4-H | |
| 9000 | 1088(111) | 784(80) | YB132M-4-H | ||||||
| 8600 | 1706(174) | 1412(144) | 1750 | 60 | 7.5 | YB132M-4-H | Y132M-4-H | ||
| 10800 | 1559(159) | 1127(115) | |||||||
| CBL-40 | 5000 | 1216(124) | 1078(110) | 1460 | 50 | 5.5 | 5.5 | YB112M-4-H | YB112M-4-H |
| 6000 | 1176(120) | 980(100) | Y112M-4-H | ||||||
| 6000 | 1754(178) | 1549(158) | 1750 | 60 | 11 | 11 | YB132M-4-H | YB132M-4-H | |
| 7200 | 1686(172) | 1412(144) | Y132M-4-H | ||||||
| CBL-42 | 6000 | 588(60) | 490(50) | 970 | 50 | 2.2 | 3 | YB112M-6-H | |
| 7200 | 539(55) | 392(40) | YB132S-6-H | ||||||
| 7200 | 843(86) | 706(72) | 1160 | 60 | 3 | YB132S-6-H | Y132S-6-H | ||
| 8600 | 774(79) | 558(57) | |||||||
| CBL-42 | 9000 | 1034(132) | 1078(110) | 1460 | 50 | 7.5 | 7.5 | YB132M-4-H | YB132S-4-H |
| 12000 | 1284(130) | 882(89) | Y132M-4-H | ||||||
| 10800 | 1873(190) | 1549(156) | 1750 | 60 | 11 | 11 | YB160M-4-H | YB160M-4-H | |
| 14000 | 1843(186) | 1265(129) | Y160M-4-H | ||||||
| CBL-44 | 7200 | 637(65) | 490(50) | 970 | 50 | 3 | 4 | YB132S-6-H | |
| 9000 | 598(62) | 392(40) | YB132M1-6-H | ||||||
| 8600 | 912(93) | 706(72) | 1160 | 60 | 4 | YB132M1-6-H | Y132M1-6-H | ||
| 10800 | 862(88) | 558(57) | |||||||
| CBL-44 | 9000 | 1480(151) | 1274(130) | 1460 | 50 | 11 | 11 | YB160M-4-H | YB160M-4-H |
| 12000 | 1451(148) | 980(100) | Y160M-4-H | ||||||
| 10800 | 2128(217) | 1833(187) | 1750 | 60 | 15 | 15 | YB160L-4-H | YB160L-4-H | |
| 14000 | 2088(213) | 1412(144) | Y160L-4-H | ||||||
| CBL-46 | 9000 | 696(69) | 490(50) | 970 | 50 | 4 | 4 | YB132M1-6-H | YB132M1-6-H |
| Y132M1-6-H | |||||||||
| 10800 | 970(99) | 343(35) | 1160 | 60 | 5.5 | 5.5 | YB132M2-6-H | YB132M2-6-H | |
| Y132M2-6-H | |||||||||
| CBL-46 | 12000 | 1608(162) | 1274(130) | 1460 | 50 | 15 | 15 | YB160L-4-H | YB160L-4-H |
| 15000 | 1500(151) | 980(100) | Y160L-4-H | ||||||
| 14000 | 2314(236) | 1833(187) | 1750 | 60 | 18.5 | 18.5 | YB180M-4-H | YB180M-4-H | |
| 18000 | 2157(220) | 1412(144) | Y180M-4-H | ||||||
| CBL-48 | 9000 | 735(75) | 588(60) | 970 | 50 | 4 | 4 | YB132M1-6-H | YB132M1-6-H |
| 12000 | 657(67) | 392(40) | Y132M1-6-H | ||||||
| 10800 | 1059(108) | 843(86) | 1160 | 60 | 5.5 | 5.5 | YB132M2-6-H | YB132M2-6-H | |
| 14000 | 941(96) | 558(57) | Y132M2-6-H | ||||||
| CBL-48 | 12000 | 1735(177) | 1470(150) | 1460 | 50 | 15 | 15 | YB160L-4-H | YB160L-4-H |
| 15000 | 1696(173) | 1274(130) | Y160L-4-H | ||||||
| 14000 | 2490(254) | 2118(216) | 1750 | 60 | 22 | 22 | YB180L-4-H | YB180L-4-H | |
| 18000 | 2441(249) | 1833(187) | Y180L-4-H | ||||||
| CBL-50 | 12000 | 774(79) | 539(55) | 970 | 50 | 5.5 | 5.5 | YB132M2-6-H | YB132M2-6-H |
| Y132M2-6-H | |||||||||
| 14000 | 1108(113) | 774(79) | 1160 | 60 | 7.5 | 7.5 | YB132M-6-H | YB132M-6-H | |
| Y132M-6-H | |||||||||
| CBL-50 | 15000 | 1833(187) | 1470(150) | 1460 | 50 | 18.5 | 18.5 | YB180M-4-H | YB180M-4-H |
| 18000 | 1794(181) | 1274(130) | Y180M-4-H | ||||||
| 18000 | 2637(269) | 2118(216) | 1750 | 60 | 22 | 22 | YB180L-4-H | YB180L-4-H | |
| 21000 | 2579(263) | 1833(187) | Y180L-4-H | ||||||
| CBL-52 | 12000 | 931(95) | 735(75) | 970 | 50 | 7.5 | 7.5 | YB160M-6-H | YB160M-6-H |
| 15000 | 853(87) | 539(55) | Y160M-6-H | ||||||
| 14000 | 1333(136) | 1059(108) | 1160 | 60 | 11 | 11 | YB160L-6-H | YB160L-6-H | |
| 18000 | 1225(125) | 774(79) | Y160L-6-H | ||||||
| CBL-54 | 15000 | 941(96) | 686(70) | 970 | 50 | 7.5 | 7.5 | YB160M-6-H | YB160M-6-H |
| Y160M-6-H | |||||||||
| 18000 | 1353(138) | 990(101) | 1160 | 60 | 11 | 11 | YB160L-6-H | YB160L-6-H | |
| Y160L-6-H | |||||||||
| CBL-56 | 15000 | 1059(108) | 833(85) | 970 | 50 | 11 | 11 | YB160L-6-H | YB160L -6-H |
| 18000 | 1010(103) | 686(70) | Y160L-6-H | ||||||
| 18000 | 1520(155) | 1196(122) | 1160 | 60 | 15 | 15 | YB180L-6-H | YB180L-6-H | |
| 21000 | 1441(147) | 980(100) | Y180L-6-H | ||||||
| CBL-58 | 18000 | 1157(118) | 882(90) | 970 | 50 | 15 | 15 | YB180L-6-H | YB180L-6-H |
| Y180L-6-H | |||||||||
| 21000 | 1657(169) | 1265(129) | 1160 | 60 | 18.5 | 18.5 | YB200L1-6-H | YB200L1-6-H | |
| Y200L1-6-H | |||||||||
