10kW-45kW LF3 Aluminum Hot Water Fan 1300-5000m3/H Air Flow Capacity

Brand Name:	OUSENDA
Model Number:	CNF（R）
MOQ:	1
Price:	NEGOTIABLE
Payment Terms:	T/T
Supply Ability:	200 SETS/MONTH

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CCS

Heating Capacity:

10-45 KW

Air Flow Capacity:

1300-5000 M³/h

Motor Power:

0.25-0.75KW

Weight:

48-98KGS

Heating Medium:

60-90℃ Hot Water

Impeller:

LF3 Antirust Aluminum

Product Name:

Hot Water Heating Fan

Packaging Details:

WOODEN CASE

Highlight:

LF3 Aluminum Hot Water Fan

10kW Hot Water Fan

5000m3/H hot water blower

Product Description

CNF(R) Series Hot Water Heating Fan with 10-45 kW Heating Capacity and LF3 Antirust Aluminum Impeller for Marine Use

CNF(R)series hot water heating fan

When ship is anchoring,ambient temperature is near zero,CNF series marine heating fan can ensure the needed temperature of main & auxiliary engine room It is very important and essential for main & auxiliary engine quick start and help ship ready for navigation.The heating fans the following series.

CNF Series heating fan can be operated with 415V,380V,220v, 50Hz or 440V,460V,480V,60Hz marine AC motor.

Note:All fans can be designed specially upon request

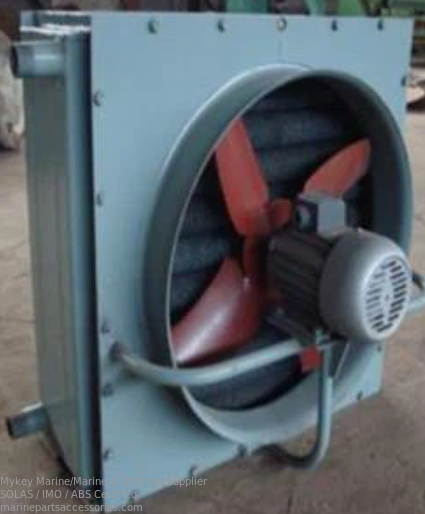

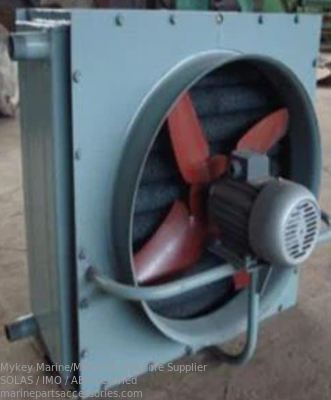

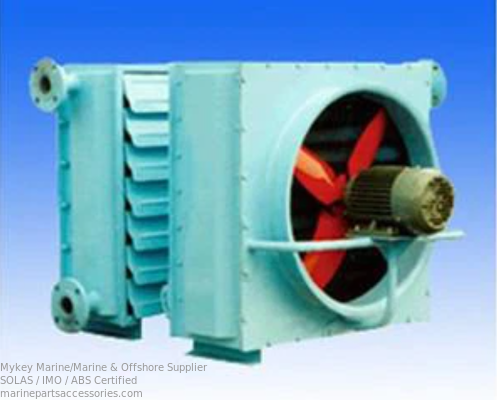

CNF(R) hot water series heating fans are mainly composed by cooling coil,impeller.inlet ring and motor ete.cooling coil is copper tube copper fin (as per the requirements,it can be also winded on the cooling pipe). Heating medium is 60-90℃ hot water.Impeller is LF3 antirust Aluminum.Casing is welded by common steel sheet or stainless steel.

10kW-45kW LF3 Aluminum Hot Water Fan 1300-5000m3/H Air Flow Capacity 0

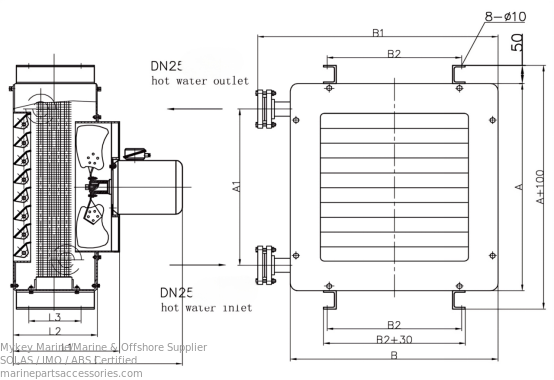

Model	Heating capacity(KW)	Flow rate m³/h	Motor		Dimensions(mm)								Weight (KG)
Model	Heating capacity(KW)	Flow rate m³/h	Power(KW)	Model	A	A1	B	B1	B2	L	L1	L2	Weight (KG)
CNF(R)-18	10	1300	0.25	Y711-4-H	450	370	520	620	360	500	330	250	48
CNF(R)-25	25	2000	0.25	Y711-4-H	570	600	600	700	450	500	380	300	62
CNF(R)-35	35	3000	0.37	Y712-4-H	610	650	650	750	450	500	380	300	82
CNF(R)-45	45	5000	0.75	Y802-4-H	680	730	730	830	500	600	380	300	98

Model explanation

C:marine or navy

NF: heating fan

(Z):heating medium is steam

(R) heating medium is hot water

(D) heating medium is electric heating

(Y) electric heating is hot oil

15: heating capacity is 15000kcal/h(rounded of)or KW
