| Brand Name: | OUSENDA |
| Model Number: | CDR |
| MOQ: | 1 |
| Price: | NEGOTIABLE |
| Payment Terms: | T/T |
| Supply Ability: | 200 SETS/MONTH |
CDR Series Marine Electric Heater with Marine-Grade Stainless Steel Shell, Adjustable Temperature, and IP56 Protection Rating
CDR series electric heater
When ship is anchoring,ambient temperature is near zero,CNF series marine heating fan can ensure the needed temperature of main & auxiliary engine room It is very important and essential for main & auxiliary engine quick start and help ship ready for navigation.The heating fans the following series.
CNF Series heating fan can be operated with 415V,380V,220v, 50Hz or 440V,460V,480V,60Hz marine AC motor.
Note:All fans can be designed specially upon request
CDR type marine electric heater:Nice appearance of the product,the shell made of stainless steel the surface for electrostatic spraying.Electric heating pipe with stainless steel fin heat control method,moisture,corrosion resistance,with fast heating, dehumidification fast,high thermal efficiency,heat uniformity,temperature adjustable and other characteristics,is ideal for heating in winter cabin products.Electronically controlied protection grad IP56,products with thin wall design,space,widely used in ships,factories,hotels,outdoor vehicles.

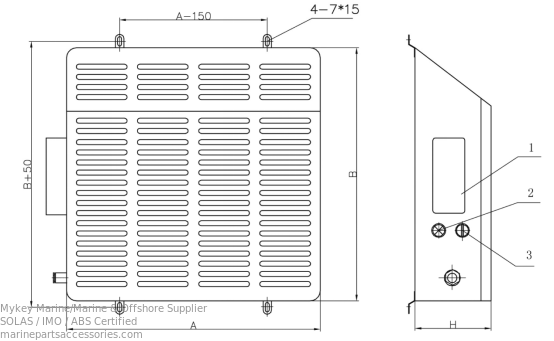

1.Temperature controller
2.Indicator light
3.Switch
Main Technical Parameters
|
Model |
Voltage(V) |
Heating capacity (KW) |
Protection |
Dimensions(mm) |
Weight (KG) |
||
|
A |
B |
H |
|||||
|
CDR-0.5 |
220/380 |
0.5 |
IP44/IP56 |
450 |
450 |
150 |
10 |
|
CDR-1.0 |
220/380 |
1 |
IP44/IP56 |
500 |
500 |
175 |
12 |
|
CDR-1.5 |
220/380 |
1.5 |
IP44/IP56 |
550 |
550 |
200 |
15 |
|
CDR-2.0 |
220/380 |
2 |
IP44/IP56 |
600 |
600 |
200 |
20 |
