Yokohama Inflatable Natural Rubber Fenders 0.5-4.5m Black Easy Installation for Marine Boat Yacht Safety Protection

Brand Name:	ZHH
Model Number:	20
MOQ:	1 piece
Price:	$500-2,400 / piece

Detail Information

Product Description

Detail Information

Place of Origin:

Shandong, China

Diameter:

500-4500mm

Length:

500-12000mm

Weight:

< 1000kg

Material:

Natural Rubber

Initial Pressure:

50KPA, 80KPA

Energy Absorption:

6-9037 KN-m

Highlight:

Yokohama inflatable rubber fenders

marine boat safety fenders

easy installation pneumatic fender

Product Description

Yokohama Inflatable Natural Rubber Fenders

High-performance pneumatic rubber fenders designed for marine vessel protection, available in diameters from 500mm to 4500mm.

Product Overview

Pneumatic rubber fenders, also known as Yokohama fenders, are manufactured using rubber and multiple layers of rubber-dipped tire fabric. These fenders serve as leading anti-collision devices for marine applications worldwide.

Floating pneumatic rubber fenders are constructed from synthetic-cord-reinforced rubber sheets with compressed air inside. The internal air enables flotation on water and functions as a shock absorber between ships (ship-to-ship) or between ships and berthing structures during docking operations.

Product Name	Pneumatic rubber fender
Product Model	cq1-1
Brand	Zhonghaihang
Diameter	500-4500mm
Standard	ISO17357:2014
Technology	Explosion Proof, Overall Winding, Anti-Aging, Large energy absorption
Packaging Details	Pallet

Key Advantages

Reinforced synthetic-tire-cord layers providing strong stability, heat resistance, fatigue resistance, and impact load resistance
No mold vulcanization with advanced surrounding molding process
Single-piece rubber capsule wall formation eliminating secondary joint weak points
Thin, soft walls with excellent contact deformation performance and high energy absorption
Superior adaptability to inclined contact up to 15 degrees
Floating design accommodating multi-directional ship docking
Easy installation and handling

Performance at Inclined Berthing

Ships typically make initial contact with docks or other vessels during STS operations at oblique angles. Unlike solid rubber or foam fenders that experience reduced performance at inclined compression, inflatable rubber fenders maintain consistent energy absorption even at compression angles up to 15 degrees.

Vessel Tonnage Compatibility

Our pneumatic fenders are designed to accommodate various vessel sizes and tonnages, ensuring optimal protection for ships of all scales.

Applications

Pneumatic rubber fenders are suitable for various marine applications including ship-to-ship transfers, berthing operations, and port facilities.

Product Structure

Zhonghaihang Pneumatic Rubber Fenders are constructed with three primary components:

Outer Rubber: Protects cord layers and inner rubber from abrasion and external forces with superior tensile and tear resistance
Reinforcement Synthetic-Tyre-Cord Layer: Maintains internal air pressure with exceptional strength and durability
Inner Rubber Layer: Seals pressurized air inside the fender

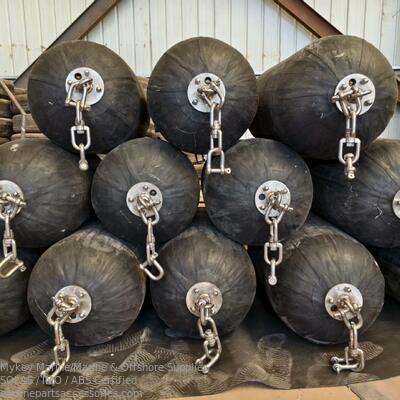

Fenders with diameters of 2500mm and larger include safety valves to release excess internal pressure during accidental over-compression. The assembly features metal end components with dual flanges and bolt/nut clamping systems, similar to automotive tire valve structures.

Usage Precautions

Maintain fender pressure within ±5% of standard air pressure
Check air pressure every three months and adjust as needed
Avoid contact with sharp objects
When not in use for extended periods: clean, dry, inflate with proper compressed air, and store in cool, dry, ventilated areas
Store away from heat sources, acids, alkalis, oils, and greases
Do not fold or stack during storage

Technical Specifications

Pneumatic Fender 50KPA Size and Performance

Normal Size Diameter*Length(mm)	Initial Internal Pressure(Kpa)	GEA Guaranteed Energy Absorption(KN-m)	RF Reaction Force at GEA(KN)	PR Hull Pressure at GEA(Kpa)
500*1000	50	6	64	132
600*1000	50	8	74	126
700*1500	50	17	137	135
1000*1500	50	32	182	122
1000*2000	50	45	257	132
1200*2000	50	63	297	126
1350*2500	50	102	427	130
1500*3000	50	152	579	132
1700*3000	50	191	639	128
2000*3500	50	308	875	128
2500*4000	50	663	1381	137
2500*5500	50	943	2019	148
3300*4500	50	1175	1884	130
3300*6500	50	1814	3015	146
3300*10600	50	3090	5121	171
4500*7000	50	3816	4660	186
4500*9000	50	4752	5747	146
4500*12000	50	6473	7984	154

Pneumatic Fender 80KPA Size and Performance

Normal Size Diameter*Length(mm)	Initial Internal Pressure(Kpa)	GEA Guaranteed Energy Absorption(KN-m)	RF Reaction Force at GEA(KN)	PR Hull Pressure at GEA(Kpa)
500*1000	80	8	85	132
600*1000	80	11	98	126
700*1500	80	24	180	135
1000*1500	80	45	239	122
1000*2000	80	63	338	132
1200*2000	80	88	390	126
1350*2500	80	142	561	130
1500*3000	80	214	731	132
1700*3000	80	267	840	128
2000*3500	80	430	1150	128
2500*4000	80	925	1815	137
2500*5500	80	1317	2653	148
3300*4500	80	1640	2476	130
3300*6500	80	2532	3961	146
3300*10600	80	4294	6612	171
4500*7000	80	4945	5866	186
4500*9000	80	6633	7551	146
4500*12000	80	9037	10490	154

Installation Methods

Pneumatic rubber fenders can be easily installed using guy-ropes or guy-chains due to their lightweight design, accommodating various marine installation requirements.

Company Profile

Qingdao Zhonghaihang Shipping Supply Co., Ltd is an integrated company specializing in product manufacturing, technological innovation, research and development, sales, and service. Founded in 2015, the company has evolved into a professional manufacturer of launching airbags, dock collision avoidance systems, and ship collision avoidance facilities.

Our facilities cover over 20,000 square meters with approximately 10,000 square meters of production area. Supported by our professional technical team, we maintain comprehensive sales networks and after-sales service systems, exporting products to more than 80 countries and regions. Our commitment to high-quality, reliable products and exceptional service has earned customer praise and industry recognition.

We hold ISO9001 quality management system certification, high-tech product certification, environmental management system certification, and occupational health management system certification. All products receive quality authentication from CCS, BV, GL, ABS, LG, and other recognized authorities.

Committed to continuous improvement and technological innovation, Zhonghaihang strives for excellence in quality and aims to build a world-renowned brand.

Frequently Asked Questions

How could I get a sample?

Before we receive your first order, please cover the sample cost and express fee. We will refund the sample cost within your first order.

Sample time?

Existing items: Within 7 days.

Whether you could make our brand on your products?

Yes. We can print your Logo on both the products and the packages.

Whether you could make your products by our color?

Yes, The color of products can be customized if you can meet our MOQ.

How to guarantee the quality of your products?

1) Strict detection during production. 2) Strict sampling inspection on products before shipment and intact product packaging ensured.

How to keep pneumatic rubber fenders?

Keep the fender away from sharp objects to prevent damage
Fender cannot contact acids, oils, or other organic solvents
When not in use for extended periods: clean, dry, and inflate with proper compressed air. Store in dry, cool, ventilated areas
Storage areas should be away from heat sources
Do not place heavy objects on fenders when not in use
Check inner pressure every 3 months during normal usage. Replace air valve core every 6 months
