Black Painted Mooring Chain Swivel 121mm-1571mm Mooring Swivels

Brand Name:	ASAC
Model Number:	TO BE MENTIONED
MOQ:	10 PCS
Price:	US$50-80/PCS
Payment Terms:	T/T
Supply Ability:	10000PCS/YEAR

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ABS,BV,CCS,DNV,LR,NK,RMRS

Products Name:

SWIVEL

Standard:

ISO9001,API-Q1/ISO14001,OHSAS18001andHSE/ISO50001

Usage:

For Mooring Chain

Surface Treatment:

Black Painted

Application:

Marine Project

Size L:

121-1571mm

Packaging Details:

Plywood pallets/Wooden Box/PP ton bag

Highlight:

Black Painted Mooring Chain Swivel

Mooring Chain Swivel 121mm

1571mm Mooring Swivels

Product Description

ABS BV CCS Certified Black Painted Swivel for Mooring Chain with 121-1571mm Size Range

1.Production Capacity

(1) We have independently designed and manufactured an automatic production line for 26 large and medium-sized anchor chains, with 6 fully automatic continuous heat treatment lines and 4000T anchor chain tensile equipment for testing. These are used for the production of AM2 and AM3 marine anchor chains with diameters ranging from 12.5mm to 240mm, as well as R3, R3S, R4, R4S, R5 and R6 marine mooring chains. We have 7 automated forging production lines that can produce various shapes and specifications of accessories, with an annual output of nearly 30,000 tons. Among them, the 2500T hydraulic machine can produce accessories weighing up to 16T. The 8T die forging production line can produce marine engineering accessories weighing over 6T and with specifications over 240mm, which is at the world's leading level. We can also accept various non-standard product customization to meet the needs of different customers.

(2) Equipment List

Various sizes of chain units:3, 5,6,7,8,9,11, 16total 39 sets

Automatic chain heat treatment furnace: I5 sets

Automatic chain proof test machine:

2000/5000/12000/24000/40000kN total10 sets

Chain shot blasting machine: 8 sets

Bending/shaping machine: 6 sets

Heating furnace: 10 sets

Batch furnace(gas) and electric furnace: I5 sets

Machining equipment: 29 sets

Various types of cranes, big truck crane etc. 30t I5 sets

150 meters deep-water pier: I

Other equipments: over 300 sets

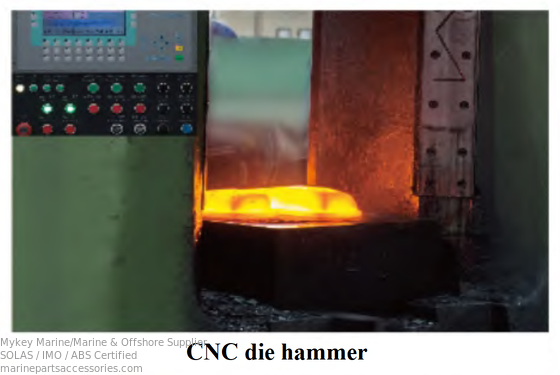

Black Painted Mooring Chain Swivel 121mm-1571mm Mooring Swivels 0

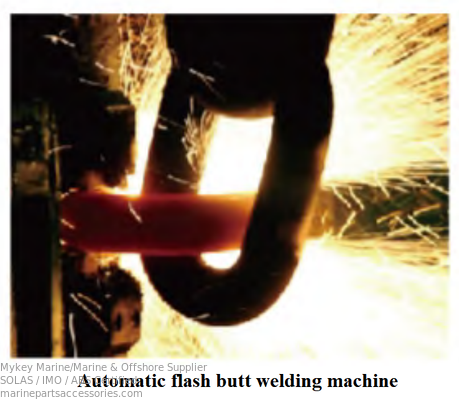

Black Painted Mooring Chain Swivel 121mm-1571mm Mooring Swivels 4

Black Painted Mooring Chain Swivel 121mm-1571mm Mooring Swivels 6

Black Painted Mooring Chain Swivel 121mm-1571mm Mooring Swivels 8

Black Painted Mooring Chain Swivel 121mm-1571mm Mooring Swivels 12

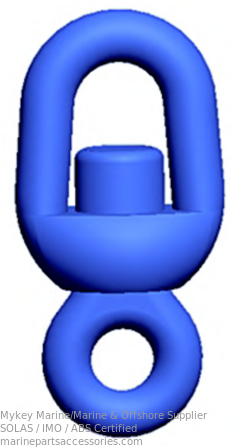

2. SPECIFICATIONS

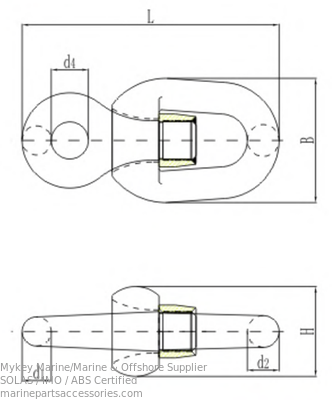

Specification Of SWIVEL for Offshore Mooring Chain
d	d1	d2	B	d4	H	L
12.5	14	15	59	18	43	121
14	15	17	66	20	48	136
16	18	19	75	22	54	155
17.5	19	21	82	25	60	170
19	21	23	89	27	65	184
20.5	23	25	96	29	70	199
22	24	26	103	31	75	213
24	26	29	113	34	82	233
26	29	31	122	36	88	252
28	31	34	132	39	95	272
30	33	36	141	42	102	291
32	35	38	150	45	109	310
34	37	41	160	48	116	330
36	40	43	169	50	122	349
38	42	46	179	53	129	369
40	44	48	188	56	136	388
42	46	50	197	59	143	407
44	48	53	207	62	150	427
46	51	55	216	64	156	446
48	53	58	226	67	163	466
50	55	60	235	70	170	485
52	57	62	244	73	177	504
54	59	65	254	76	184	524
56	62	67	263	78	190	543
58	64	70	273	81	197	563
60	66	72	282	84	204	582
62	68	74	291	87	211	601
64	70	77	301	90	218	621
66	73	79	310	92	224	640
68	75	82	320	95	231	660
70	77	84	329	98	238	679
73	80	88	343	102	248	708
76	84	91	357	106	258	737
78	86	94	367	109	265	757
81	89	97	381	113	275	786
84	92	101	395	118	286	815
87	96	104	409	122	296	844
90	99	108	423	126	306	873
92	101	110	432	129	313	892
95	105	114	447	133	323	922
97	107	116	456	136	330	941
100	110	120	470	140	340	970
102	112	122	479	143	347	989
105	116	126	494	147	357	1019
107	118	128	503	150	364	1038
111	122	133	522	155	377	1077
114	125	137	536	160	388	1106
117	129	140	550	164	398	1135
120	132	144	564	168	408	1164
122	134	146	573	171	415	1183
124	136	149	583	174	422	1203
127	140	152	597	178	432	1232
130	143	156	611	182	442	1261
132	145	158	620	185	449	1280
137	151	164	644	192	466	1329
142	156	170	667	199	483	1377
147	162	176	691	206	500	1426
152	167	182	714	213	517	1474
157	173	188	738	220	534	1523
162	178	194	761	227	551	1571

d =nominal diameter of common link (mm)

3. Quality Inspection Black Painted Mooring Chain Swivel 121mm-1571mm Mooring Swivels 13

Black Painted Mooring Chain Swivel 121mm-1571mm Mooring Swivels 14

Black Painted Mooring Chain Swivel 121mm-1571mm Mooring Swivels 16

4. Grade of Accessories

Grade/Size/Certificate of mooring chain & Accessories
Product	Stud mooring chain	Studless mooring chain	Mooring Chain Accessories
Grade	R3,R3S,R4,R4S,R5,R6	R3,R3S,R4,R4S,R5,R6	R3,R3S,R4,R4S,R5,R6
Size	38-200mm	38-200mm	187mm
Certificate	ABS,BV,CCS,DNV,LR,NK,RINA,RMRS		ABS,BV,CCS,DNV,LR,NK,RMRS

5. Testing Load Of Mooring Chain And Accessories

Testing Load Of Mooring Chain And Accessories (MS Units)
Diameter Of Chain	C/EVE/S		C/ELE	S	C/EL/E/S	C/EL/E	S	C/ELE/S	C/EL/E	S	C/ELE/S	C/ELE	S	C/ELE/S
	RQ3		R3S			R4			R4S			R5
	Tensile load PL	Breaking load BL	Tensile load PL	Tensile load PL	Breaking load BL	Tensile load PL	Tensile load PL	Breaking load BL	Tensile load PL	Tensile load PL	Breaking load BL	Tensile load PL	Tensile load PL	Breaking load BL
mm	KN	KN	KN	KN	KN	KN	KN	KN	KN	KN	KN	KN	KN	KN
50	1560	2230	1800	1740	2490	2160	1920	2740	2400	2130	3040	2510	2230	3200
52	1681	2403	1940	1875	2683	2327	2069	2952	2586	2295	3275	2704	2403	3448
54	1806	2581	2083	2014	2882	2500	2222	3171	2777	2465	3518	2905	2581	3703
56	1934	2764	2231	2157	3086	2677	2380	3396	2975	2640	3768	3111	2764	3966
58	2066	2953	2384	2304	3297	2860	2543	3628	3178	2821	4026	3324	2953	4238
60	2202	3147	2541	2456	3514	3049	2710	3867	3387	3006	4291	3543	3147	4516
62	2342	3347	2702	2612	3737	3242	2882	4112	3602	3197	4563	3767	3347	4803
64	2485	3552	2867	2771	3966	3440	3058	4364	3823	3393	4842	3998	3552	5097
66	2632	3762	3036	2935	4200	3644	3239	4622	4048	3593	5128	4234	3762	5398
68	2782	3977	3210	3103	4440	3852	3424	4886	4280	3798	5421	4476	3977	5706
70	2936	4196	3387	3274	4686	4065	3613	5156	4516	4008	5721	4723	4196	6022
73	3173	4535	3661	3539	5064	4393	3905	5572	4881	4332	6182	5105	4535	6508
76	3417	4885	3943	3812	5454	4731	4206	6002	5257	4666	6659	5498	4885	7009
78	3584	5123	4136	3998	5721	4963	4411	6295	5514	4894	6984	5767	5124	7352
8l	3841	5490	4432	4284	6130	5318	4727	6746	5909	5244	7484	6179	5490	7878
84	4104	5866	4735	4578	6550	5682	5051	7208	6314	5603	7997	6603	5866	8418
87	4374	6252	5047	4879	6981	6056	5383	7682	6729	5972	8523	7037	6252	8972
90	4651	6648	5366	5187	7423	6439	5724	8168	7154	6350	9062	7482	6648	9539
92	4838	6916	5583	5397	7723	6699	d	8498	7443	6606	9428	7785	6916	9924
95	5125	7326	5914	5717	8180	7096	6308	9002	7885	6998	9987	8246	7326	10513
97	5320	7604	6138	5934	8491	7366	6547	9343	8184	7263	10366	8559	7604	10912
100	5616	8028	6480	6264	8964	7776	6912	9864	8640	7668	10944	9036	8028	11520
102	5817	8316	6712	6489	9285	8055	7160	10217	8950	7943	11336	9360	8316	11933
105	6123	8753	7065	6830	9774	8478	7536	10755	9420	8361	11932	9852	8753	12560
107	6330	9049	7304	7061	10104	8765	7791	11118	9739	8643	12335	10185	9049	12985
II1	6751	9650	7789	7530	10775	9347	8309	11857	10386	9217	13155	10862	9650	13847
114	7072	10109	8160	7888	11288	9792	8704	12421	10880	9656	13781	11378	10109	14506
117	7398	10575	8536	8251	11808	10243	9105	12993	11381	10101	14416	11903	10575	15174
120	7728	11047	8917	8620	12335	10700	9511	13573	11889	10552	15059	12434	11047	15852
122	7951	11365	9174	8868	12690	11008	9785	13964	12232	10856	15493	12792	11365	16309
124	8175	11686	9433	9118	13048	11319	10062	14358	12577	11162	15931	13153	11686	16769
127	8515	12172	9825	9498	13591	I1790	10480	14956	13100	11626	16593	13700	12172	17466
130	8859	12663	10222	9881	14140	12266	10903	15559	13629	12095	17263	14253	12663	18171
132	9090	12994	10488	10139	14509	12586	11188	15965	13984	12411	17713	14625	12994	18646
137	9674	13829	I1163	10791	15442	13395	11907	16992	14884	13209	18852	15566	13829	19845
142	10268	14677	11847	11452	16388	14217	12637	18034	15796	14019	20008	16520	14677	21061
147	10869	15536	12541	12123	17348	15049	13377	19089	16721	14840	21179	17487	15536	22294
152	11476	16405	13242	12800	18318	15890	14125	20157	17656	15669	22364	18465	16405	23541
157	12090	17282	13950	13485	19297	16740	14880	21234	18600	16507	23559	19452	17282	24799
162	12708	18166	14664	14175	20284	17596	15641	22321	19551	17352	24765	20447	18166	26068
165	13082	18700	15094	14591	20880	18113	16100	22976	20125	17861	25492	21048	18700	26833
168	13456	19235	15526	15008	21477	18631	16561	23634	20701	18372	26221	21650	19235	27601
171	13831	19771	15959	15427	22076	19151	17023	24293	21279	18885	26953	22254	19771	28371
175	14333	20489	16538	15987	22877	19845	17640	25174	22050	19570	27930	23061	20489	29400
178	14710	21027	16973	16407	23479	20367	18104	25836	22630	20085	28665	23668	21027	30174
180	14961	21387	17263	16688	23881	20716	18414	26278	23017	20428	29155	24072	21387	30690
182	LOAD(kN)			R3 STUDCHAIN		R3S STUDCHAIN			R4 STUDCHAIN		R45 STUDCHAIN		R5 STUDCHAIN
185	Tensile loadPL			0.0156d²(44-0.08d)		0.0180d²(44-0.08d)			0.0216d²(44-0.08d)		0.0240d²(44-0.08d)		0.0251 d(44-0.08d)
188	Breaking loadBL			0.0223d²(44-0.08d)		0.0249d(44-0.08d)			0.0274d²(44-0.08d)		0.0304d²(44-0.08d)		0.0320d(44-0.08d)
191	LOAD(kN)			R3 STUDLESSCHAIN		R3S STUDLESS CHAIN			R4 STUDLESS CHAIN		R4S STUDLESS CHAIN		R5 STUDLESSCHAIN
194	Tensile loadPL			0.0156d²(44-0.08d)		0.0174d²(44-0.08d)			0.0192d²(44-0.08d)		0.0213d²(44-0.08d)		0.0223d²(44-0.08d)
197	Breaking loadBL			0.0223d²(44-0.08d)		0.0249d²(44-0.08d)			0.0274d²(44-0.08d)		0.0304d²(44-0.08d)		0.0320d²(44-0.08d)
200	Breaking loadBL			0.0223d²(44-0.08d)		0.0249d²(44-0.08d)			0.0274d²(44-0.08d)		0.0304d²(44-0.08d)		0.0320d²(44-0.08d)
The data sheet refer to the DNV specification version, and the real loading data shall subject to the formulation.
