| Brand Name: | OUSENDA |
| Model Number: | Type D |
| MOQ: | 1 |
| Price: | US$400 |
| Payment Terms: | T/T,L/C |
| Supply Ability: | 100 SETS/MONTH |

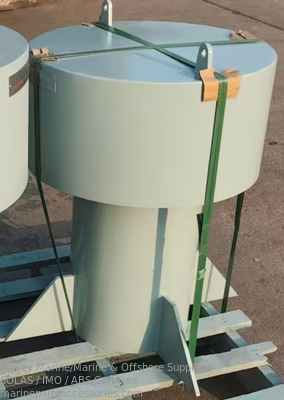

Type D Marine Ventilator Canister with Marine Grade Steel and GB/T295-200 Standard for 200-950 mm Diameter
1.Using range & purpose
It can be fixed on the natural and mechanical ventilate devices on the hypaethral decks of all sorts of ships for ventilation.
2.Operation Standards
Technical conditions of ventilators' manufacture, experiment and check-accept accord with GB/T295-200(Fungus-shaped ventilated canister For Marine Use).

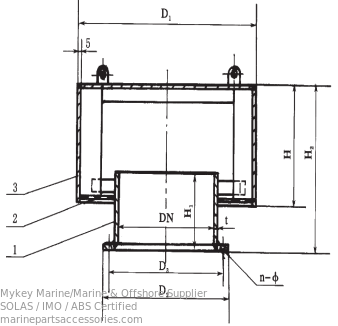

3.Part Annotation
1).Ventilator
2).The net for mice-proofing, worm-proofing or fireproofing
3).Hood
4.Features
Au types of ventilated canisters above have the following features reasonable structure convenient on -off, beautiful shapes, all ready types, good aeration, reliable obturation They can satisfy the wide needs of the shipping industry.
5.Marks
The mark of the ventilated canister choose DN=500 ventilated canister C500CB/T295-2000.
6.Specifications
|
Nominal dia DN |
D1 |
H |
H1 |
H2 |
t |
Flange dimensions(mm) |
weight≈kg |
||
|
|
|
|
|
|
|
D2 |
D3 |
n-Φ |
|
|
200 |
360 |
190 |
195 |
290 |
6 |
288 |
240 |
8-Φ10 |
38 |
|
250 |
440 |
220 |
195 |
320 |
6 |
314 |
290 |
8-Φ10 |
42 |
|
300 |
530 |
265 |
195 |
365 |
6 |
375 |
345 |
8-Φ12 |
52 |
|
350 |
620 |
310 |
205 |
410 |
6 |
425 |
395 |
8-Φ12 |
65 |
|
400 |
710 |
345 |
205 |
445 |
6 |
475 |
445 |
12-Φ12 |
81 |
|
450 |
800 |
375 |
205 |
475 |
8 |
525 |
495 |
12-Φ12 |
99 |
|
500 |
890 |
405 |
205 |
505 |
8 |
595 |
560 |
12-Φ15 |
122 |
|
550 |
980 |
435 |
205 |
535 |
8 |
645 |
610 |
12-Φ15 |
147 |
|
600 |
1050 |
470 |
220 |
570 |
8 |
695 |
660 |
12-Φ15 |
169 |
|
650 |
1160 |
500 |
220 |
600 |
8 |
745 |
710 |
12-Φ15 |
194 |
|
700 |
1240 |
520 |
220 |
620 |
8 |
795 |
760 |
16-Φ15 |
218 |
|
750 |
1320 |
540 |
220 |
640 |
8 |
860 |
820 |
16-Φ19 |
233 |
|
800 |
1410 |
560 |
240 |
660 |
8 |
910 |
870 |
16-Φ19 |
299 |
|
850 |
1500 |
580 |
240 |
680 |
8 |
960 |
920 |
16-Φ19 |
305 |
|
900 |
1580 |
600 |
240 |
700 |
8 |
1010 |
970 |
16-Φ19 |
334 |
|
950 |
1670 |
620 |
240 |
720 |
8 |
1060 |
1020 |
16-Φ19 |
358 |
|
1000 |
1760 |
640 |
240 |
740 |
8 |
1110 |
1070 |
20-Φ19 |
402 |
|
1100 |
1930 |
680 |
240 |
780 |
8 |
1210 |
1170 |
20-Φ19 |
496 |
|
1200 |
2100 |
720 |
240 |
820 |
8 |
1330 |
1280 |
20-Φ24 |
592 |
