| Brand Name: | OEM |
| Model Number: | TYPE A |
| MOQ: | 1 |
| Price: | NEGOTIABLE |
| Payment Terms: | T/T |
| Supply Ability: | 500 SETS/MONTH |

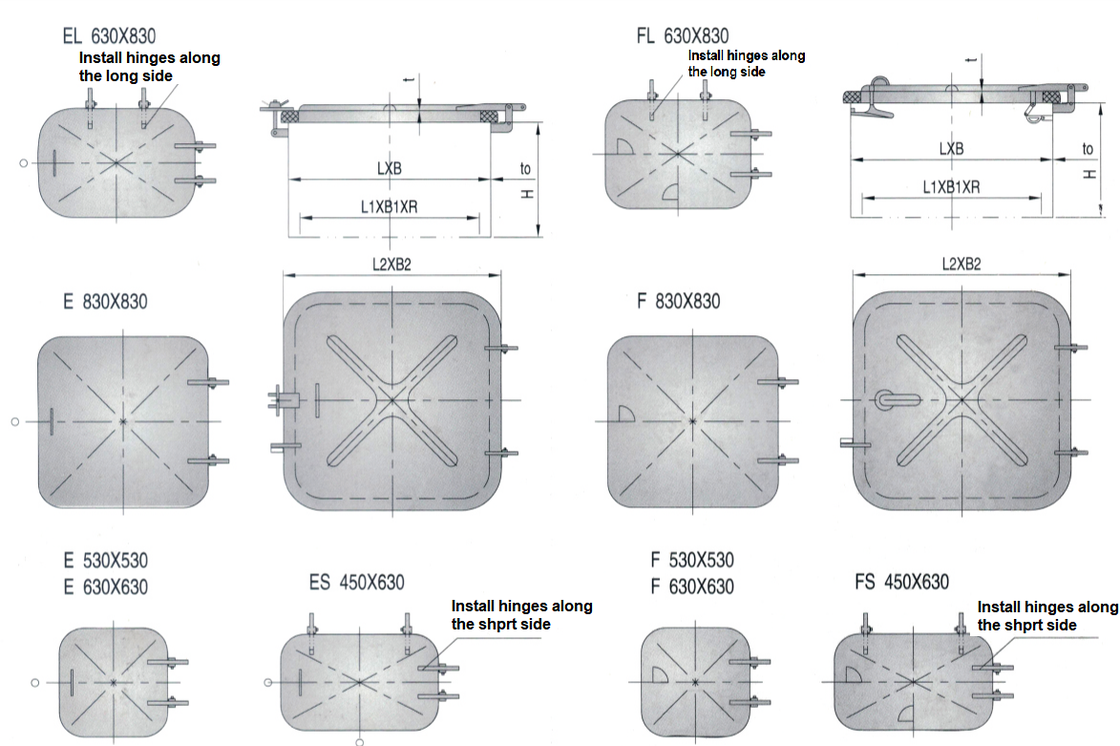

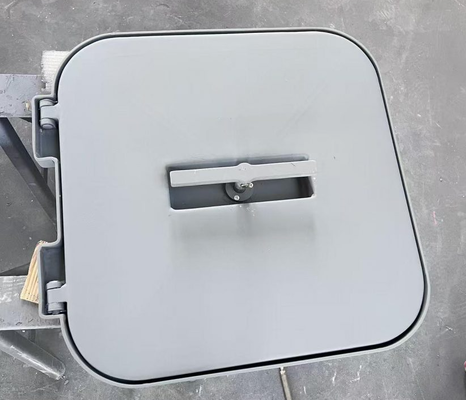

| TYPE E Single-sided opening non-weathertight hatch cover TYPE F Double-sided opening and closing non-weathertight hatch cover (SUITABLE FOR SMALL HATCH COVERS OF VARIOUS SHIPS,AND COMPLIES WITH ISO 5778-1994) |
|||||||||
| TYPE | NOMINAL SIZE LXB |
ALESS WAY SIZE L1X B1XR |
SIZE OF COVER L2XB2 |
THICK.OF COVER t |
(NOTE2) COAMING PLATE |
BUTTERFLY CLIP DIA. |
WEIGHT(NOTE1) kg |
||
| t0 | H | ||||||||
| E | F | ||||||||
|
E(All four sides are equal)
F(All four sides are equal) |
450X630 | 420X600X100 | 508X688 | 4 | 46 | 100 150 200 |
M16 | 20.9 | 22.2 |
| 512X692 | 6 | 68 | 27.6 | 28.8 | |||||
| 530X530 | 500X500X100 | 588X588 | 4 | 46 | 20.7 | 22 | |||
| 592X592 | 6 | 68 | 27.3 | 28.5 | |||||
| 630X630 | 600X600X100 | 688X688 | 4 | 4.6 | M20 | 26.3 | 27.1 | ||
| 692X692 | 6 | 68 | 35.1 | 35.9 | |||||
| 630X830 | 600X800X100 | 688X888 | 4 | 46 | 32.5 | 33.1 | |||
| 692X892 | 6 | 68 | 43.6 | 44.2 | |||||
| 830X830 | 800X800X100 | 888X888 | 4 | 46 | 39.2 | 40.5 | |||
| 892X892 | 6 | 68 | 53.3 | 54.5 | |||||
| NOTES: (1)Weight of coaming is not included in the weight listed in the table (2)The thickness and height of coaming are determined by the customer. (3)Example of Marking: Small Steel Hatch Cover (Type F)with a through-hole size of 530×630mm,cover plate thickness of 6mm,coaming thickness of 8mm, and coaming height of 200mm HATCH COVER F530X630X6-8X200 CB/T 3728-2011 (4) STRUCTURE CHARACTERISTIC OF TYPE E:Wing-shaped nut clamp STRUCTURE CHARACTERISTIC OF TYPE F:Wedge-shaped handle clamp |
|||||||||
