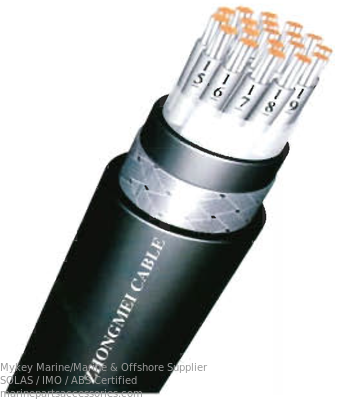

Ethylene Propylene Insulation Marine Cable 150/250V Boat Control Cables

Brand Name:	JIANGNAN CABLE
Model Number:	CKEF80/DA/SA、CKEF90/DA/SA、CKEV80/DA/SA、 CKEV90/DA/SA、CKEPJ80/SC、CKEPJ90/SC、CKEPF80/SC、CKEPF90/SC CKEF80/NA、CKEF90/NA、CKEV80/NA、CKEV90/NA、CKEPJ80/NC、CKEPJ90/NC、CKEPF80/NC、CKEPF90/NC
MOQ:	100 Meter
Price:	US$1.00~US$20.00
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CCS BV

Rated Voltage:

150/250V

Insulation Type:

Ethylene Propylene

Item Type:

Marine Control Cable

Application:

General Control Devices Of Water Structures Such As Cabins And Offshore Oil Platforms.

Long-term Operating Temperature:

90℃

Packaging Details:

DRUM

Highlight:

Ethylene Propylene Insulation Marine Cable

Marine Cable 150/250V

150/250V Boat Control Cables

Product Description

Ethylene Propylene insulated Marine Control Cable at Rated Voltage of 150/250V

150/250V Rated Voltage Marine Control Cable with Ethylene Propylene Insulation for 90°C Operating Temperature and Flame Retardant Performance CKEF80/DA/SA

Executive Standard

This product implements: IEC60092-376 standard.

Cable Categories and Types

CKEF/DA/SA/NA:Ethylene propylene insulated neoprene sheathed marine control cable

CKEF80/DA/SA/NA:Ethylene propylene insulated neoprene inner sheathed copper wire braided armouring marine control cable

CKEF90/DA/SA/NA:Ethylene propylene insulated neoprene inner sheathed steel wire braided armouring control cable for marine

CKEF82/DA/SA/NA:Etylene propylene insulated neoprene inner sheathed copper wire braided armonng polyviny chlonde outer sheathed marine control cable

CKEF92/DA/SA/NA:Ethylene-propylene insulated neoprene nner sheathed wire braided armoring polwvinylchlonide outer sheathed manne control cable

CKEV/DA/SA/NA:Ethylene propylene insulated polyvinyl chloride sheathed marine control cable

CKEV80/DA/SA/NA:Ethylene propylene insulated polywinyl chlonde inner sheathed copper wire braided armoring marine control cable

CKEV90/DA/SA/NA:Ethylene propylene insulated polyvinyl chloride inner sheathed steel wire braided armoring for marine control cable

CKEV82/DA/SA/NA:Ethylene propylene insulated PVCinner sheathed copper wire braided armored PVC outer sheathed marine control cable

CKEV92/DA/SA/NA:Ethylene propylene insulated PVC inner sheathed wire braided amored PVC outer sheathed manne control cable

CKEPJ/SC/NC:Ethylene-propylene insulated cross-linked polyolefin outer sheathed marine control cable

CKEPJ80/SC/NC:Ethylene propylene insulated cross-inked polyolefin inner sheathed copper wire braided armored marine control cable

CKEPJ90/SC/NC:Ethylene propylene insulated croSs-linked polyolefin inner sheathed steel wire braided armored marine control cable

CKEPJ85/SC/NC:Ethylene propylene insulated cros-linke polyolefininner sheathed copper wire braided rmored cross-inked polyolfin outer sheathed marine ontrol able

CKEPJ95/SCNC:Ethylene propylene insulated cross-inked polyolefn inner sheathed stee wire braided armored cross-inked polyolfn outer sheatned marine control cable

CKEPF/SC/NC:Ethylene propylene insulated polyolefin outer sheathed marine control cable

CKEPF80/SC/NC:Ethylene propylene insulated polyolefin inner sheathed copper wire braided armored marine control cable

CKEPF90/SC/NC:Ethylene propylene insulated polyolefin inner sheathed steel wire braided armored marine control cable Type SC NCCKEPF86/SC/NC:Ethylene propylene insulated polyolefin inner sheathed copper wire braided armored polyolefin outer sheathed marine control cable

CKEPF96/SC/NC:Ethylene propylene insulated polyolefin inner sheathed stee wire braided armored polyolefin outer sheathed marine controlcable

Product Application

This product is suitable for general control devices of water structures such as cabins and offshore oil platforms.

Cable Parameters

Ethylene Propylene insulated Marine Control Cable at Rated Voltage of 150/250V
No.of cores ×sectional area	CKEF80/DA/SA,CKEF90/DA/SA,CKEV80/DA/SA,CKEV90/DA/SA,CKEPJ80/SC,CKEPJ90/SC,CKEPF80/SC,CKEPF90/SC				CKEF80/NA,CKEF90/NA,CKEV80/NA,CKEV90/NA,CKEPJ80/NC,CKEPJ90/NC,CKEPF80/NC,CKEPF90/NC
No.of cores ×sectional area	Over diam.mm		Approx.weight		Over diam.mm		Approx.weight
No. ×mm²	Nom.	Max	TYPE 80	TYPE 90	Nom.	Max	TYPE 80	TYPE 90
2*0.75	8.0	9.6	89	86	8.8	10.4	98	94
3*0.75	8.4	10.0	105	101	9.2	10.9	121	118
4*0.75	9.1	10.7	129	126	10.2	11.9	142	138
5*0.75	9.6	11.3	148	144	10.8	12.6	164	160
7*0.75	10.7	12.5	180	175	11.9	13.7	207	202
10*0.75	13.6	15.6	249	244	15.5	17.6	299	292
12*0.75	14.0	16.0	290	284	15.9	18.1	334	326
14*0.75	14.8	17.0	331	324	16.9	19.2	370	362
16*0.75	15.7	18.0	364	356	17.8	20.1	430	419
19*0.75	16.5	18.8	410	402	18.6	21.0	494	482
24*0.75	19.2	21.8	538	525	21.8	24.4	615	601
27*0.75	19.6	22.2	608	595	22.2	24.8	682	667
30*0.75	20.5	23.2	655	641	23.4	26.1	750	734
33*0.75	21.2	23.9	684	671	24.2	27.0	784	769
37*0.75	22.0	24.8	745	731	25.1	27.9	852	836
2*1	8.4	10.0	98	95	9.2	10.8	114	110
3*1	8.8	10.4	124	120	9.7	11.3	136	132
4*1	9.5	11.2	146	142	10.7	12.4	160	156
5*1	10.1	11.8	168	164	11.4	13.1	185	180
7*1	11.3	13.1	206	202	12.5	14.3	235	230
10*1	14.4	16.3	299	292	16.3	18.4	340	332
12*1	15.1	17.3	345	337	16.8	18.9	381	373
14*1	15.8	18.1	384	376	17.8	20.0	448	436
16*1	16.6	18.9	422	414	18.7	21.0	504	492
19*1	17.7	20.0	513	502	19.6	22.0	568	555
24*1	20.6	23.2	639	625	22.9	25.5	708	693
27*1	21.0	23.6	708	693	23.9	26.5	800	784
30*1	21.7	24.4	779	764	24.7	27.4	865	849
33*1	22.5	25.2	803	789	25.5	28.3	907	891
37*1	23.5	26.3	890	875	26.7	29.5	1024	1003
2*1.5	9.4	11.0	127	123	10.4	12.0	138	134
3*1.5	9.9	11.5	154	150	10.9	12.6	167	163
4*1.5	10.9	12.6	185	180	11.9	13.6	207	202
5*1.5	11.6	13.3	223	218	12.7	14.4	241	236
7*1.5	12.9	14.7	276	271	14.3	16.0	311	304
10*1.5	16.7	18.8	421	410	18.4	20.6	469	458
12*1.5	17.4	19.6	474	462	19.0	21.2	527	515
14*1.5	18.2	20.5	540	528	20.2	22.4	588	575
16*1.5	19.1	21.4	596	583	21.2	23.5	663	650
19*1.5	20.3	22.7	688	675	22.3	24.7	750	736
24*1.5	24.0	26.6	858	842	26.5	29.2	971	950
27*1.5	24.4	27.1	1003	982	27.1	29.7	1095	1072
30*1.5	25.3	28.0	1086	1064	28.0	30.7	1202	1179
33*1.5	26.4	29.2	1140	1118	29.6	32.7	1245	1222
37*1.5	27.4	30.2	1244	1222	30.7	33.9	1379	1354
2*2.5	10.4	12.0	155	151	11.2	12.8	166	162
3*2.5	10.9	12.6	192	188	11.8	13.4	213	209
4*2.5	11.9	13.6	240	236	13.0	14.7	258	253
5*2.5	12.7	14.4	282	277	14.0	15.8	315	308
7*2.5	14.3	16.0	378	371	15.8	17.7	405	398
10*2.5	18.4	20.6	552	540	20.2	22.4	593	580
12*2.5	19.0	21.2	627	614	20.8	23.1	686	672
14*2.5	20.2	22.4	716	702	21.9	24.2	769	755
16*2.5	21.2	23.5	794	780	23.2	25.6	852	838
19*2.5	22.3	24.7	905	890	24.6	27.1	988	972
24*2.5	26.5	29.2	1183	1161	29.4	32.4	1272	1249
27*2.5	27.1	29.7	1334	1310	30.0	33.1	1433	1408
30*2.5	28.0	30.7	1447	1422	31.1	34.2	1577	1551
33*2.5	29.6	32.7	1530	1506	32.4	35.6	1647	1621
37*2.5	30.7	33.9	1677	1652	33.6	36.9	1825	1798
Note:Data above only for reference,confirmation needed by our technical department.We reserve the right to alter all information without notice.

Technical Characteristics

The rated AC voltage of the cable is 150/250V;
The allowable long-term operating temperature of the cable conductor is 90℃
The flame retardant performance of the cable conforms to IEC60332-1-2 or IEC60332-3-22 standards
The fire resistance conforms to IEC60331-21 standard
The minimum bending radius of the cable is 6 times the diameter of the cable

Identification

Insulated core: white insulated with black numbering
Sheath printed with factory name, type, voltage, specification, length mark, etc.

Structure Diagram
