| Brand Name: | JIANGNAN CABLE |
| Model Number: | CHJ82/DA/SA、CHJ85/SC、CHJ86/SC CHJ82/NA、CHJ85/NC、CHJ86/NC |
| MOQ: | 100 Meter |
| Price: | US$1.00~US$20.00 |
| Payment Terms: | T/T |
| CHJV/DA/SA/NA: | XLPE insulated PVC sheathed marine communication cable DA SA NA type |
| CHJVP/DA/SA/NA: | XLPE insulated pair twisted individual screen polyvinyl chloride sheathed marine communication cable DA SA NA type |
| CHJV80/DASA/NA: | XLPE insulated polyvinyl chloride inner sheathed copper wire braided armoring communication cable for marine type DA SANA |
| CHJVP80/DAVSA/NA: | XLPEinsulated pai twisted individual screen polyviny choride inner sheathed copper wire braided amored for marine communication cable type DASA NA |
| CHJV90/DA/SA/NA: | XLPE insulated polyvinyl chloride inner sheathed steel wire braided armored communication cable for marine type DA SA NA |
| CHJVP90/DA/SA/NA: | XLPE insulated pai twisted indvidual screen polyviny chorideinner sheathed stel wre braided armored for marine communiction cable type DASA NA |
| CHJ82/DA/SA/NA: | XLPE insulated copper wire braided armoring PVC sheathed marine communication cable DA SA NA type |
| CHJV82/DASA/NA: | XLPE insulated PVCinner sheathed copper wire braided armoring PVC outer sheathed marine communication cable DA SA NA type |
| CHJP82/DASA/NA: | XLPE insulated pair twisted individual screen copper wire braided armoring PVC sheathed marine communication cable DA SANA type |
| CHJVP82/DASA/NA: | XLPE insulated twisted individual screen PVCinner sheathed copper wire braided amoning PVC outer sheathed marine communication cable |
| CHJV92/DASA/NA: | XLPE insulated PVCinner sheathed wire braided armoring PVC outer sheathed Marine communication cable DASA NA type |
| CHJVP92/DA/SA/NA: | XLPEinsulated pair twisted individual screen PVC inner sheathed wire braided armoring PVCouter sheathed marine communication cable DASA NA type |
| CHJPJ/SC/NC: | XLPE insulated crosslinked polyolefin outer sheathed marine communication cable SC NC type |
| CHJPJP/SC/NC: | Cross-Iinked polyethylene insulated pai twisted individual screen cross-linked polyolefin outer sheathed marine communication cable |
| CHJPJ80/SC/NC: | Cross-lnked polethylene inslated pai twisted individual screen cros-lnked polyolefininner sheathed copper wire braided armored marine communication cable |
| CHJPJP80/SC/NC: | CrosS-linked polyethylene insulated pair twisted indvidual scren cross-Inked polyolefn inne sheathe operwie braided armored marine commuicafion cable |
| CHJPJ90/SC/NC: | Cross-inked polyethylene insulated cross-linked polyolefin inner sheathed steel wire braided armored marine communication cable Type SC NC |
| CHJPJP90/SC/NC: | Cross-Inked polyethylene insulated pair twisted individual screencros-Inked polyolefi inner sheathed stel wire braided armored marine communicafion cable Type SC NC |
| CHJ85/SC/NC: | Cross-inked polyethylene insulated copper wire braided armored cross-inked polyolefin outer sheathed marine communication cable |
| CHJP85/SC/NC: | Cros linked polyethylen islatedpair twisted idvidual scren coper wire braided armored cros-Iinked polyolefn outer sheathed marne communication cable |
| CHJPJ85/SC/NC: | XLPE insulated croslinked poyolefininne sheathed cope wire braded amoning roslinked oyolefi outer sheated manine comunictoncable |
| CHJPJP85/SC/NC: | XLPE islated pr wistedindida scren cos-nked poycefinimnershathed oper we braded rmoing uos-Inked poyolefi outershesthe main commuicationcble |
| CHJPJ95/SC/NC: | XLPEinsulated cToss-Inked polyolefin inner sheathed stel wire braided armoning coss-Inked poyolefin outer sheathed manne communication cable |
| CHJPJP95/SC/NC: | XLPE islated pa twstelindidua scren cos-Iikedpobolfi ime shath ste wie brade armurn crs-Inked poydefi nutershathe manine comunicaton cabe SCNC type |
| CHJPF/SC/NC: | XLPE insulated polyolefin outer sheathed marine communication cable SC NC type |
| CHJPFP/SC/NC: | XLPE insulated pair twisted individual screen polyolefin outer sheathed marine communication cable SC NC type |
| CHJPF80/SC/NC: | XLPEinsulated polyolefin inner sheath copper wire braided armoring marine communication cable SC NC type |
| CHJPFP80/SC/NC: | XLPE insulated pair twisted individual screen polyolefin inner sheath copper wire braided armoring marine communication cable SCNCtype |
| CHJPF90/SC/NC: | XLPE insulated pair twisted indvidual screen polyolefininer sheath steel wire braided amoning mane communication cable SC NC type |
| CHJPFP90/SC/NC: | XLPE insulated pai twisted indvidual screen polyolefininer sheath stel wire braided armoring marine communication cable SC NC type |
| CHJ86/SC/NC: | XLPE insulated copper wire braided armoring polyolefin outer sheathed marine communication cable SC NC type |
| CHJP86/SC/NC: | XLPE insulated ai twisted individual screen copper wire braided armoring polyolefin sheathed marine communication cable SC NC type |
| CHJPF86/SC/NC: | XLPE insulated polyolefin inner sheathed copper wire braided amoring polyolefin outer sheathed manne communication cable SC NC type |
| CHJPFP86/SC/NC: | XLPEinsulation pir twise indidal scren pobydefn ne sheathed oper wie braided armoingpodyolefi outer sheathe main ommunication cable SCNC type |
| CHJPF96/SC/NC: | XLPE insulated polyolefin inner sheathed wire braided amoring polyolefin outer sheathed manine communication cable SCNC type |
| CHJPFP96/SC/NC: | XLPEislated ar twsedindvidual sreen pdyolefininersheathed wire braided amoing polyolefi outer shathed marine communication cable SCNC type |
This product is suitable for signal transmission and control systems in telecommunications,electronic computers and information processing equipment.
| Crosslinked Polyethylene Insulated Marine Communication Cable at Rated Voltage of 150/250V | ||||||
| No.of cores ×sectional area |

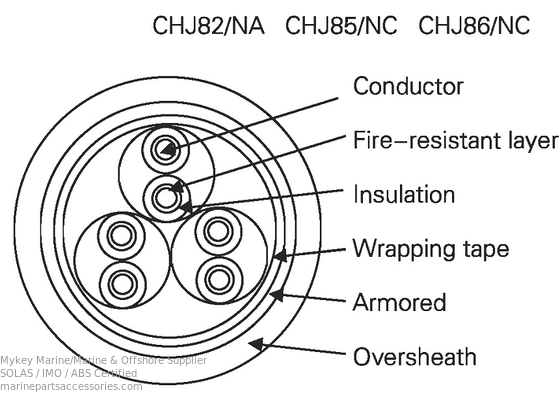

CHJ82/DA/SA,CHJ85/SC,CHJ86/SC | CHJ82/NA,CHJ85/NC,CHJ86/NC | ||||
| Over diam.mm | Approx.weight | Over diam.mm | Approx.weight | |||
| No. ×mm² | Nom. | Max | TYPE 82/85/86 | Nom. | Max | TYPE 82/85/86 |
| 1*2*0.5 | 6.4 | 9.0 | 63 | 7.4 | 10.0 | 79 |
| 2*2*0.5 | 8.8 | 11.9 | 135 | 10.6 | 13.7 | 183 |
| 3*2*0.5 | 9.4 | 12.6 | 150 | 11.2 | 14.4 | 198 |
| 4*2*0.5 | 10.2 | 13.6 | 174 | 12.4 | 15.8 | 238 |
| 5*2*0.5 | 11.0 | 14.6 | 210 | 13.5 | 17.1 | 287 |
| 7*2*0.5 | 12.1 | 15.9 | 240 | 14.8 | 18.5 | 317 |
| 10*2*0.5 | 15.5 | 19.9 | 364 | 19.2 | 23.6 | 510 |
| 12*2*0.5 | 15.9 | 20.5 | 395 | 19.8 | 24.3 | 547 |
| 14*2*0.5 | 16.9 | 21.6 | 436 | 21.4 | 26.1 | 602 |
| 16*2*0.5 | 17.9 | 22.9 | 518 | 22.6 | 27.6 | 711 |
| 19*2*0.5 | 18.8 | 24.0 | 565 | 23.8 | 28.9 | 764 |
| 24*2*0.5 | 22.6 | 28.4 | 740 | 28.0 | 33.8 | 1012 |
| 27*2*0.5 | 23.1 | 29.0 | 831 | 28.8 | 34.7 | 1131 |
| 30*2*0.5 | 23.9 | 29.9 | 906 | 29.8 | 35.8 | 1208 |
| 33*2*0.5 | 25.1 | 31.4 | 939 | 30.9 | 37.1 | 1289 |
| 37*2*0.5 | 26.0 | 32.5 | 1004 | 32.2 | 38.7 | 1349 |
| 1*2*0.75 | 7.2 | 9.8 | 81 | 8.2 | 10.8 | 94 |
| 2*2*0.75 | 10.3 | 13.4 | 172 | 11.9 | 15.1 | 237 |
| 3*2*0.75 | 10.8 | 14.1 | 192 | 12.8 | 16.1 | 257 |
| 4*2*0.75 | 11.8 | 15.2 | 233 | 14.0 | 17.4 | 309 |
| 5*2*0.75 | 13.0 | 16.6 | 281 | 15.6 | 19.2 | 364 |
| 7*2*0.75 | 14.3 | 18.0 | 323 | 17.1 | 20.9 | 427 |
| 10*2*0.75 | 18.5 | 23.0 | 513 | 22.6 | 27.1 | 660 |
| 12*2*0.75 | 19.1 | 23.6 | 558 | 23.3 | 27.9 | 740 |
| 14*2*0.75 | 20.6 | 25.4 | 616 | 24.5 | 29.2 | 831 |
| 16*2*0.75 | 21.9 | 26.8 | 726 | 26.2 | 31.1 | 922 |
| 19*2*0.75 | 23.0 | 28.1 | 793 | 27.5 | 32.6 | 1009 |
| 24*2*0.75 | 27.0 | 32.8 | 1047 | 32.4 | 38.2 | 1329 |
| 27*2*0.75 | 27.6 | 33.5 | 1172 | 33.1 | 39.0 | 1482 |
| 30*2*0.75 | 28.7 | 34.8 | 1257 | 34.2 | 40.3 | 1609 |
| 33*2*0.75 | 29.8 | 36.0 | 1331 | 35.7 | 42.0 | 1703 |
| 37*2*0.75 | 31.1 | 37.5 | 1419 | 37.1 | 43.5 | 1779 |
| 1*2*1 | 7.6 | 10.2 | 91 | 8.6 | 11.2 | 103 |
| 2*2*1 | 10.9 | 14.1 | 196 | 12.8 | 15.9 | 267 |
| 3*2*1 | 11.6 | 14.8 | 228 | 13.5 | 16.8 | 299 |
| 4*2*1 | 12.8 | 16.2 | 269 | 14.9 | 18.3 | 351 |
| 5*2*1 | 13.9 | 17.5 | 326 | 16.5 | 20.1 | 439 |
| 7*2*1 | 15.5 | 19.2 | 390 | 18.3 | 22.1 | 490 |
| 10*2*1 | 19.8 | 24.3 | 596 | 24.0 | 28.4 | 786 |
| 12*2*1 | 21.0 | 25.6 | 653 | 24.7 | 29.3 | 864 |
| 14*2*1 | 22.3 | 27.0 | 768 | 26.3 | 31.1 | 954 |
| 16*2*1 | 23.4 | 28.3 | 851 | 27.7 | 32.6 | 1115 |
| 19*2*1 | 24.6 | 29.7 | 949 | 29.4 | 34.5 | 1203 |
| 24*2*1 | 29.2 | 35.0 | 1247 | 34.4 | 40.2 | 1552 |
| 27*2*1 | 29.8 | 35.7 | 1396 | 35.3 | 41.2 | 1731 |
| 30*2*1 | 30.9 | 36.9 | 1521 | 36.6 | 42.6 | 1880 |
| 33*2*1 | 32.2 | 38.4 | 1595 | 38.2 | 44.4 | 1998 |
| 37*2*1 | 33.4 | 39.8 | 1702 | 39.6 | 46.0 | 2091 |
| 1*2*1.5 | 8.6 | 11.2 | 112 | 9.8 | 12.4 | 131 |
| 2*2*1.5 | 12.8 | 15.9 | 262 | 14.5 | 17.6 | 349 |
| 3*2*1.5 | 13.5 | 16.8 | 306 | 15.7 | 18.9 | 382 |
| 4*2*1.5 | 15.1 | 18.5 | 363 | 17.3 | 20.7 | 476 |
| 5*2*1.5 | 16.5 | 20.1 | 453 | 19.1 | 22.7 | 601 |
| 7*2*1.5 | 18.3 | 22.1 | 551 | 21.0 | 24.8 | 673 |
| 10*2*1.5 | 24.0 | 28.4 | 848 | 27.7 | 32.1 | 1042 |
| 12*2*1.5 | 24.9 | 29.5 | 930 | 28.7 | 33.3 | 1166 |
| 14*2*1.5 | 26.3 | 31.1 | 1032 | 30.2 | 34.9 | 1310 |
| 16*2*1.5 | 27.9 | 32.8 | 1203 | 32.0 | 36.9 | 1460 |
| 19*2*1.5 | 29.4 | 34.5 | 1340 | 33.7 | 38.8 | 1600 |
| 24*2*1.5 | 34.6 | 40.4 | 1698 | 39.8 | 45.5 | 2058 |
| 27*2*1.5 | 35.3 | 41.2 | 1900 | 40.8 | 46.7 | 2294 |
| 30*2*1.5 | 36.8 | 42.8 | 2070 | 42.5 | 48.6 | 2553 |
| 33*2*1.5 | 38.2 | 44.4 | 2212 | 44.3 | 50.6 | 2669 |
| 37*2*1.5 | 39.8 | 46.2 | 2333 | 46.2 | 52.7 | 2852 |
| 1*2*2.5 | 9.6 | 12.2 | 144 | 10.6 | 13.2 | 159 |
| 2*2*2.5 | 14.1 | 17.3 | 340 | 16.1 | 19.2 | 444 |
| 3*2*2.5 | 15.3 | 18.5 | 392 | 17.1 | 20.3 | 504 |
| 4*2*2.5 | 16.7 | 20.1 | 495 | 19.1 | 22.5 | 636 |
| 5*2*2.5 | 18.7 | 22.3 | 625 | 21.1 | 24.7 | 757 |
| 7*2*2.5 | 20.5 | 24.3 | 736 | 23.6 | 27.4 | 906 |
| 10*2*2.5 | 27.0 | 31.5 | 1121 | 30.7 | 35.2 | 1383 |
| 12*2*2.5 | 28.1 | 32.6 | 1279 | 31.7 | 36.3 | 1510 |
| 14*2*2.5 | 29.5 | 34.2 | 1445 | 33.3 | 38.1 | 1701 |
| 16*2*2.5 | 31.2 | 36.2 | 1611 | 35.3 | 40.3 | 1925 |
| 19*2*2.5 | 32.9 | 38.0 | 1804 | 37.4 | 42.6 | 2122 |
| 24**2*2.5 | 38.8 | 44.6 | 2311 | 44.3 | 50.1 | 2694 |
| 27*2*2.5 | 39.8 | 45.7 | 2584 | 45.5 | 51.4 | 3096 |
| 30*2*2.5 | 41.2 | 47.3 | 2881 | 47.2 | 53.2 | 3367 |
| 33*2*2.5 | 43.2 | 49.5 | 3005 | 49.2 | 55.4 | 3621 |
| 37*2*2.5 | 45.0 | 51.5 | 3277 | 51.1 | 57.5 | 3802 |
| Note: Data above only for reference.confirmation needed by our technical department. We reserve the right to alter all information without notice. | ||||||
