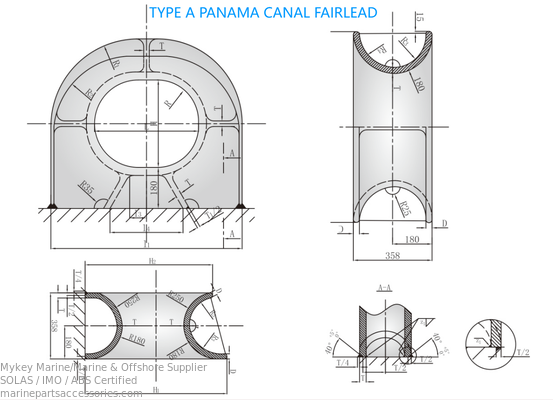

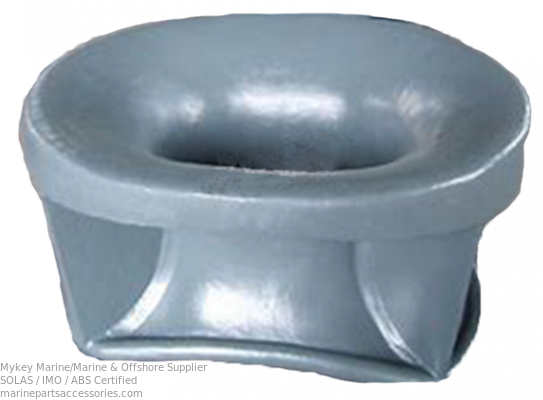

| THE DIMENSIONS AND SWL OF TYPE A PANAMA CANAL FAIRLEAD | mm | ||||||||||
| NOMINAL SIZE DN |
L | L1 | L2 | L3 | L4 | H | H1 | H2 | R | R1 | R2 |
| 310 | 310 | 708 | 688 | 105 | 310 | 260 | 639 | 541 | 130 | 329 | 231 |
| 360 | 360 | 760 | 740 | 130 | 360 | 260 | 640 | 543 | 130 | 330 | 233 |
| NOMINAL SIZE DN |
R3 | R4 | R5 | T | D | WELD LEG HEIGHT | SWL | Weight kg |
|||
| Z1 | KN | t | |||||||||
| 310 | 142 | 140 | 198 | 32 | 38 | 8 | 471 | 48 | 257 | ||
| 360 | 140 | 138 | 196 | 34 | 40 | 8.5 | 687 | 70 | 286 | ||
| A: A certain welding method can vary while maintaining the same welding capacity/strength. B: The SWL values in the table are for reference only. These reference values are calculated based on the load values in Appendix A. The SWL can be adjusted according to the actual load conditions, and the actual marking values should be approved by both the user and the manufacturer. C: The calculated weight is for reference only. |
|||||||||||

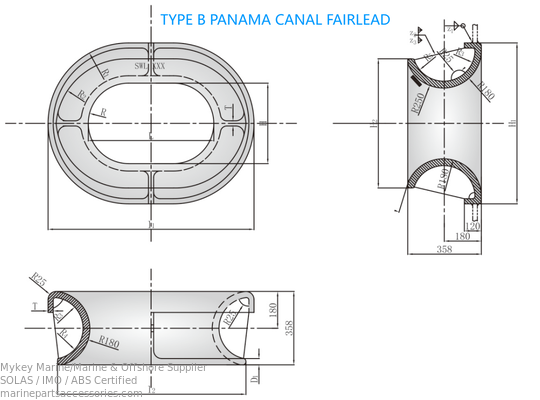

| THE DIMENSIONS AND SWL OF TYPE B PANAMA CANAL FAIRLEAD | mm | ||||||||||
| NOMINAL SIZE DN |
L | L1 | L2 | H | H1 | H2 | R | R1 | R2 | R3 | R4 |
| 310 | 310 | 720 | 681 | 260 | 670 | 453 | 130 | 335 | 226.5 | 149 | 147 |
| 360 | 360 | 770 | 733 | 260 | 670 | 456 | 130 | 335 | 228 | 147 | 145 |
| NOMINAL SIZE DN |
R5 | T | D1 | θ | WELD LEG HEIGHT | SWL | Weight kg |
||||
| z1 | z2 | z3 | KN | t | |||||||
| 310 | 205 | 25 | 31 | 44° | 10 | 6 | 4 | 687 | 70 | 228 | |
| 360 | 203 | 27 | 33 | 43° | 10 | 6 | 4 | 775 | 79 | 248 | |
| A: A certain welding method can vary while maintaining the same welding capacity/strength. B: The SWL values in the table are for reference only. These reference values are calculated based on the load values in Appendix A. The SWL can be adjusted according to the actual load conditions, and the actual marking values should be approved by both the user and the manufacturer. C: The calculated weight is for reference only. |
|||||||||||
