| Brand Name: | OEM |
| Model Number: | TYPE C |
| MOQ: | 3 |
| Price: | NEGOTIABLE |
| Payment Terms: | T/T |
| Supply Ability: | 350 SETS/MONTH |

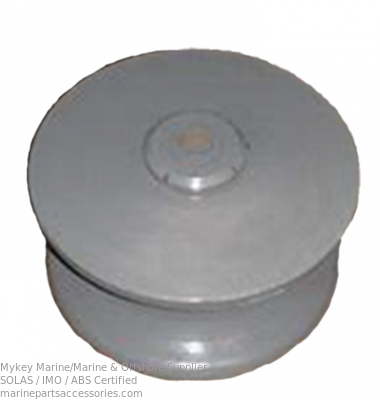

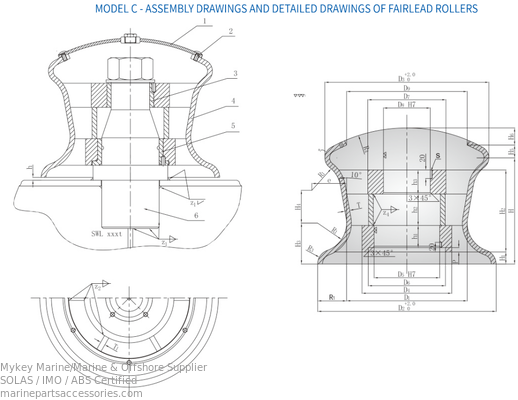

| SIZE SPECIFICATIONS AND SAFE WORKING LOADS OF TYPE C FAIRLEAD ROLLERS mm | ||||||||||||||||||
| NOMINAL SIZE DN |
D1 | D2 | D3 | D4 | D5 | D6 | D7 | D8 | D9 | R1 | R2 | R3 | R4 | H | H1 | |||
| 150 | 150 | 230 | 220 | 121 | 95 | 110 | 121 | 69 | 140 | 40 | 17 | 20 | 214 | 150 | 16 | |||
| 200 | 200 | 300 | 280 | 162 | 118 | 140 | 144 | 86 | 190 | 50 | 21 | 25 | 279 | 185 | 21 | |||
| 250 | 250 | 370 | 340 | 186 | 136 | 160 | 162 | 97 | 250 | 60 | 25 | 30 | 327 | 220 | 25 | |||
| 300 | 300 | 430 | 400 | 209 | 149 | 180 | 175 | 114 | 300 | 65 | 28 | 32 | 446 | 240 | 30 | |||
| 350 | 350 | 490 | 455 | 236 | 172 | 195 | 198 | 130 | 350 | 70 | 30 | 35 | 537 | 260 | 35 | |||
| 400 | 400 | 560 | 520 | 254 | 184 | 207 | 215 | 145 | 400 | 80 | 40 | 40 | 680 | 280 | 40 | |||
| 450 | 450 | 620 | 580 | 269 | 199 | 225 | 230 | 160 | 450 | 85 | 45 | 42 | 797 | 292 | 45 | |||
| 500 | 500 | 680 | 640 | 293 | 217 | 240 | 254 | 178 | 500 | 90 | 50 | 45 | 885 | 305 | 50 | |||
| Nominal size DN |
H2 | H3 | h4 | H5 | (H6) | e | h | h1 | h2 | h3 | P | IMMOBIUZATION SCREW | T | T1 | N | |||
| 150 | 115 | 56.6 | 44.92 | 18.0 | 22.4 | 47.9 | 5 | 35 | 45 | 35 | 7 | M6 | 10 | 6 | ||||
| 200 | 140 | 70.7 | 56.27 | 22.8 | 27.3 | 59.9 | 45 | 55 | 40 | 8 | ||||||||
| 250 | 170 | 84.9 | 67.89 | 26.4 | 35.7 | 72.0 | 6 7 |
55 | 65 | 50 | 9 | M8 | ||||||
| 300 | 187 | 91.6 | 74.25 | 26.3 | 38.8 | 78.1 | 62 | 70 | 55 | 10 | 12 | 8 | ||||||
| 350 | 203 | 99.0 | 82.6 | 23.8 | 46.3 | 84.6 | 68 | 75 | 60 | 11 12 |
16 | |||||||
| 400 | 220 | 113.1 | 71.3 | 29.0 | 50.0 | 92.6 | 75 | 80 | 65 | 19 | 12 | |||||||
| 450 | 238 | 119.9 | 67.31 | 33.8 | 52.3 | 96.9 | 87 | 81 | 70 | |||||||||
| 500 | 251 | 127.3 | 63.7 | 36.9 | 58.0 | 101.2 | 89 | 75 | 21 | |||||||||
| NOMINAL SIZE DN |
FOOT HEIGHT | SAFE WORKING LOAD | CALCULATE WEIGHT (kg) |
||||
| θ=90° | θ=0° | ||||||
| z1 | z2 | kN | t | kN | t | C型 | |
| 150 | 8 | 7 | 265 | 27 | 186 | 19 | 21 |
| 200 | 10 | 8 | 441 | 45 | 314 | 32 | 37 |
| 250 | 11 | 579 | 59 | 412 | 42 | 56 | |
| 300 | 12 | 726 | 74 | 510 | 52 | 86 | |
| 350 | 15 | 10 | 1040 | 106 | 736 | 75 | 127 |
| 400 | 17 | 12 | 1246 | 127 | 883 | 90 | 174 |
| 450 | 20 | 1599 | 163 | 1128 | 115 | 215 | |
| 500 | 23 | 14 | 1942 | 198 1373 | 253 | ||
| a) θ is the angle formed by the mooring rope passing through the roller guide (refer to Appendix A). b) The safe working load (SWL) is calculated based on the condition where the rope is under the maximum allowable load, with the angle formed by the rope passing through the roller being 90° (i.e., θ = 90°) and 180° (i.e., θ = 0°). The safe working load is determined according to the assessment method in Appendix A and is for reference only. The safe working load can be adjusted according to the actual load conditions. The actual indicated safe working load should be a value agreed upon by the manufacturer and the user. c) The calculation weight is for reference only. |
|||||||
