| Brand Name: | OEM |
| Model Number: | FRWH335 |
| MOQ: | 5 |
| Price: | NEGOTIABLE |
| Payment Terms: | T/T |
| Supply Ability: | 500 SETS/MONTH |

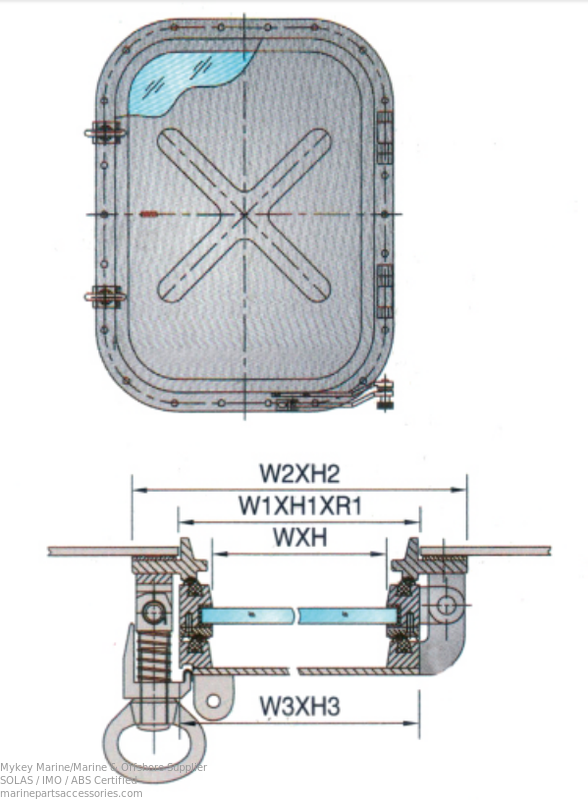

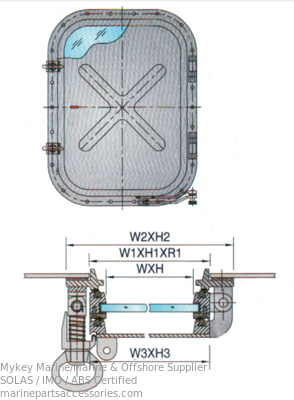

| ALUMINIUM RECTANGULAR INWARD SIDE-HINGED MARINE WINDOW WITH DEADLIGHT | |||||||||
| TYPE | LIGHT SIZE WXH |
WALL CUT SIZE W1XH1XR1 |
OUTLINE SIZE W2XH2XR2 |
DEADLIGHT SIZE W3XH3 |
|||||
| Inner left L1 Inner right R1 |
300X425 | 352X477XR76 | 424X549 | 350X475 | |||||
| 355X500 | 407X552XR76 | 479X624 | 405X550 | ||||||
| 400X560 | 452X612XR76 | 524X684 | 450X610 | ||||||
| 450X630 | 502X682XR126 | 574X754 | 500X680 | ||||||
| 500X710 | 552X762XR126 | 624X834 | 550X760 | ||||||
| 560X800 | 612X852XR126 | 684X924 | 610X850 | ||||||
| Example Of Marking: Aluminium rectangularinward side-hinged marine window with deadlight (transparent size:450×630mm,left inward opening(L1)) ALUMINIUM RECTANGULAR INWARD SIDE-HINGED MARINE WINDOw WITH DEADLIGHT 450×630-L1GB/T 5746-2014 THIS PRODUCTHAS BEEN WIDELY USEDON WARSHIPS,CHEMICALTANKERSAND HIGH-SPEEDVESSELS,ANDFEATURES GOOD TIGHTNESS. |
|||||||||
