| Brand Name: | OEM |
| Model Number: | YPD-2326S |
| MOQ: | 1 |
| Price: | NEGOTIABLE |
| Payment Terms: | T/T |
| Supply Ability: | 180 SETS MONTHLY |

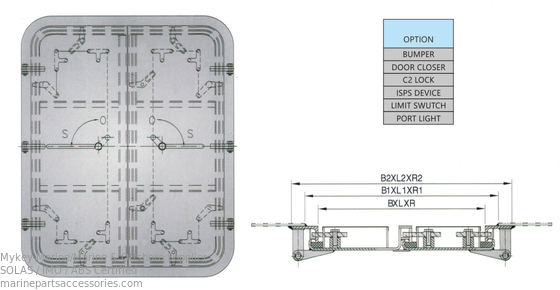

| STEEL DOUBLE-LEAF QUICK-ACTING WEATHERTIGHT DOOR | ||||||
| SIZE OF DOORWAY BXL |
SIZE OF B.H.OPENING B1XL1XR1 |
SIZE OF OUTLINE B2XL2 |
THICKNESS T |
WEIGHT KG |
||
| 1000×1600×R100 | 1100×1700×R150 | 1200×1800×R200 | 6 | 203 | ||
| 8 | 241 | |||||
| 1200×1600×R100 | 1300×1700×R150 | 1400×1800×R200 | 6 | 230 | ||
| 8 | 265 | |||||
| 1000×1700×R100 | 1100×1800×R150 | 1200×1900×R200 | 6 | 216 | ||
| 8 | 247 | |||||
| 1200×1700×R100 | 1300×1800×R150 | 1400×1900×R200 | 6 | 241 | ||
| 8 | 278 | |||||
| 1200×1800×R100 | 1300×1900×R150 | 1400×2000×R200 | 6 | 250 | ||
| 8 | 289 | |||||
| Example of Marking: The through-hole size is 1000X1600,and the door panel thickness is 8mm.It is a steel double-leaf quick-acting STEEL DOUBLE-LEAFQUICK-ACTING WEATHERTIGHT DOOR 1000X1600-8-5.1&61 Compliant with GB/T 3477-2023 |
||||||
