| Brand Name: | OEM |
| Model Number: | YPD-2326 |
| MOQ: | 5 |
| Price: | NEGOTIABLE |
| Payment Terms: | T/T |
| Supply Ability: | 200 SETS MONTHLY |

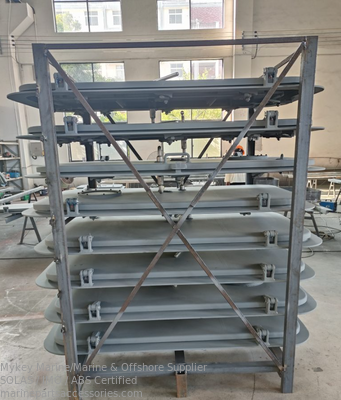

| TYPE AF/AY MARINE WEATHERTIGHT SINGLE-LEAF STEEL DOOR | |||||||||||||||
| Type A door frame: Suitable for single-layer or structures with significant thickness variations, featuring 3 or 4 reverse-fixed frames (counterframes), it is highly installable and commonly found in residential areas or general cabins. | |||||||||||||||
| SIZE OF DOORWAY HXW |
SIZE OF DOOR H1XW1 |
SIZE OF B.H.OPENING H2XW2 |
THICK.OF DOORLEAF |
STIFFENER | QTY.AND INSTALL. OF DOGS |
WEIGHT KG |
|||||||||
| SHIP LENGTH(m) | |||||||||||||||
| AF | AY | ≤80 | >80 | ≤80 | 80~120 | 120~150150~210210~300 | H3 | QTY | 6mm | 8mm | |||||
| 1200×600 | 1255×655 | 1300×700 R80 | 1300×700 R150 | 6 | —— | 75×6 | —— | 一 | 一 | 350 | 6 | 123.80 | —— | ||
| 1400×600 | 1455×655 | 1500×700 R80 | 1500×700 R150 | 6 | 8 | —— | 65×9 | 65×9 | 75×9 | 75×9 | 380 | 6 | 152.33 | 176.56 | |
| 1400×700 | 1455×755 | 1500×800 R80 | 1500×800 R150 | 6 | 8 | —— | 75×9 | 75×12 | 75×12 | 90×12 | 380 | 6 | 158.26 | 180.00 | |
| 1400×750 | 1455×805 | 1500×850 R80 | 1500×850 R150 | 6 | 8 | —— | 75×9 | 75×12 | 90×12 | 90×12 | 380 | 6 | 162.24 | 192.33 | |
| 1400×800 | 1455×855 | 1500×900 R80 | 1500×900 R150 | —— | 8 | —— | 90×12 | 90×12 | 90×12 | 90×12 | 380 | 6 | —— | 204.66 | |
| 1400×900 | 1455×955 | 1500×1000 R80 | 1500×1000 R150 | —— | 8 | —— | 90×9 | 90×12 | 100×12 | 100×12 | 380 | 6 | —— | 222.47 | |
| 1500×600 | 1555×655 | 1600×700 R80 | 1600×700 R150 | —— | 8 | —— | 75×6 | 90×12 | 75×12 | 90×12 | 410 | 6 | —— | 164.43 | |
| 1500×700 | 1555×755 | 1600×800 R80 | 1600×800 R150 | —— | 8 | —— | 75×12 | 75×9 | 75×12 | 90×12 | 410 | 6 | —— | 188.62 | |
| 1500×800 | 1555×855 | 1600×900 R80 | 1600×900 R150 | —— | 8 | —— | 90×12 | 90×12 | 90×12 | 90×12 | 410 | 6 | —— | 217.80 | |
| 1600×600 | 1655×655 | 1700×700 R80 | 1700×700 R150 | —— | 8 | —— | 65×9 | 75×9 | 75×12 | 75×12 | 410 | 6 | —— | 188.14 | |
| 1600×700 | 1655×755 | 1700×800 R80 | 1700×800 R150 | —— | 8 | —— | 75×12 | 90×12 | 90×12 | 90×12 | 410 | 6 | —— | 217.14 | |
| 1600×750 | 1655×805 | 1700×850 R80 | 1700×850 R150 | —— | 8 | —— | 75×12 | 90×9 | 90×12 | 90×12 | 410 | 6 | —— | 216.48 | |
| 1600×800 | 1655×855 | 1700×900 R80 | 1700×900 R150 | —— | 8 | —— | 90×12 | 100×12 | 100×12 | 90×12 | 410 | 6 | —— | 219.14 | |
| 1600×900 | 1655×955 | 1700×1000 R80 | 1700×1000 R150 | —— | 8 | —— | 90×12 | 100×12 | 125×9 | 125×9 | 410 | 6 | —— | 242.57 | |
| 1650×650 | 1705×705 | 1750×750 R80 | 1750×750 R150 | —— | 8 | —— | 75×6 | 90×6 | 90×12 | 90×12 | 410 | 6 | —— | 186.59 | |
| 1650×700 | 1705×755 | 1750×800 R80 | 1750×800 R150 | —— | 8 | —— | 75×12 | 90×12 | 90×12 | 90×12 | 410 | 6 | —— | 200.59 | |
| 1700×600 | 1755×655 | 1800×700 R80 | 1800×700 R150 | —— | 8 | —— | 75×6 | 90×9 | 90×12 | 90×9 | 410 | 6 | —— | 179.59 | |
| 1700×700 | 1755×755 | 1800×800 R80 | 1800×800 R150 | —— | 8 | —— | 75×12 | 90×12 | 125×9 | 125×9 | 410 | 6 | —— | 205.25 | |
| 1700×800 | 1755×855 | 1800×900 R80 | 1800×900 R150 | —— | 8 | —— | 90×12 | 100×12 | 125×9 | 125×9 | 410 | 6 | —— | 230.90 | |
| Example of Marking: The through-hole size is 1600X600,the door panel thickness is 8mm,and the reinforcing rib is (65X9)mm.It is an A-grade square-corner Weathertight single-leaf steel door(right outward opening) WEATHERTIGHT STEEL DOOR AF1600X600-8-65X9-5.1GB/T 3477-2023 |
|||||||||||||||
