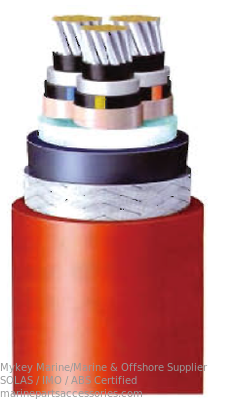

Crosslinked Polyethylene Insulated Marine Power Cable 8.7/15kV Electrical Wire For Boats

Crosslinked Polyethylene Insulated Marine Power Cable 8.7/15kV Electrical Wire For Boats

Crosslinked Polyethylene Insulated Marine Power Cable 8.7/15kV Electrical Wire For Boats

Brand Name: JIANGNAN CABLE
Model Number: CJPJ/SC CJV/DNSA CJPJ85/SC CJPJ95/SC CJV82/DNSA CJV92/DNSA
MOQ: 100 Meter
Price: US$1.00~US$20.00
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CCS BV
Product Name:
Marince Power Cable
Rated Voltage:
8.7/15kV
Executive Standard:
IEC60092-354
Application:
Electric Power Devices In Water Structures
Allowable Long-term Operating Temperature:
90°C
Minimum Bending Radius:
Single-core Cable - 12 Times Cable Outer Diameter
Packaging Details:
DRUM
Highlight:

Polyethylene Insulated Marine Power Cable

,

Crosslinked Polyethylene Marine Power Cable

,

8.7/15kV Electrical Wire For Boats

Product Description

Crosslinked Polyethylene Insulated Marine Power Cable with 8.7/15kV Rated Voltage and Flame Retardant Properties

Crosslinked Polyethylene Insulated Marine Power Cable
Rated voltage: 8.7/15kV
Executive Standard
This product implements IEC60092-354 standard.
Cable Types and Specifications
  • CJPJ/SC: XLPE insulated crosslinked polyolefin outer sheathed Marine power cable type SC
  • CJV/DNSA: XLPE insulated PVC sheathed marine power cable DA/SA type
  • CJPJ85/SC: XLPE insulated crosslinked polyolefin inner sheath, copper wire braided armoring, crosslinked polyolefin outer sheath marine power cable type SC
  • CJPJ95/SC: XLPE insulated crosslinked polyolefin inner sheathed wire braided armoring crosslinked polyolefin outer sheathed marine power cable Type SC
  • CJV82/DNSA: XLPE insulated PVC inner sheathed copper wire braided armored PVC outer sheathed marine power cable DA/SA type
  • CJV92/DNSA: XLPE insulated PVC inner sheathed wire braided armored PVC outer sheathed marine power cable DA/SA type
Product Application
This product is suitable for electric power devices in water structures such as cabins and offshore oil platforms.
Cable Parameters
    Crosslinked Polyethylene Insulated Marine Power Cable at rated voltage of 8.7/15kV
No.of cores
×sectional
area		 CJPJ/SC  CJV/DASA CJPJ85/SC   CJPJ95/SC CJV82/DASA CJV92/DASA
Over diam.mm Approx.
weight		 Over diam.mm Approx.weight
Nom. Max Nom. Max TYPE 82/85 TYPE 92/95
1×25 21.8  25.0  738  25.6  29.4  1072  1057
1×35 23.0  26.4  873  27.0  31.0  1257  1238
1×50 24.2  27.8  1023  28.2  32.4  1425  1405
1×70 26.0  29.9  1279  30.2  34.7  1724  1703
1×95 27.7  31.8  1569  31.9  36.6  2041  2018
1×120 29.1  33.4  1840  33.5  38.5  2353  2329
1×150 30.9  35.5  2158  35.3  40.5  2700  2674
1×185 32.5  37.3  2535  36.9  42.4  3102  3076
1×240 35.1  40.3  3142  39.7  45.6  3774  3745
1×300 37.4  43.0  3782  42.2  48.5  4475  4445
3×25 44.8  51.5  2940  49.8  57.3  3797  3760
3×35 47.1  54.2  3417  52.5  60.4  4412  4365
3×50 49.9  57.4  4000  55.5  63.9  5081  5031
3×70 53.6  61.6  4908  59.4  68.3  6094  6042
3×95 57.4  66.0  5986  63.4  72.9  7288  7231
3×120 60.4  69.5  6952  66.8  76.8  8486  8407
3×150 64.1  73.7  8079  70.7  81.3  9738  9654
3×185 67.7  77.9  9450  74.5  85.7  11240  11151
Note:  Data above only for reference.confirmation needed by our technical department. We reserve the right to alter all information without notice.

Technical Characteristics
  • Rated voltage: 3.6/6(7.2)kV, 6/10(12)kV, 8.7/15(17.5)kV
  • Allowable long-term operating temperature of cable conductor: 90°C
  • Flame retardant performance conforms to IEC 60332-1-2 and IEC 60332-3-22 standards
  • Fire resistance conforms to IEC 60331-21 standard
  • Minimum bending radius: single-core cable - 12 times cable outer diameter; 3-core cable - 9 times cable outer diameter
Cable Identification
Insulation core identified by color tape; sheath printed with factory name, type, voltage, specification, length mark, etc.

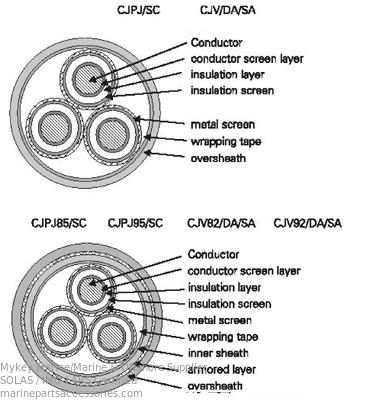

Cable Structure Diagram
Crosslinked Polyethylene Insulated Marine Power Cable 8.7/15kV Electrical Wire For Boats 0
