6/10kV Marine Power Cables Crosslinked Polyethylene Boat Power Cable

Brand Name:	JIANGNAN CABLE
Model Number:	CJPJ/SC CJV/DNSA CJPJ85/SC CJPJ95/SC CJV82/DNSA CJV92/DNSA
MOQ:	100 Meter
Price:	US$1.00~US$20.00
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CCS BV

Product Name:

Marine Power Cable

Conductor:

Copper Or Tinned Copper Conductor

Insulation:

Crosslinked Polyethylene

Armor Material:

Tinned Copper Wire Braid/Galvanized Steel Wire Braid

Oversheath Material:

Crosslinked Polyolefin

Combustion Characteristic:

Fire-resistant

Packaging Details:

DRUM

Highlight:

6/10kV Marine Power Cables

Marine Power Cables Crosslinked Polyethylene

Crosslinked Polyethylene Boat Power Cable

Product Description

6/10kV Rated Voltage Marine Power Cable Crosslinked Polyethylene Insulation and Flame Retardant Properties

6/10kV Rated Voltage Marine Power Cable

Crosslinked Polyethylene Insulated Marine Power Cable at rated voltage

Executive Standard

This product implements: IEC60092-354 standard.

Cable Categories and Types

CJPJ/SC: XLPE insulated crosslinked polyolefin outer sheathed Marine power cable type SC
CJV/DNSA: XLPE insulated PVC sheathed marine power cable DA/SA type
CJPJ85/SC: XLPE insulated crosslinked polyolefin inner sheath Copper wire braided armoring crosslinked polyolefin outer sheath marine power cable type SC
CJPJ95/SC: XLPE insulated crosslinked polyolefin inner sheathed wire braided armoring crosslinked polyolefin outer sheathed marine power cable Type SC
CJV82/DNSA: XLPE insulated PVC inner sheathed copper wire braided armored PVC outer sheathed marine power cable DA/SA type
CJV92/DNSA: XLPE insulated PVC inner sheathed wire braided armored PVC outer sheathed marine power cable DA/SA type

Product Application

This product is suitable for the use of electric power devices in water structures such as cabins and offshore oil platforms.

Cable Parameters

Crosslinked Polyethylene Insulated Marine Power Cable at rated voltage of 6/10KV
No.of cores ×sectional area	CJPJ/SC CJV/DASA			CJPJ85/SC CJPJ95/SC CJV82/DASA CJV92/DASA
	Over diam.mm		Approx. weight	Over diam.mm		Approx.weight
	Nom.	Max	Approx. weight	Nom.	Max	TYPE 82/85	TYPE 92/95
1×16	18.0	20.7	517	21.0	24.1	764	752
1×25	19.4	22.3	638	23.0	26.4	926	913
1×35	20.6	23.6	769	24.2	27.8	1072	1058
1×50	21.8	25.0	914	25.6	29.4	1248	1233
1×70	23.6	27.1	1162	27.6	31.7	1555	1536
1×95	25.5	29.3	1460	29.7	34.1	1898	1877
1×120	26.7	30.7	1711	30.9	35.5	2168	2146
1×150	28.5	32.7	2022	32.7	37.6	2507	2483
1×185	30.1	34.6	2393	34.5	39.6	2922	2897
1×240	32.7	37.6	2990	37.1	42.6	3561	3534
1×300	35.0	40.2	3620	39.6	45.5	4250	4222
3×16	36.4	41.9	1989	41.2	47.4	2674	2644
3×25	39.6	45.6	2468	44.4	51.1	3209	3176
3×35	42.0	48.3	2922	47.0	54.1	3730	3695
3×50	44.8	51.5	3477	50.0	57.5	4362	4325
3×70	48.4	55.7	4347	53.6	61.7	5299	5260
3×95	52.3	60.1	5386	57.9	66.6	6514	6463
3×120	55.3	63.6	6322	61.1	70.2	7544	7490
3×150	58.9	67.8	7412	64.9	74.7	8746	8688
3×185	62.6	72.0	8746	69.2	79.5	10369	10287
Note: Data above only for reference.confirmation needed by our technical department. We reserve the right to alter all information without notice.

Main Technical Characteristics

The rated voltage of the cable is 3.6/6(7.2)kV, 6/10(12)kV, 8.7/15(17.5)kV
The allowable long-term operating temperature of the cable conductor is 90°C
The flame retardant performance of the cable conforms to IEC60332-1-2/IEC60332-3-22 standard
The fire resistance of the cable conforms to IEC60331-21 standard
The minimum bending radius of a single-core cable is 12 times the outer diameter of the cable, and the minimum bending radius of a 3-core cable is 9 times the outer diameter of the cable

Identification

The insulation core is identified by color tape
Sheath printed with factory name, type, voltage, specification, length mark, etc.

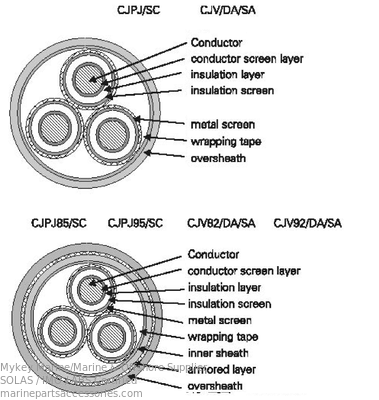

Structure Diagram
