Flameproof Marine Communication Cable 150/250V Boat Electrical Wire

Flameproof Marine Communication Cable 150/250V Boat Electrical Wire

Flameproof Marine Communication Cable 150/250V Boat Electrical Wire

Brand Name: JIANGNAN CABLE
Model Number: CHJVP80/DA/SA、CHJPJP80/SC、CHJPFP80/SC CHJVP90/DA/SA、CHJPJP90/SC、CHJPFP90/SC CHJVP80/NA、CHJPJP80/NC、CHJPFP80/NC CHJVP90/NA、CHJPJP90/NC、CHJPFP90/NC
MOQ: 100 Meter
Price: US$1.00~US$20.00
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CCS BV
Screen Type:
Core Or Pair Screen
Conductor:
Flexible Conductor
Cabel Type:
Marine Communication Cable
Combustion Characteristic:
Bunched Flame Retardant Class A
Oversheath:
Polyvinyl Chloride
Certificate:
BV CCS Etc
Packaging Details:
DRUM
Highlight:

Flameproof Marine Communication Cable

,

150/250V Boat Electrical Wire

,

Marine Communication Cable 150/250V

Product Description
Crosslinked Polyethylene Insulated Marine Communication Cable at Rated Voltage of 150/250V
Executive Standard
This product implements: IEC60092-376 standard.
Cable Categories and Types
CHJV/DA/SA/NA: XLPE insulated PVC sheathed marine communication cable DA SA NA type
CHJVP/DA/SA/NA: XLPE insulated pair twisted individual screen polyvinyl chloride sheathed marine communication cable DA SA NA type
CHJV80/DASA/NA: XLPE insulated polyvinyl chloride inner sheathed copper wire braided armoring communication cable for marine type DA SANA
CHJVP80/DAVSA/NA: XLPEinsulated pai twisted individual screen polyviny choride inner sheathed copper wire braided amored for marine communication cable type DASA NA
CHJV90/DA/SA/NA: XLPE insulated polyvinyl chloride inner sheathed steel wire braided armored communication cable for marine type DA SA NA
CHJVP90/DA/SA/NA: XLPE insulated pai twisted indvidual screen polyviny chorideinner sheathed stel wre braided armored for marine communiction cable type DASA NA
CHJ82/DA/SA/NA: XLPE insulated copper wire braided armoring PVC sheathed marine communication cable DA SA NA type
CHJV82/DASA/NA: XLPE insulated PVCinner sheathed copper wire braided armoring PVC outer sheathed marine communication cable DA SA NA type
CHJP82/DASA/NA: XLPE insulated pair twisted individual screen copper wire braided armoring PVC sheathed marine communication cable DA SANA type
CHJVP82/DASA/NA: XLPE insulated twisted individual screen PVCinner sheathed copper wire braided amoning PVC outer sheathed marine communication cable
CHJV92/DASA/NA: XLPE insulated PVCinner sheathed wire braided armoring PVC outer sheathed Marine communication cable DASA NA type
CHJVP92/DA/SA/NA: XLPEinsulated pair twisted individual screen PVC inner sheathed wire braided armoring PVCouter sheathed marine communication cable DASA NA type
CHJPJ/SC/NC: XLPE insulated crosslinked polyolefin outer sheathed marine communication cable SC NC type
CHJPJP/SC/NC: Cross-Iinked polyethylene insulated pai twisted individual screen cross-linked polyolefin outer sheathed marine communication cable
CHJPJ80/SC/NC: Cross-lnked polethylene inslated pai twisted individual screen cros-lnked polyolefininner sheathed copper wire braided armored marine communication cable
CHJPJP80/SC/NC: CrosS-linked polyethylene insulated pair twisted indvidual scren cross-Inked polyolefn inne sheathe operwie braided armored marine commuicafion cable
CHJPJ90/SC/NC: Cross-inked polyethylene insulated cross-linked polyolefin inner sheathed steel wire braided armored marine communication cable Type SC NC
CHJPJP90/SC/NC: Cross-Inked polyethylene insulated pair twisted individual screencros-Inked polyolefi inner sheathed stel wire braided armored marine communicafion cable Type SC NC
CHJ85/SC/NC: Cross-inked polyethylene insulated copper wire braided armored cross-inked polyolefin outer sheathed marine communication cable
CHJP85/SC/NC: Cros linked polyethylen islatedpair twisted idvidual scren coper wire braided armored cros-Iinked polyolefn outer sheathed marne communication cable
CHJPJ85/SC/NC: XLPE insulated croslinked poyolefininne sheathed cope wire braded amoning roslinked oyolefi outer sheated manine comunictoncable
CHJPJP85/SC/NC: XLPE islated pr wistedindida scren cos-nked poycefinimnershathed oper we braded rmoing uos-Inked poyolefi outershesthe main commuicationcble
CHJPJ95/SC/NC: XLPEinsulated cToss-Inked polyolefin inner sheathed stel wire braided armoning coss-Inked poyolefin outer sheathed manne communication cable
CHJPJP95/SC/NC: XLPE islated pa twstelindidua scren cos-Iikedpobolfi ime shath ste wie brade armurn crs-Inked poydefi nutershathe manine comunicaton cabe SCNC type
CHJPF/SC/NC: XLPE insulated polyolefin outer sheathed marine communication cable SC NC type
CHJPFP/SC/NC: XLPE insulated pair twisted individual screen polyolefin outer sheathed marine communication cable SC NC type
CHJPF80/SC/NC: XLPEinsulated polyolefin inner sheath copper wire braided armoring marine communication cable SC NC type
CHJPFP80/SC/NC: XLPE insulated pair twisted individual screen polyolefin inner sheath copper wire braided armoring marine communication cable SCNCtype
CHJPF90/SC/NC: XLPE insulated pair twisted indvidual screen polyolefininer sheath steel wire braided amoning mane communication cable SC NC type
CHJPFP90/SC/NC: XLPE insulated pai twisted indvidual screen polyolefininer sheath stel wire braided armoring marine communication cable SC NC type
CHJ86/SC/NC: XLPE insulated copper wire braided armoring polyolefin outer sheathed marine communication cable SC NC type
CHJP86/SC/NC: XLPE insulated ai twisted individual screen copper wire braided armoring polyolefin sheathed marine communication cable SC NC type
CHJPF86/SC/NC: XLPE insulated polyolefin inner sheathed copper wire braided amoring polyolefin outer sheathed manne communication cable SC NC type
CHJPFP86/SC/NC: XLPEinsulation pir twise indidal scren pobydefn ne sheathed oper wie braided armoingpodyolefi outer sheathe main ommunication cable SCNC type
CHJPF96/SC/NC: XLPE insulated polyolefin inner sheathed wire braided amoring polyolefin outer sheathed manine communication cable SCNC type
CHJPFP96/SC/NC: XLPEislated ar twsedindvidual sreen pdyolefininersheathed wire braided amoing polyolefi outer shathed marine communication cable SCNC type
Product Application

This product is suitable for signal transmission and control systems in telecommunications,electronic computers and information processing equipment.

Cable Parameters
Crosslinked Polyethylene Insulated Marine Communication Cable at Rated Voltage of 150/250V
No.of cores
×sectional
   area		 CHJVP80/DA/SA,CHJPJP80/SC,CHJPFP80/SC
CHJVP90/DA/SA,CHJPJP90/SC,CHJPFP90/SC		 CHJVP80/NA,CHJPJP80/NC,CHJPFP80/NC
CHJVP90/NA,CHJPJP90/NC,CHJPFP90/NC
Over diam.mm Approx.weight Over diam.mm Approx.weight
 No. ×mm² Nom. Max TYPE 80 TYPE 90 Nom. Max TYPE 80 TYPE 90
  1*2*0.5 7.0  9.6  72  70  8.0  10.6  84  81
  2*2*0.5 10.1  13.3  180  176  12.2  15.5  249  244
  3*2*0.5 10.8  14.2  200  195  12.9  16.3  268  263
  4*2*0.5 11.9  15.4  241  236  14.4  18.0  325  317
  5*2*0.5 12.9  16.6  293  286  15.7  19.5  413  402
  7*2*0.5 14.3  18.3  344  336  17.0  21.0  456  444
 10*2*0.5 18.0  22.7  512  499  22.0  26.7  666  650
 12*2*0.5 18.6  23.4  556  543  22.7  27.5  729  713
 14*2*0.5 19.5  24.5  627  613  23.9  28.8  837  816
 16*2*0.5 20.5  25.7  693  679  25.3  30.5  945  923
 19*2*0.5 22.0  27.4  772  756  26.7  32.1  1015  991
 24*2*0.5 25.7  31.8  1004  980  31.5  37.6  1291  1264
 27*2*0.5 26.2  32.4  1124  1098  32.1  38.4  1440  1410
 30*2*0.5 27.1  33.5  1224  1198  33.3  39.7  1564  1533
 33*2*0.5 28.3  34.9  1283  1257  34.7  41.4  1663  1633
 37*2*0.5 29.4  36.2  1366  1340  36.3  43.1  1734  1702
 1*2*0.75 7.8  10.4  87  84  8.8  11.4  99  96
 2*2*0.75 11.9  15.1  233  228  13.7  16.9  317  310
 3*2*0.75 12.5  15.9  260  254  14.9  18.2  352  345
 4*2*0.75 13.8  17.3  317  310  16.2  19.7  434  423
 5*2*0.75 15.2  19.0  382  373  17.9  21.6  521  509
 7*2*0.75 16.5  20.5  462  450  19.4  23.4  577  564
 10*2*0.75 21.1  25.8  668  653  25.1  29.8  880  859
 12*2*0.75 22.0  26.8  742  726  25.9  30.7  963  941
 14*2*0.75 23.1  28.0  821  805  27.4  32.4  1062  1039
 16*2*0.75 24.5  29.7  963  942  28.9  34.1  1201  1176
 19*2*0.75 25.8  31.2  1053  1030  30.7  36.1  1312  1285
24*2*0.75 30.4  36.5  1336  1309  36.2  42.3  1668  1636
27*2*0.75 31.0  37.3  1494  1464  37.2  43.4  1858  1824
30*2*0.75 32.1  38.5  1629  1598  38.5  44.9  2077  2034
33*2*0.75 33.5  40.2  1718  1687  40.0  46.6  2215  2174
37*2*0.75 34.8  41.7  1827  1796  41.7  48.6  2308  2264
1*2*1 8.2  10.8  100  97  9.2  11.8  119  115
2*2*1 12.6  15.8  268  262  14.8  18.0  368  360
3*2*1 13.3  16.6  315  308  15.6  19.0  403  395
4*2*1 14.9  18.4  383  375  17.1  20.6  498  487
5*2*1 16.2  19.9  474  463  18.8  22.6  600  587
7*2*1 17.8  21.7  562  549  20.5  24.4  686  672
10*2*1 22.8  27.4  811  795  26.6  31.2  1040  1017
12*2*1 23.5  28.3  925  905  27.6  32.4  1126  1103
14*2*1 24.9  29.8  1044  1022  29.0  34.0  1267  1242
16*2*1 26.2  31.4  1160  1137  30.8  36.0  1434  1407
19*2*1 27.8  33.2  1295  1271  32.5  37.9  1553  1525
24*2*1 32.5  38.7  1643  1613  38.5  44.7  1999  1965
27*2*1 33.2  39.5  1837  1806  39.4  45.6  2287  2243
30*2*1 34.6  41.1  2005  1972  41.0  47.4  2485  2440
33*2*1 36.2  42.8  2127  2094  42.6  49.2  2662  2618
37*2*1 37.7  44.6  2271  2237  44.4  51.3  2787  2740
  1*2*1.5 9.2  11.8  127  124  10.2  12.8  141  137
  2*2*1.5 14.8  18.0  356  349  16.6  19.8  476  465
  3*2*1.5 15.6  19.0  426  415  17.8  21.1  533  521
  4*2*1.5 17.3  20.8  516  504  19.4  23.0  627  614
  5*2*1.5 18.8  22.6  607  594  21.5  25.2  757  742
  7*2*1.5 20.7  24.6  719  704  23.8  27.7  864  848
10*2*1.5 26.8  31.4  1078  1055  30.6  35.2  1307  1281
12*2*1.5 27.6  32.4  1203  1178  31.5  36.3  1438  1411
14*2*1.5 29.0  34.0  1339  1313  33.4  38.4  1618  1589
16*2*1.5 30.8  36.0  1511  1484  35.2  40.4  1810  1779
19*2*1.5 32.5  37.9  1685  1656  37.6  43.0  1985  1953
24*2*1.5 38.5  44.7  2135  2101  44.3  50.5  2613  2567
27*2*1.5 39.6  45.8  2448  2403  45.3  51.6  2908  2858
30*2*1.5 41.0  47.4  2668  2621  47.2  53.6  3160  3107
33*2*1.5 42.8  49.4  2864  2819  49.2  55.8  3431  3380
37*2*1.5 44.4  51.3  3023  2976  51.5  58.4  3554  3501
  1*2*2.5 10.0  12.6  154  150  11.2  13.8  169  165
  2*2*2.5 16.2  19.5  456  445  18.2  21.5  581  568
  3*2*2.5 17.4  20.7  534  522  19.3  22.7  642  629
  4*2*2.5 19.0  22.5  637  624  21.4  24.9  776  761
  5*2*2.5 21.0  24.7  769  754  23.8  27.5  938  922
  7*2*2.5 23.2  27.2  918  902  25.9  29.9  1118  1095
10*2*2.5 29.8  34.5  1370  1344  33.6  38.3  1649  1621
12*2*2.5 30.8  35.6  1537  1510  34.7  39.5  1802  1772
14*2*2.5 32.6  37.6  1718  1689  36.8  41.8  2032  2000
16*2*2.5 34.4  39.6  1943  1912  39.2  44.4  2303  2269
19*2*2.5 36.5  41.9  2175  2143  41.4  46.8  2569  2527
24*2*2.5 43.3  49.4  2845  2799  49.1  55.2  3289  3238
27*2*2.5 44.2  50.4  3178  3128  50.6  56.8  3694  3639
30*2*2.5 46.0  52.4  3467  3415  52.6  59.0  4177  4100
33*2*2.5 48.0  54.6  3706  3655  54.8  61.5  4498  4422
37*2*2.5 50.3  57.1  3960  3907  57.0  63.8  4716  4637
Note:  Data above only for reference.confirmation needed by our technical department. We reserve the right to alter all information without notice.
Technical Characteristics
  • The rated AC voltage of the cable is 150/250V;
  • The allowable long-term operating temperature of the cable conductor is 90℃
  • The flame retardant performance of the cable conforms to IEC60332-1-2 or IEC60332-3-22 standards
  • The fire resistance conforms to IEC60331-21 standard
  • The minimum bending radius of the cable is 6 times the diameter of the cable
Identification
  • The insulated core is white and blue,with printing black digital identification;
  • The sheath is printed with the name of the manufacturer,type,voltage,specification,length mark, etc.

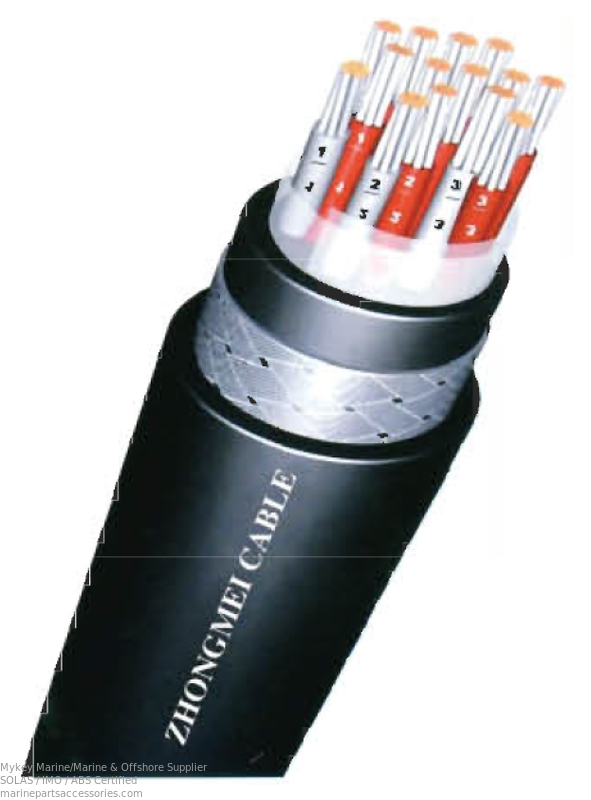

Structure Diagram
   Flameproof Marine Communication Cable 150/250V Boat Electrical Wire 0 Flameproof Marine Communication Cable 150/250V Boat Electrical Wire 1
Tags:

shipboard power cable

boat power cables

marine power wire

RELATED PRODUCTS
Flameproof Marine Control Cable CKEF82 DA SA Boat Motor Control Cables

Flameproof Marine Control Cable CKEF82 DA SA Boat Motor Control Cables

Chat Now
Crosslinked Polyethylene Insulated Marine Power Cable 8.7/15kV Electrical Wire For Boats

Crosslinked Polyethylene Insulated Marine Power Cable 8.7/15kV Electrical Wire For Boats

Chat Now
CJ92 CJ95 CJ96 Series Marine Power Cable Fireproof Boat Power Cable

CJ92 CJ95 CJ96 Series Marine Power Cable Fireproof Boat Power Cable

Chat Now
Fire Resistant Boat Cable Wire Tinned Copper Conductor Marine Cables

Fire Resistant Boat Cable Wire Tinned Copper Conductor Marine Cables

Chat Now
XLPE Insulated Marine Communication Cable Wire For Boat Electronics

XLPE Insulated Marine Communication Cable Wire For Boat Electronics

Chat Now
+86 15258895859
Quick link
Home About Us Products Cases News download video CONTACT US
Quick Contact

Address

No.196 Of LongPu Road,Fuyang district, Hangzhou City, ZheJiang Province 311400,China

Tel

86-15258895859

+86 15258895859
Our Newsletter
Subscribe to our newsletter for discounts and more.
Privacy Policy |  Sitemap  | China Good Quality Marine Ventilator Supplier. Copyright © 2009-2026 Hangzhou Fuyang Mykey Imp & Exp Co., Ltd. . All Rights Reserved.
