| Brand Name: | OEM |
| Model Number: | A SERIES AND B SERIES |
| MOQ: | 1 |
| Price: | NEGOTIABLE |
| Payment Terms: | T/T |
| Supply Ability: | 100 SETS/MONTH |

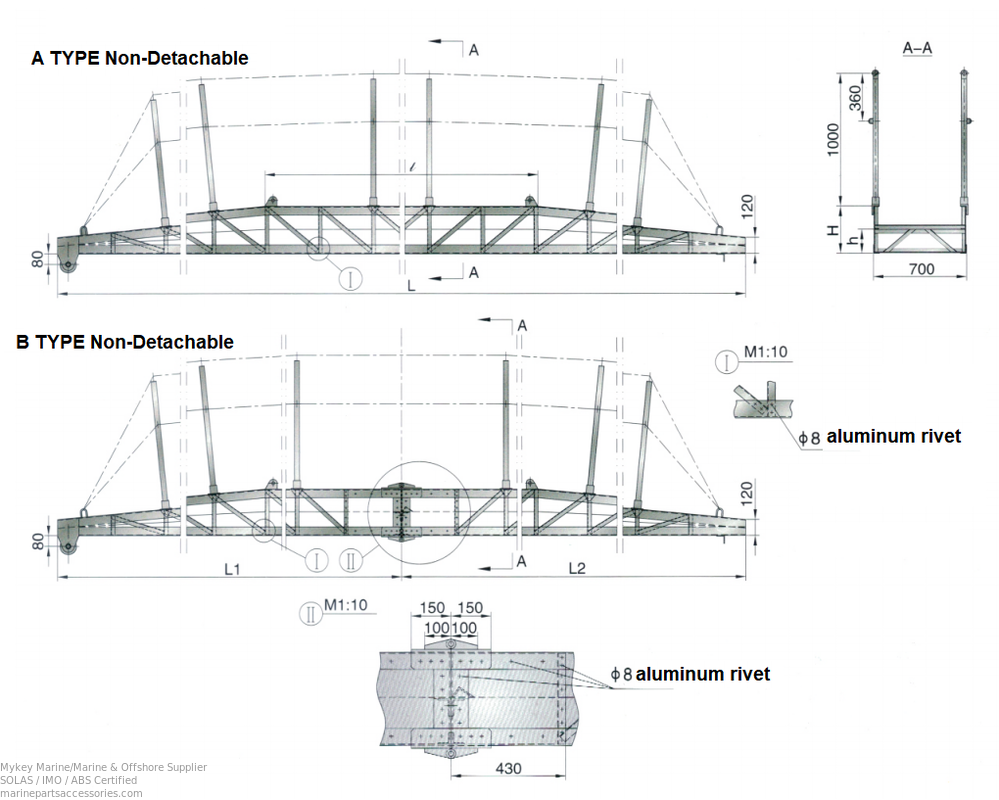

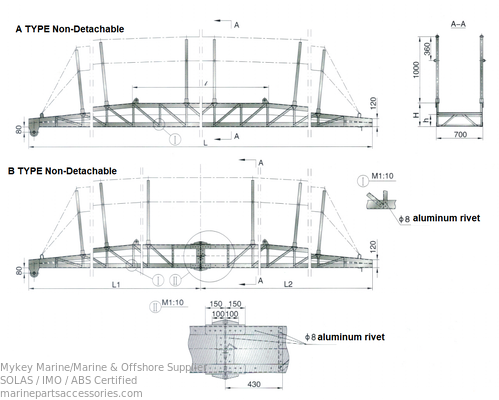

| Non-Detachable ALUMINIUM GANGWAY | ||||||
| Model | Dimensions mm | Weight kg | ||||
| L | I | H | h | |||
| A8 | 8000 | 3200 | 350 | 180 | 182 | |
| A10 | 10000 | 4830 | 500 | 250 | 221 | |
| A12.5 | 12500 | 4830 | 550 | 300 | 296 | |
| A15 | 15000 | 7230 | 750 | 500 | 362 | |
| Example of Marking: A-type Aluminium Gangway With A Length L Of 8000mm Aluminium Gangway A8 CB*3116-82 |
||||||
| Detachable ALUMINIUM GANGWAY | ||||||
| Model | Dimensions mm | Weight kg | ||||
| L1 | L2 | H | h | |||
| B8 | 4000 | 4000 | 350 | 180 | 205 | |
| B10 | 5000 | 5000 | 500 | 250 | 244 | |
| B12.5 | 6250 | 6250 | 550 | 300 | 319 | |
| B15 | 7500 | 7500 | 750 | 500 | 388 | |
| Example of Marking: B-type Aluminium Gangway With A Length L Of 4000mm Aluminium Gangway B8 CB*3116-82 |
||||||
