DA SA NA Type Marine Power Cable 0.6/1kV Shore Power Cable For Boats

Brand Name:	JIANGNAN CABLE
Model Number:	CJV/DA/SA CJPJ/SC CJPF/SC CJV/NA CJPJ/NC CJPF/NC
MOQ:	100 Meter
Price:	US$1.00~US$20.00
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CCS BV

Item Name:

XLPE Insulated Marine Power Cable

Certificates:

CCS BV Etc

Operating Temperature:

90°C

No. Of Cores:

1~37

Flame Retardant Performance:

IEC60332-1-2 Or IEC60332-3-22 Standards

Combustion Characteristic:

Fire- Resistant

Packaging Details:

DRUM

Highlight:

NA Type Marine Power Cable

DA Type Marine Power Cable

0.6/1kV Shore Power Cable For Boats

Product Description

0.6/1kV Rated Voltage Flame Retardant XLPE Insulated Marine Power Cable with 90°C Operating Temperature CJV/DA/SA/NA

0.6/1kV Rated Voltage Flame Retardant XLPE Insulated Marine Power Cable

Operating Temperature: 90°C

Executive Standard

This product implements: IEC60092-353 standard.

Cable Types & Categories

CJV/DA/SA/NA: XLPE insulated polyvinyl chloride sheathed marine power cable DA SA NA type
CJV80/DA/SA/NA: XLPE insulated polyvinyl chloride inner sheathed copper wire braided armoring power cable for shipment type DA SA NA
CJV90/DA/SA/NA: XLPE insulated polyvinyl chloride inner sheathed steel wire braided armoring power cable for shipment type DA SA NA
CJV82/DA/SA/NA: XLPE insulated PVC inner sheathed copper wire braided armoring PVC outer sheathed marine power cable DA SA NA type
CJV92/DA/SA/NA: XLPE insulated PVC inner sheathed wire braided armoring PVC outer sheathed marine power cable DA SA NA type
CJPJ/SC/NC: XLPE insulated crosslinked polyolefin outer sheathed marine power cable SCNC type
CJPJ80/SC/NC: XLPE insulated XLPE inner sheathed copper wire braided armoring power cable for marine type SC NC
CJPJ90/SC/NC: XLPE insulated crosslinked polyolefin inner sheathed steel wire braided armoring power cable for marine type SC NC
CJPJ85/SC/NC: XLPE insulated crosslinked polyolefin copper wire braided armoring power cable for marine type SC NC
CJPJ95/SC/NC: XLPE insulated crosslinked polyolefin inner sheathed wire braided armoring crosslinked polyolefin outer sheathed marine power cable SCNC type
CJPF/SC/NC: XLPE insulated polyolefin sheathed marine power cable SCNC type
CJPF80/SC/NC: XLPE insulated polyolefin inner sheathed copper wire braided armoring power cable for marine type SC NC
CJPF90/SC/NC: XLPE insulated polyolefin inner sheathed steel wire braided armoring marine power cable SC NC type
CJPF86/SC/NC: XLPE insulated polyolefin inner sheathed copper wire braided armored polyolefin outer sheathed marine power cable SC NC type
CJPF96/SC/NC: XLPE insulated polyolefin inner sheathed wire braided armored polyolefin outer sheathed marine power cable SCNC type
CJPJR/SC: XLPE insulated crosslinked polyolefin sheathed marine power flexible cable type SC
CJPFR/SC: XLPE insulated polyolefin sheathed marine power flexible cable type SC
CJ82/DA/SA/NA: XLPE insulated copper wire braided armoring PVC sheathed marine power cable SC NC type
CJ92/DA/SA/NA: XLPE insulated wire braided armoring polyvinyl chloride sheathed marine power cable SCNC type
CJ85/SC/NC: XLPE insulated copper wire braided armoring crosslinked polyolefin outer sheathed marine power cable SC NC type
CJ95/SC/NC: XLPE insulated wire braided armoring crosslinked polyolefin outer sheathed marine power cable SC NC type
CJ86/SC/NC: XLPE insulated copper wire braided armoring polyolefin outer sheathed marine power cable SC NC type
CJ96/SC/NC: XLPE insulated wire braided armoring polyolefin outer sheathed marine power cable SC NC type

Product Application

This product is suitable for electric power and lighting equipment in water structures such as cabins and offshore oil platforms.

Cable Specifications

Rated Voltage of 0.6/1kV
No. of cores x sectional area	CJV/DA/SA CJPJ/SC CJPF/SC			CJV/NA CJPJ/NC CJPF/NC
	Over diam.mm		Approx. weight	Over diam.mm		Approx. weight
	Norn.	Max	Approx. weight	Norn.	Max	Approx. weight
1*1	4.7	6.3	43	5.2	6.8	49
1*1.5	5	6.6	50	5.5	7.1	56
1*2.5	5.4	7	62	5.9	7.5	69
1*4	5.9	7.5	80	6.4	8	87
1*6	6.5	8.1	103	7	8.6	110
1*16	8.4	10	215	8.9	10.5	225
1*25	10.2	11.8	316	10.7	12.3	334
1*35	11.5	13.1	421	12	13.6	433
1*50	13.1	14.7	567	13.6	15.2	581
1*70	15.3	16.9	773	15.8	17.4	789
1*95	17.2	18.8	1056	17.7	19.3	1074
1*120	19.1	20.7	1307	19.6	21.2	1327
1*150	21.2	22.8	1590	21.7	23.3	1612
1*185	23.5	25.1	1957	24	25.6	1995
1*240	26.4	28	2531	26.9	28.5	2558
1*300	29.2	30.8	3138	29.7	31.3	3168
2*1	8	9.8	86	9	10.8	105
2*1.5	8.6	10.4	108	9.6	11.4	122
2*2.5	9.6	11.4	135	10.6	12.4	152
2*4	10.6	12.4	176	11.6	13.4	200
2*6	11.8	13.6	235	12.8	14.6	255
2*10	13.8	15.6	347	14.8	16.6	371
2*16	16	17.8	489	17	18.8	525
2*25	19.4	21.2	746	20.4	22.2	779
2*35	22.2	24	988	23.2	25	1025
2*50	25.2	27	1320	26.2	28	1362
2*70	29.4	31.2	1818	30.4	32.2	1883
2*95	33.6	35.4	2478	34.6	36.4	2533
2*120	37.2	39	3057	38.2	40	3139
3*1	8.4	10.2	106	9.5	11.3	123
3*1.5	9.1	10.9	128	10.1	12	146
3*2.5	10.1	12	164	11.2	13	190
3*4	11.2	13	225	12.3	14.1	247
3*6	12.7	14.5	296	13.8	15.6	320
3*10	14.6	16.5	448	15.7	17.5	476
3*16	17	18.8	653	18.1	19.9	685
3*25	20.6	22.5	987	21.7	23.5	1039
3*35	23.6	25.5	1314	24.7	26.5	1373
3*50	27	28.9	1770	28.1	30	1836
3*70	31.6	33.4	2468	32.6	34.5	2546
3*95	35.8	37.7	3382	36.9	38.8	3449
3*120	39.9	41.7	4180	41	42.8	4278
3*150	44.2	46	5111	45.3	47.1	5193
3*185	49.6	51.4	6362	50.6	52.5	6453
4*1	9.1	11	126	10.3	12.2	146
5*1	10.1	12	147	11.4	13.4	179
7*1	10.9	12.9	178	12.4	14.4	214
10*1	13.8	16	262	15.8	18	305
12*1	14.2	16.4	293	16.3	18.5	342
14*1	14.9	17.2	327	17.1	19.4	392
16*1	15.9	18.2	364	18.2	20.6	437
19*1	16.7	19.1	419	19.2	21.6	489
24*1	19.6	22.2	529	22.6	25.2	632
27*1	20	22.6	587	23.1	25.7	701
30*1	20.7	23.4	650	23.9	26.6	774
33*1	21.7	24.4	681	25	27.8	827
37*1	22.5	25.3	747	26	28.8	889
4*1.5	10	11.9	153	11.2	13.1	182
5*1.5	10.9	12.8	180	12.3	14.2	214
7*1.5	11.8	13.8	228	13.3	15.3	259
10*1.5	15	17.2	325	17	19.2	381
12*1.5	15.7	17.9	366	17.7	20	429
14*1.5	16.4	18.7	421	18.6	20.9	481
16*1.5	17.3	19.6	470	19.7	22	549
19*1.5	18.4	20.8	530	20.9	23.3	618
24*1.5	21.6	24.2	670	24.6	27.2	781
27*1.5	22.1	24.7	758	25.1	27.8	884
30*1.5	22.8	25.5	839	26	28.7	976
33*1.5	23.9	26.6	885	27.3	30	1030
37*1.5	24.8	27.6	971	28.3	31.1	1128
4*2.5	11	12.9	207	12.2	14.1	232
7*2.5	13.2	15.2	305	14.7	16.7	349
10*2.5	16.8	19	446	18.8	21	498
12*2.5	17.3	19.6	507	19.4	21.6	578
14*2.5	18.4	20.7	573	20.6	22.9	652
16*2.5	19.4	21.7	654	21.7	24.1	730
19*2.5	20.4	22.8	743	22.9	25.3	842
24*2.5	24.2	26.8	938	27.2	29.8	1063
27*2.5	24.7	27.4	1059	27.8	30.4	1200
30*2.5	25.6	28.3	1172	28.8	31.5	1326
33*2.5	26.8	29.5	1246	30.1	32.9	1409
37*2.5	27.8	30.6	1370	31.3	34.1	1546
Note: Data above only for reference.confirmation needed by our technical department. We reserve the right to alter all information without notice.

Technical Characteristics

The rated voltage of the cable is 0.6/1(1.2)kV
The allowable long-term operating temperature of the cable conductor is 90°C
The flame retardant performance conforms to IEC60332-1-2 or IEC60332-3-22 standards
The fire resistance conforms to IEC60331-21 standard
The minimum bending radius of a single-core cable is 6 times the diameter of the cable

Identification

Insulated core: white insulated with black numbering
Sheath printed with factory name, type, voltage, specification, length mark, etc.

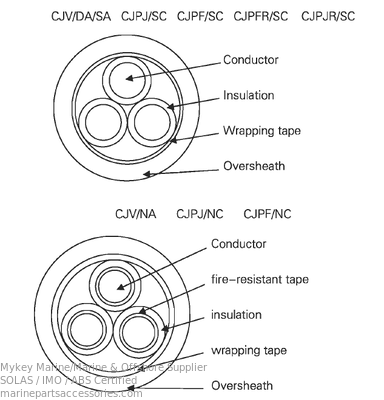

Structure Diagram
