Fireproof 0.6/1kV Marine Power Cables XLPE Insulated Marine Power Wire

Brand Name:	JIANGNAN CABLE
Model Number:	CJ82/DA/SA CJ85/SC CJ86/SC CJ82/NA CJ85/NC CJ86/NC
MOQ:	100 Meter
Price:	US$1.00~US$20.00
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CCS BV

Product Name:

Marine Power Cable

Rated Voltage:

0.6/1kV

Application:

Electric Power And Lighting Equipment In Water Structures Such As Cabins And Offshore Oil Platforms

Allowable Long-term Operating Temperature:

90℃

Fire-resistance:

Fireproof

Minimum Bending Radius:

6 Times The Diameter Of The Cable

Packaging Details:

DRUM

Highlight:

Fireproof 0.6/1kV Marine Power Cables

0.6/1kV XLPE Marine Power Wire

XLPE Insulated Marine Power Wire

Product Description

CJ82/DA/SA CJ82/NA 0.6/1kV Rated Voltage XLPE Insulated Marine Power Cable with Flame Retardant and 90°C Operating Temperature

0.6/1kV Rated Voltage XLPE Insulated Marine Power Cable

Executive Standard

This product complies with IEC60092-353 standard.

Cable Categories and Types

CJV/DA/SA/NA: XLPE insulated polyvinyl chloride sheathed marine power cable DA SA NA type
CJV80/DA/SA/NA: XLPE insulated polyvinyl chloride inner sheathed copper wire braided armoring power cable for shipment type DA SA NA
CJV90/DA/SA/NA: XLPE insulated polyvinyl chloride inner sheathed steel wire braided armoring power cable for shipment type DA SA NA
CJV82/DA/SA/NA: XLPE insulated PVC inner sheathed copper wire braided armoring PVC outer sheathed marine power cable DA SA NA type
CJV92/DA/SA/NA: XLPE insulated PVC inner sheathed wire braided armoring PVC outer sheathed marine power cable DA SA NA type
CJPJ/SC/NC: XLPE insulated crosslinked polyolefin outer sheathed marine power cable SC NC type
CJPJ80/SC/NC: XLPE insulated XLPE inner sheathed copper wire braided armoring power cable for marine type SC NC
CJPJ90/SC/NC: XLPE insulated crosslinked polyolefin inner sheathed steel wire braided armoring power cable for marine type SC NC
CJPJ85/SC/NC: XLPE insulated crosslinked polyolefin copper wire braided armoring power cable for marine type SC NC
CJPJ95/SC/NC: XLPE insulated crosslinked polyolefin inner sheathed wire braided armoring crosslinked polyolefin outer sheathed marine power cable SC NC type
CJPF/SC/NC: XLPE insulated polyolefin sheathed marine power cable SC NC type
CJPF80/SC/NC: XLPE insulated polyolefin inner sheathed copper wire braided armoring power cable for marine type SC NC
CJPF90/SC/NC: XLPE insulated polyolefin inner sheathed steel wire braided armoring marine power cable SC NC type
CJPF86/SC/NC: XLPE insulated polyolefin inner sheathed copper wire braided armored polyolefin outer sheathed marine power cable SC NC type
CJPF96/SC/NC: XLPE insulated polyolefin inner sheathed wire braided armored polyolefin outer sheathed marine power cable SC NC type
CJPJR/SC: XLPE insulated crosslinked polyolefin sheathed marine power flexible cable type SC
CJPFR/SC: XLPE insulated polyolefin sheathed marine power flexible cable type SC
CJ82/DA/SA/NA: XLPE insulated copper wire braided armoring PVC sheathed marine power cable SC NC type
CJ92/DA/SA/NA: XLPE insulated wire braided armoring polyvinyl chloride sheathed marine power cable SC NC type
CJ85/SC/NC: XLPE insulated copper wire braided armoring crosslinked polyolefin outer sheathed marine power cable SC NC type
CJ95/SC/NC: XLPE insulated wire braided armoring crosslinked polyolefin outer sheathed marine power cable SC NC type
CJ86/SC/NC: XLPE insulated copper wire braided armoring polyolefin outer sheathed marine power cable SC NC type
CJ96/SC/NC: XLPE insulated wire braided armoring polyolefin outer sheathed marine power cable SC NC type

Product Application

This product is suitable for electric power and lighting equipment in water structures such as cabins and offshore oil platforms.

Cable Parameters

Rated Voltage of 0.6/1kV
No.of cores x sectional area	CJ82/DA/SA CJ85/SC CJ86/SC			CJ82/NA CJ85/NC CJ86/NC
	Over diam,mm		Approx weight	Over diam,mm		Approx weight
	Norn.	Max	Type 82/85/86	Norn.	Max	Type 82/85/86
1*1	5.5	7.1	51	6	7.6	57
1*1.5	5.8	7.4	58	6.3	7.9	65
1*2.5	6.2	7.8	71	6.7	8.3	82
1*4	6.7	8.3	94	7.2	8.8	102
1*6	7.3	8.9	118	7.8	9.4	127
1*16	9.4	11	237	9.9	11.5	247
1*25	11	12.6	342	11.5	13.1	361
1*35	12.5	14.1	450	13	14.6	464
1*50	13.9	15.5	600	14.4	16	616
1*70	16.2	17.8	822	16.7	18.3	851
1*95	18.3	19.9	1115	19	20.6	1134
1*120	20.4	22	1398	20.9	22.5	1420
1*150	22.3	23.9	1691	23.4	25	1715
1*185	25.4	27	2116	25.9	27.5	2143
1*240	28.3	29.9	2693	29	30.6	2723
1*300	31.3	32.9	3356	31.8	33.4	3390
2*1	8.2	10	105	9.2	11	126
2*1.5	9	10.8	123	10	11.8	145
2*2.5	9.8	11.6	158	10.8	12.6	177
2*4	10.8	12.6	201	11.8	13.6	228
2*6	12.2	14	264	13.2	15	286
2*10	14	15.8	382	15	16.8	407
2*16	16.3	18.1	551	17.3	19.1	581
2*25	20.1	21.9	836	21.1	22.9	873
2*35	23.3	25.1	1090	24.3	26.1	1163
2*50	26.5	28.3	1470	27.5	29.3	1518
2*70	30.9	32.7	2052	31.9	33.7	2106
2*95	34.9	36.7	2725	35.9	37.7	2806
2*120	38.5	40.3	3352	39.5	41.3	3419
3*1	8.8	10.6	121	9.9	11.7	145
3*1.5	9.4	11.3	150	10.5	12.3	170
3*2.5	10.3	12.1	188	11.4	13.2	210
3*4	11.6	13.4	253	12.7	14.5	277
3*6	12.9	14.7	327	14	15.8	362
3*10	15	16.8	485	16.2	18	515
3*16	17.5	19.3	709	18.8	20.6	745
3*25	21.3	23.2	1083	23	24.8	1140
3*35	24.9	26.8	1456	26	27.8	1521
3*50	28.1	30	1948	29.4	31.3	2042
3*70	33.1	34.9	2700	34.1	36	2786
3*95	37.3	39.2	3647	38.4	40.3	3743
3*120	41.4	43.2	4498	42.5	44.3	4579
3*150	45.7	47.5	5465	47	48.8	5615
3*185	51.3	53.1	6824	52.3	54.2	6925
4*1	9.5	11.4	149	10.7	12.6	171
5*1	10.3	12.2	172	11.6	13.6	207
7*1	11.1	13.1	205	12.6	14.6	244
10*1	14	16.2	297	16.1	18.3	344
12*1	14.6	16.8	329	16.8	19	405
14*1	15.4	17.7	365	17.6	19.9	449
16*1	16.2	18.5	427	18.7	21.1	497
19*1	17.2	19.6	475	19.9	22.3	590
24*1	20.3	22.9	621	23.9	26.5	768
27*1	20.7	23.3	701	24.4	27	863
30*1	21.4	24.1	786	25.2	27.9	927
33*1	22.8	25.5	797	26.1	28.9	977
37*1	23.8	26.6	884	27.5	30.3	1045
4*1.5	10.2	12.1	177	11.4	13.3	202
5*1.5	11.1	13	207	12.4	14.4	244
7*1.5	12.2	14.2	257	13.7	15.7	300
10*1.5	15.5	17.7	363	17.5	19.7	437
12*1.5	16	18.2	418	18.2	20.5	487
14*1.5	16.9	19.2	476	19.3	21.6	567
16*1.5	17.8	20.1	527	20.4	22.7	640
19*1.5	18.9	21.3	616	21.4	23.8	715
24*1.5	22.7	25.3	784	25.7	28.3	943
27*1.5	23.2	25.8	901	26.2	28.9	1044
30*1.5	24.1	26.8	988	27.5	30.2	1180
33*1.5	25	27.7	1029	28.6	31.3	1209
37*1.5	25.9	28.7	1121	29.6	32.4	1336
4*2.5	11.2	13.1	227	12.4	14.3	262
5*2.5	12.4	14.3	276	13.7	15.7	317
7*2.5	13.4	15.4	346	14.9	16.9	385
10*2.5	17.3	19.5	502	19.5	21.7	595
12*2.5	17.8	20.1	565	20.1	22.3	668
14*2.5	18.9	21.2	658	21.1	23.4	747
16*2.5	20.1	22.4	744	23	25.4	844
19*2.5	21.1	23.5	839	24.2	26.6	979
24*2.5	25.3	27.9	1098	28.5	31.1	1242
27*2.5	25.8	28.5	1219	29.1	31.7	1435
30*2.5	26.9	29.6	1376	30.3	33	1552
33*2.5	28.1	30.8	1425	31.4	34.2	1647
37*2.5	29.3	32.1	1576	32.8	35.6	1776
Note: Data above only for reference.confirmation needed by our technical department. We reserve the right to alter all information without notice.

Technical Characteristics

The rated voltage of the cable is 0.6/1(1.2)kV
The allowable long-term operating temperature of the cable conductor is 90℃
The flame retardant performance conforms to IEC60332-1-2 or IEC60332-3-22 standards
The fire resistance conforms to IEC60331-21 standard
The minimum bending radius of a single-core cable is 6 times the diameter of the cable

Identification

Insulated core: white insulated with black numbering
Sheath printed with factory name, type, voltage, specification, length mark, etc.

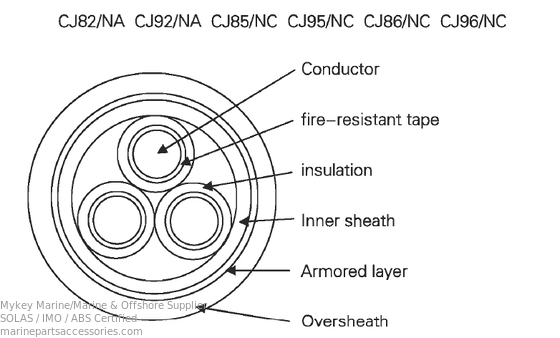

Structure Diagram
