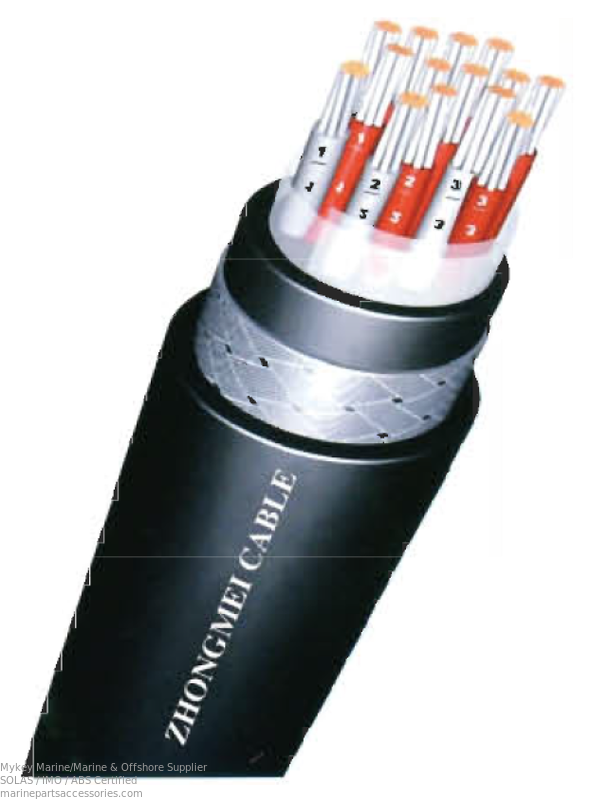

XLPE Insulated Marine Communication Cable Wire For Boat Electronics

XLPE Insulated Marine Communication Cable Wire For Boat Electronics

XLPE Insulated Marine Communication Cable Wire For Boat Electronics

Brand Name: JIANGNAN CABLE
Model Number: CHJV80/DA/SA、CHJPJ80/SC、CHJPF80/SC、CHJV90/DA/SA、CHJPJ90/SC、CHJPF90/SC CHJV80/NA、CHJPJ80/NC、CHJPF80/NC、CHJV90/NA、CHJPJ90/NC、CHJPF90/NC
MOQ: 100 Meter
Price: US$1.00~US$20.00
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CCS BV
Certificate:
BV CCS Etc
Screen Type:
Core Or Pair Screen
Oversheath:
Crosslinked Polyolefin
Combustion Characteristic:
Bunched Flame Retardant Class A
Cabel Type:
Marine Communication Cable
Conductor:
Copper Or Tinned Copper
Packaging Details:
DRUM
Highlight:

XLPE Insulated Marine Communication Cable

,

Communication Wire For Boat Electronics

,

XLPE Wire For Boat Electronics

Product Description
Crosslinked Polyethylene Insulated Marine Communication Cable at Rated Voltage of 150/250V
Executive Standard
This product implements: IEC60092-376 standard.
Cable Categories and Types
CHJV/DA/SA/NA: XLPE insulated PVC sheathed marine communication cable DA SA NA type
CHJVP/DA/SA/NA: XLPE insulated pair twisted individual screen polyvinyl chloride sheathed marine communication cable DA SA NA type
CHJV80/DASA/NA: XLPE insulated polyvinyl chloride inner sheathed copper wire braided armoring communication cable for marine type DA SANA
CHJVP80/DAVSA/NA: XLPEinsulated pai twisted individual screen polyviny choride inner sheathed copper wire braided amored for marine communication cable type DASA NA
CHJV90/DA/SA/NA: XLPE insulated polyvinyl chloride inner sheathed steel wire braided armored communication cable for marine type DA SA NA
CHJVP90/DA/SA/NA: XLPE insulated pai twisted indvidual screen polyviny chorideinner sheathed stel wre braided armored for marine communiction cable type DASA NA
CHJ82/DA/SA/NA: XLPE insulated copper wire braided armoring PVC sheathed marine communication cable DA SA NA type
CHJV82/DASA/NA: XLPE insulated PVCinner sheathed copper wire braided armoring PVC outer sheathed marine communication cable DA SA NA type
CHJP82/DASA/NA: XLPE insulated pair twisted individual screen copper wire braided armoring PVC sheathed marine communication cable DA SANA type
CHJVP82/DASA/NA: XLPE insulated twisted individual screen PVCinner sheathed copper wire braided amoning PVC outer sheathed marine communication cable
CHJV92/DASA/NA: XLPE insulated PVCinner sheathed wire braided armoring PVC outer sheathed Marine communication cable DASA NA type
CHJVP92/DA/SA/NA: XLPEinsulated pair twisted individual screen PVC inner sheathed wire braided armoring PVCouter sheathed marine communication cable DASA NA type
CHJPJ/SC/NC: XLPE insulated crosslinked polyolefin outer sheathed marine communication cable SC NC type
CHJPJP/SC/NC: Cross-Iinked polyethylene insulated pai twisted individual screen cross-linked polyolefin outer sheathed marine communication cable
CHJPJ80/SC/NC: Cross-lnked polethylene inslated pai twisted individual screen cros-lnked polyolefininner sheathed copper wire braided armored marine communication cable
CHJPJP80/SC/NC: CrosS-linked polyethylene insulated pair twisted indvidual scren cross-Inked polyolefn inne sheathe operwie braided armored marine commuicafion cable
CHJPJ90/SC/NC: Cross-inked polyethylene insulated cross-linked polyolefin inner sheathed steel wire braided armored marine communication cable Type SC NC
CHJPJP90/SC/NC: Cross-Inked polyethylene insulated pair twisted individual screencros-Inked polyolefi inner sheathed stel wire braided armored marine communicafion cable Type SC NC
CHJ85/SC/NC: Cross-inked polyethylene insulated copper wire braided armored cross-inked polyolefin outer sheathed marine communication cable
CHJP85/SC/NC: Cros linked polyethylen islatedpair twisted idvidual scren coper wire braided armored cros-Iinked polyolefn outer sheathed marne communication cable
CHJPJ85/SC/NC: XLPE insulated croslinked poyolefininne sheathed cope wire braded amoning roslinked oyolefi outer sheated manine comunictoncable
CHJPJP85/SC/NC: XLPE islated pr wistedindida scren cos-nked poycefinimnershathed oper we braded rmoing uos-Inked poyolefi outershesthe main commuicationcble
CHJPJ95/SC/NC: XLPEinsulated cToss-Inked polyolefin inner sheathed stel wire braided armoning coss-Inked poyolefin outer sheathed manne communication cable
CHJPJP95/SC/NC: XLPE islated pa twstelindidua scren cos-Iikedpobolfi ime shath ste wie brade armurn crs-Inked poydefi nutershathe manine comunicaton cabe SCNC type
CHJPF/SC/NC: XLPE insulated polyolefin outer sheathed marine communication cable SC NC type
CHJPFP/SC/NC: XLPE insulated pair twisted individual screen polyolefin outer sheathed marine communication cable SC NC type
CHJPF80/SC/NC: XLPEinsulated polyolefin inner sheath copper wire braided armoring marine communication cable SC NC type
CHJPFP80/SC/NC: XLPE insulated pair twisted individual screen polyolefin inner sheath copper wire braided armoring marine communication cable SCNCtype
CHJPF90/SC/NC: XLPE insulated pair twisted indvidual screen polyolefininer sheath steel wire braided amoning mane communication cable SC NC type
CHJPFP90/SC/NC: XLPE insulated pai twisted indvidual screen polyolefininer sheath stel wire braided armoring marine communication cable SC NC type
CHJ86/SC/NC: XLPE insulated copper wire braided armoring polyolefin outer sheathed marine communication cable SC NC type
CHJP86/SC/NC: XLPE insulated ai twisted individual screen copper wire braided armoring polyolefin sheathed marine communication cable SC NC type
CHJPF86/SC/NC: XLPE insulated polyolefin inner sheathed copper wire braided amoring polyolefin outer sheathed manne communication cable SC NC type
CHJPFP86/SC/NC: XLPEinsulation pir twise indidal scren pobydefn ne sheathed oper wie braided armoingpodyolefi outer sheathe main ommunication cable SCNC type
CHJPF96/SC/NC: XLPE insulated polyolefin inner sheathed wire braided amoring polyolefin outer sheathed manine communication cable SCNC type
CHJPFP96/SC/NC: XLPEislated ar twsedindvidual sreen pdyolefininersheathed wire braided amoing polyolefi outer shathed marine communication cable SCNC type
Product Application

This product is suitable for signal transmission and control systems in telecommunications,electronic computers and information processing equipment.

Cable Parameters
   Crosslinked Polyethylene Insulated Marine Communication Cable at Rated Voltage of 150/250V
No.of cores
×sectional area		 CHJV80/DA/SA,CHJPJ80/SC,CHJPF80/SC,CHJV90/DA/SA,CHJPJ90/SC,CHJPF90/SC  CHJV80/NA,CHJPJ80/NC,CHJPF80/NC,CHJV90/NA,CHJPJ90/NC,CHJPF90/NC
Over diam.mm Approx.weight Over diam.mm Approx.weight
 No. ×mm² Nom. Max TYPE 80 TYPE 90 Nom. Max TYPE 80 TYPE 90
  1*2*0.5 6.7  9.3  76  73  7.7  10.3  88  85
  2*2*0.5 9.1  12.2  145  141  10.9  14.0  194  190
  3*2*0.5 9.5  12.7  161  156  11.6  14.9  217  212
  4*2*0.5 10.5  13.9  186  181  12.6  16.0  250  245
  5*2*0.5 11.5  15.1  222  217  14.1  17.7  304  297
  7*2*0.5 12.4  16.2  264  258  15.3  19.0  345  337
 10*2*0.5 15.8  20.2  395  383  19.3  23.7  533  519
 12*2*0.5 16.2  20.8  438  426  19.9  24.4  570  556
 14*2*0.5 17.2  21.9  481  468  21.1  25.8  625  610
 16*2*0.5 18.0  23.0  528  515  22.3  27.3  706  690
 19*2*0.5 18.9  24.1  588  574  23.7  28.8  792  771
 24*2*0.5 22.3  28.1  768  747  27.7  33.5  1008  983
 27*2*0.5 22.8  28.7  861  839  28.3  34.2  1125  1098
 30*2*0.5 23.8  29.8  921  897  29.3  35.3  1201  1173
 33*2*0.5 24.6  30.9  970  947  30.6  36.8  1283  1255
 37*2*0.5 25.5  32.0  1036  1012  31.7  38.2  1322  1294
 1*2*0.75 7.5  10.1  91  87  8.5  11.1  103  100
 2*2*0.75 10.6  13.7  183  179  12.4  15.5  250  245
 3*2*0.75 11.1  14.4  211  207  13.1  16.3  281  274
 4*2*0.75 12.2  15.6  246  241  14.6  18.0  336  328
 5*2*0.75 13.3  16.9  298  291  15.9  19.5  415  404
 7*2*0.75 14.8  18.5  351  343  17.4  21.2  471  458
 10*2*0.75 18.6  23.1  523  509  22.3  26.8  685  669
 12*2*0.75 19.2  23.7  581  567  23.0  27.6  735  719
 14*2*0.75 20.3  25.1  640  625  24.4  29.1  844  823
 16*2*0.75 21.6  26.5  721  705  25.7  30.6  952  930
 19*2*0.75 22.7  27.8  821  800  27.2  32.3  1023  999
24*2*0.75 26.7  32.5  1042  1018  31.9  37.7  1302  1274
27*2*0.75 27.3  33.2  1167  1140  32.6  38.5  1475  1444
30*2*0.75 28.2  34.3  1250  1222  33.9  40.0  1578  1546
33*2*0.75 29.5  35.7  1325  1298  35.2  41.5  1695  1664
37*2*0.75 30.6  37.0  1392  1364  37.0  43.4  1747  1715
1*2*1 7.9  10.5  100  97  8.9  11.5  113  110
2*2*1 11.2  14.4  215  210  13.0  16.2  291  284
3*2*1 12.0  15.2  241  236  14.2  17.4  316  309
4*2*1 13.0  16.4  294  287  15.4  18.8  380  372
5*2*1 14.6  18.1  353  346  16.8  20.4  470  458
7*2*1 15.8  19.5  430  419  18.4  22.2  535  522
10*2*1 20.1  24.6  619  605  23.9  28.3  814  794
12*2*1 20.7  25.3  676  661  24.6  29.2  877  856
14*2*1 22.0  26.7  763  747  25.8  30.6  984  961
16*2*1 23.1  28.0  879  858  27.4  32.3  1111  1087
19*2*1 24.5  29.6  979  957  28.9  34.0  1198  1173
24*2*1 28.7  34.5  1241  1215  34.1  39.9  1523  1493
27*2*1 29.3  35.2  1389  1361  34.8  40.7  1699  1666
30*2*1 30.6  36.6  1492  1462  36.5  42.5  1903  1862
33*2*1 31.7  37.9  1588  1559  37.9  44.1  1990  1957
37*2*1 33.1  39.5  1673  1643  39.3  45.7  2115  2073
1*2*1.5 8.9  11.5  128  124  9.9  12.5  142  138
2*2*1.5 13.0  16.2  287  280  15.1  18.2  377  369
3*2*1.5 14.2  17.4  323  316  16.0  19.2  434  423
4*2*1.5 15.4  18.8  414  403  17.6  21.0  519  507
5*2*1.5 17.0  20.6  496  484  19.2  22.8  611  598
7*2*1.5 18.4  22.2  573  559  21.1  24.9  697  682
10*2*1.5 23.9  28.3  862  841  27.4  31.8  1057  1033
12*2*1.5 24.6  29.2  960  938  28.2  32.8  1162  1137
14*2*1.5 26.0  30.8  1063  1040  29.9  34.6  1286  1260
16*2*1.5 27.4  32.3  1199  1174  31.5  36.4  1454  1426
19*2*1.5 29.1  34.2  1316  1290  33.4  38.5  1594  1564
24*2*1.5 34.1  39.9  1669  1638  39.7  45.4  2082  2040
27*2*1.5 34.8  40.7  1891  1857  40.5  46.4  2346  2300
30*2*1.5 36.5  42.5  2094  2052  42.2  48.3  2518  2470
33*2*1.5 37.9  44.1  2180  2145  43.8  50.1  2722  2675
37*2*1.5 39.5  45.9  2383  2340  45.7  52.2  2845  2796
  1*2*2.5 9.7  12.3  155  151  10.9  13.5  170  166
  2*2*2.5 14.8  17.9  367  359  16.4  19.5  484  473
  3*2*2.5 15.6  18.8  443  432  17.6  20.8  547  535
  4*2*2.5 17.2  20.6  539  526  19.2  22.6  646  633
  5*2*2.5 18.8  22.4  635  622  21.2  24.8  781  766
  7*2*2.5 20.6  24.4  759  745  23.5  27.3  901  885
10*2*2.5 26.7  31.2  1136  1112  30.2  34.7  1359  1332
12*2*2.5 27.6  32.1  1274  1250  31.2  35.8  1504  1476
14*2*2.5 29.2  33.9  1421  1395  33.0  37.8  1695  1666
16*2*2.5 30.7  35.7  1605  1578  34.8  39.8  1896  1866
19*2*2.5 32.6  37.7  1798  1769  37.1  42.3  2091  2059
24*2*2.5 38.7  44.5  2334  2293  43.8  49.6  2746  2700
27*2*2.5 39.5  45.4  2609  2563  45.0  50.9  3058  3008
30*2*2.5 41.1  47.2  2846  2799  46.7  52.7  3328  3275
33*2*2.5 42.7  49.0  3057  3011  48.7  54.9  3613  3562
37*2*2.5 44.5  51.0  3242  3194  51.2  57.6  3763  3709
Note:  Data above only for reference.confirmation needed by our technical department. We reserve the right to alter all information without notice.
Technical Characteristics
  • The rated AC voltage of the cable is 150/250V;
  • The allowable long-term operating temperature of the cable conductor is 90℃
  • The flame retardant performance of the cable conforms to IEC60332-1-2 or IEC60332-3-22 standards
  • The fire resistance conforms to IEC60331-21 standard
  • The minimum bending radius of the cable is 6 times the diameter of the cable
Identification
  • The insulated core is white and blue,with printing black digital identification;
  • The sheath is printed with the name of the manufacturer,type,voltage,specification,length mark, etc.

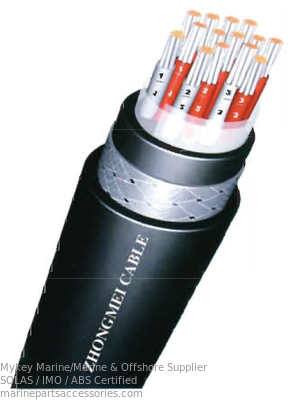

Structure Diagram
    XLPE Insulated Marine Communication Cable Wire For Boat Electronics 0 XLPE Insulated Marine Communication Cable Wire For Boat Electronics 1
Tags:

shipboard power cable

boat power cables

marine power wire

RELATED PRODUCTS
Flameproof Marine Control Cable CKEF82 DA SA Boat Motor Control Cables

Flameproof Marine Control Cable CKEF82 DA SA Boat Motor Control Cables

Chat Now
Crosslinked Polyethylene Insulated Marine Power Cable 8.7/15kV Electrical Wire For Boats

Crosslinked Polyethylene Insulated Marine Power Cable 8.7/15kV Electrical Wire For Boats

Chat Now
CJ92 CJ95 CJ96 Series Marine Power Cable Fireproof Boat Power Cable

CJ92 CJ95 CJ96 Series Marine Power Cable Fireproof Boat Power Cable

Chat Now
Fire Resistant Boat Cable Wire Tinned Copper Conductor Marine Cables

Fire Resistant Boat Cable Wire Tinned Copper Conductor Marine Cables

Chat Now
Flameproof Marine Communication Cable 150/250V Boat Electrical Wire

Flameproof Marine Communication Cable 150/250V Boat Electrical Wire

Chat Now
+86 15258895859
Quick link
Home About Us Products Cases News download video CONTACT US
Quick Contact

Address

No.196 Of LongPu Road,Fuyang district, Hangzhou City, ZheJiang Province 311400,China

Tel

86-15258895859

+86 15258895859
Our Newsletter
Subscribe to our newsletter for discounts and more.
Privacy Policy |  Sitemap  | China Good Quality Marine Ventilator Supplier. Copyright © 2009-2026 Hangzhou Fuyang Mykey Imp & Exp Co., Ltd. . All Rights Reserved.
