20.5mm-73mm B Type Buoy Shackle Boat Anchor Chain Shackle Customized

Brand Name:	ASAC
Model Number:	TO BE MENTIONED
MOQ:	10 PCS
Price:	US$50-80/PCS
Payment Terms:	T/T
Supply Ability:	10000PCS/YEAR

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ABS,BV,CCS,CR,DNV,LR,NK,RINA,RMRS,KR

Products Name:

BUOY SHACKLE(B)

Standard:

ISO9001,API-Q1/ISO14001,OHSAS18001andHSE/ISO50001

Usage:

Marine Anchoring

Surface Treatment:

Black Painted Or Customized Based On Clients' Requirement

Application:

Marine Ships

Size Range:

20.5-73mm

Packaging Details:

Plywood pallets/Wooden Box/PP ton bag

Highlight:

73mm B Type Buoy Shackle

20.5mm B Type Buoy Shackle

Boat Anchor Chain Shackle Customized

Product Description

High Performance ABS BV CCS Certified B Type Buoy Shackle for Marine Anchoring Size Range 20.5-73mm

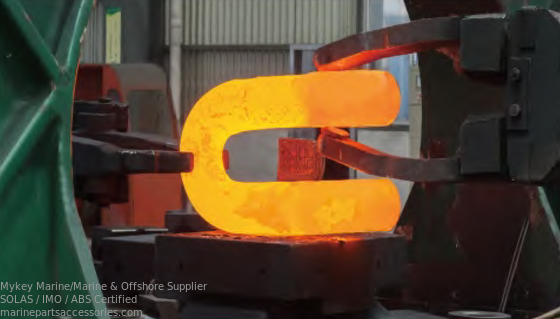

1.Production Capacity

(1) We have independently designed and manufactured an automatic production line for 26 large and medium-sized anchor chains, with 6 fully automatic continuous heat treatment lines and 4000T anchor chain tensile equipment for testing. These are used for the production of AM2 and AM3 marine anchor chains with diameters ranging from 12.5mm to 240mm, as well as R3, R3S, R4, R4S, R5 and R6 marine mooring chains. We have 7 automated forging production lines that can produce various shapes and specifications of accessories, with an annual output of nearly 30,000 tons. Among them, the 2500T hydraulic machine can produce accessories weighing up to 16T. The 8T die forging production line can produce marine engineering accessories weighing over 6T and with specifications over 240mm, which is at the world's leading level. We can also accept various non-standard product customization to meet the needs of different customers.

(2) Equipment List

Various sizes of chain units:3, 5,6,7,8,9,11, 16total 39 sets

Automatic chain heat treatment furnace: I5 sets

Automatic chain proof test machine:

2000/5000/12000/24000/40000kN total10 sets

Chain shot blasting machine: 8 sets

Bending/shaping machine: 6 sets

Heating furnace: 10 sets

Batch furnace(gas) and electric furnace: I5 sets

Machining equipment: 29 sets

Various types of cranes, big truck crane etc. 30t I5 sets

150 meters deep-water pier: I

Other equipments: over 300 sets

20.5mm-73mm B Type Buoy Shackle Boat Anchor Chain Shackle Customized 0

20.5mm-73mm B Type Buoy Shackle Boat Anchor Chain Shackle Customized 4

20.5mm-73mm B Type Buoy Shackle Boat Anchor Chain Shackle Customized 6

20.5mm-73mm B Type Buoy Shackle Boat Anchor Chain Shackle Customized 8

20.5mm-73mm B Type Buoy Shackle Boat Anchor Chain Shackle Customized 12

2. SPECIFICATIONS

d =nominal diameter of common link(mm)
SPECIFICATION OF BUOY SHACKLE(B)
Size	d	L±2.5%	B±2.5%	D±2.5%	B₃	h	d1	d2	B₂
20.5	31	203	80	61	161	44	82	33	142
22	33	218	86	66	176	47	112	38	152
24	36	237	94	72	195	51	112	38	166
26	39	257	102	78	215	55	112	41	180
28	42	277	110	84	235	59	112	45	194
30	45	296	118	90	274	64	144	48	208
32	48	316	126	96	294	68	144	51	222
34	52	336	130	102	313	72	144	54	234
36	54	356	142	107	332	76	144	57	250
38	56	375	150	113	372	80	188	60	262
40	58	384	150	118	375	83	188	62	266
42	59	394	150	125	379	85	188	63	268
44	62	401	150	130	396	88	188	66	274
46	64	410	150	136	401	90	188	69	278
48	67	429	160	141	421	92	200	72	294
50	70	440	160	148	430	95	200	75	300
52	73	460	170	153	450	98	213	78	316
54	76	472	170	161	457	101	213	81	322
56	78	491	180	165	477	104	225	84	336
58	81	503	180	172	492	108	225	87	342
60	84	513	180	177	500	I1l	225	90	348
62	87	525	180	184	508	115	225	93	354
64	90	556	200	189	537	119	250	96	380
66	92	566	200	195	545	122	250	99	384
68	95	576	200	200	552	125	250	102	390
70	98	586	200	207	570	127	250	105	396
73	103	601	200	215	582	132	250	109	406
76	106	615	200	223	594	137	250	113	412
78	109	625	200	230	606	140	250	116	418
81	112	641	200	242	624	146	250	119	424
84	115	655	200	251	639	152	250	122	430
87	118	670	200	259	648	158	250	127	436
90	122	684	200	267	660	164	250	130	444
92	125	700	210	272	695	168	275	133	460
95	129	722	220	282	717	174	275	138	478
97	132	738	220	288	732	177	275	141	484
100	136	760	220	297	754	183	275	145	492
102	139	776	220	303	768	186	275	148	498
105	143	798	220	312	790	192	275	152	506
107	145	814	220	318	805	195	275	155	510
III	151	844	220	330	834	203	275	161	522
114	155	867	240	339	876	208	300	165	550
117	159	890	240	348	898	214	300	169	558
120	163	912	240	356	920	219	300	174	566
122	166	928	240	362	935	223	300	177	572
124	168	943	240	368	950	226	300	180	576
127	173	966	250	377	982	232	313	184	596
130	177	988	250	386	1004	237	313	188	604
132	180	1003	250	392	1019	241	330	192	610
137	186	1041	250	407	1049	250	330	199	622
142	193	1079	250	422	1076	259	348	206	636
147	200	1117	250	437	1106	268	348	213	650
152	207	1155	270	451	1155	277	372	221	684
Testing Load sees "Testing load table"

3. Quality Inspection 20.5mm-73mm B Type Buoy Shackle Boat Anchor Chain Shackle Customized 13

20.5mm-73mm B Type Buoy Shackle Boat Anchor Chain Shackle Customized 14

20.5mm-73mm B Type Buoy Shackle Boat Anchor Chain Shackle Customized 16

4. Grade of Accessories

Grade/Size/Certificate of Anchor chain & Accessories
Product	Stud anchor chain	Studless anchor chain	Anchor Chain Accessories
Grade	M2,M3	M2,M3	M2,M3
Size	12.5-178mm	12.5-178mm	152mm
Certificate	ABS,BV,CCS,CR,DNV,LR,NK,RINA,RMRS		ABS,BV,CCS,CR,DNV,KR,LR,NK,RINA,RMRS

5. Testing Load Of Anchor Chain And Accessories

Testing Load Of Anchor Chain And Accessories (MS Units)
Diameter of Chain (mm)	Grade 2			Grade 3
	Tensile load PL	Breaking load BL		Tensile load PL		Breaking load BL
	KN	KN		KN		KN
12.5	66	92		92		132
14	82	116		116		165
16	107	150		150		216
17.5	127	179		179		256
19	150	211		211		301
20.5	175	244		244		349
22	200	280		280		401
24	237	332		332		476
26	278	389		389		556
28	321	449		449		642
30	368	514		514		735
32	417	583		583		833
34	468	655		655		937
36	523	732		732		1050
38	581	812		812		1160
40	640	896		896		1280
42	703	981		981		1400
44	769	1080		1080		1540
46	837	1170		1170		1680
48	908	1270		1270		1810
50	981	1370		370		1960
52	1060	1480		1480		2110
54	1140	1590		1590		2270
56	1220	1710		1710		2430
58	1290	1810		1810		2600
60	1380	1940		1940		2770
62	1470	2060		2060		2940
64	1560	2190		2190		3130
66	1660	2310		2310		3300
68	1750	2450		2450		3500
70	1840	2580		2580		3690
73	1990	2790		2790		3990
76	2150	3010		3010		4300
78	2260	3160		3160		4500
81	2410	3380		3380		4820
84	2580	3610		3610		5160
87	2750	3850		3850		5500
90	2920	4090		4090		5840
92	3040	4260		4260		6080
95	3230	4510		4510		6440
97	3340	4680		4680		6690
100	3530	4940		4940		7060
102	3660	5120		5120		7320
105	3850	5390		5390		7700
107	3980	5570		5570		7960
111	4250	5940		5940		8480
114	4440	6230		6230		8890
117	4650	6510		6510		9300
120	4850	6810		6810		9720
22	5000	7000		7000		9990
124	5140	7200		7200		10280
127	5350	7490		7490		10710
130	5570	7800		7800		\|140
132	5720	8000		8000		11420
137	6080	8510		8510		12160
142	6450	9030		9030		12910
147	6840	9560		9560		13660
152	7220	10100		10100		14430
157	7600	10640		10640		15200
162	7990	11180		11180		15980
165	LOAD(kN)		Grade 2		Grade 3
168
171
175
178	Tensile Strength PL		0.0098ld²(44-0.08d)		0.01373d²(44-0.08d)
180
182
185
188	Breaking load BL		0.01373d²(44-0.08d)		0.01961d²(44-0.08d)
191
194
197
Mark:The real loading data shall subject to the formula calculation.
